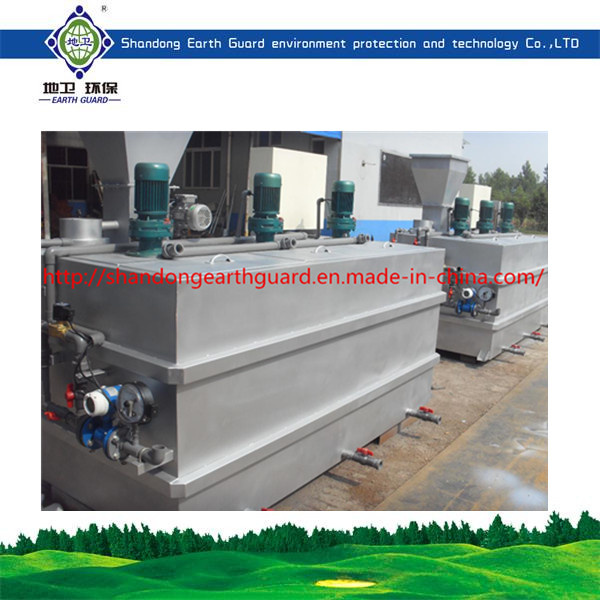

Qjy Series Automatic Flocculant Preparation System
Product Specifications
| Prod Model: |
QJY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Customized (Green, Blue or Grey) |
| Material: |
Carbon Steel or Stainless Steel |
| Quantity Of Sludge Treatment: |
Customized |
| Name: |
Qjy Series Automatic Flocculant Preparation System |
| Brand: |
Earth Guard |
| Price: |
Factory Price |
| Treat Method: |
Combined Treatment |
| Payment: |
T/T, L/C |
| Usage For: |
Industrial |
| Packaging Detail: |
Designed According to The Customer's Needs |
Product Description
We "Earth Guard" specializes in wastewater treatment equipment,
dissolved air flotation machine,buried sewage treatment machine,
sludge dehydrating machine,mud scrapers.
General
This system is designed according to characteristics of condensation
polymer reagent that is difficult to dissolve,easy to agglomerate,and
easy to coagulate after long term exposure to air and it solves the problems of using conventional
soluble medicine as artificial feeding wastes manpower and causes the
cured because of imprecise dosage and uneven adding.
This system is an intelligent, automatic, continuous integration of flocculant dissolution of coordination
and administration device, solution is in the range of 0-4000 liters / h, and the concentration is 0.1%-0.5%.
Main features
1.Full automatic control and automatic operation by intelligent instrument
that saves labor.
2.The parts in contact with the medium used engineering plastics and
stainless steel with excellent corrosion resistance.
3.Solid pharmaceutical prepared by dry powder feeding with accurate
and adjustable dosage that ensures stable reagent ratios.
4.The control box is provided with fault alarm, and it can makean alarm,
automatic manual switch, single machine stop, system
stop according to different situations to ensure the safe operation
of the equipment.
5.The whole equipment using the three sloted overflow typed solution operating system, so that the equipment has the advantages of simple structure, small volume, convenient to install and it is suitable for the process for dissolving and continuous reagent addition.
6.System uses the multi boxes to ensure the thorough dispersion and curing.
Working principles
Dry powder flocculant goes from the screw propeller into the premixer
and premixes with water , then wetted material goes into a mixing tank
for dilution and is prepared according to the requirements of
concentration ;
If the flocculant is liquid, it is directly added in the mixing tank by screw pump. In the process of preparation,
if the water changes, then the flocculant dosing device automatically
follows the change of water flow so as to guarantee the
concentration of the prepared solution unchanged in the whole process
of the work.
Water and solid powder dosage must be adjusted to equal the dosing
pump output ratio, otherwise it can appear shortageof dosage reserve
or overflowing phenomenon of liquid filled.Solutions prepared go from
mixing tank by slaking tank again into the storage tank, and when the
liquid level of storage tank is high, the preparation process stops
automatically,and when the solution down to middle liquid level,
It automatically restarts the blending process. Mixing tank and
curing tank are arranged wirh helical blade stirrer to fully guarantee
the dilution and ageing of flocculant.In addition, the liquid level signal
of storage slot can be used to control the two seecondary dilution and the start and stop of dding process.
Main parameter
type |
capacity
[l/h] |
power feeding tank capacity
(L) |
dilute with water
[l/h] |
Dilution water pressure
[bar] |
Dry powder dosage
[l/h] |
motor
[kw] |
QJY-1000 |
1000 |
100 |
1000 |
3~5 |
0.5~5 |
0.55×2+0.37 |
QJY-1500 |
1500 |
100 |
1500 |
0.5~5 |
0.55×2+0.37 |
QJY-2000 |
2000 |
100 |
2000 |
0.5~5 |
0.55×2+0.37 |
QJY-2500 |
2500 |
150 |
2500 |
0.5~5 |
0.55×2+0.37 |
QJY-3000 |
3000 |
150 |
3000 |
1~10 |
0.55×2+0.37 |
QJY-3500 |
3500 |
150 |
3500 |
1~10 |
0.75×2+0.55 |
QJY-4000 |
4000 |
150 |
4000 |
1~10 |
0.75×2+0.55 |
QJY-4500 |
4500 |
200 |
4500 |
1~10 |
0.75×2+0.55 |
QJY-5000 |
5000 |
200 |
5000 |
1~10 |
0.75×2+0.75 |
QJY-5500 |
5500 |
200 |
5500 |
1~20 |
0.75×2+0.75 |
QJY-6000 |
6000 |
250 |
6000 |
1~20 |
0.75×2+0.75 |
QJY-6500 |
6500 |
250 |
6500 |
1~20 |
1.1×2+0.75 |
QJY-7000 |
7000 |
250 |
7000 |
1~20 |
1.1×2+0.75 |
QJY-7500 |
7500 |
250 |
7500 |
1~20 |
1.1×2+0.75 |
QJY-8000 |
8000 |
250 |
8000 |
1~20 |
1.5×2+0.75 |
QJY-8500 |
8500 |
250 |
8500 |
1~20 |
1.5×2+0.75 |
QJY-9000 |
9000 |
250 |
9000 |
1~20 |
1.5×2+0.75 |
Our company
We "Earth Guard" specializes in wastewater treatment equipment, dissolved air flotation machine,buried sewage treatment machine, sludge dehydrating machine,mud scrapers.
Over the years we have provided a large number of quality products and services for domestic and international environment engineerings in chemical,food, textile, electric power, metallurgy,petroleum, coal.
We strictly follow the the philosophy of "life -oriented, credibility is the gold" First person and then the idea of doing things to promise to provide customers with high-quality products and good services.
Qualifications and certificate
Our Sevices
If you have any questions about our product or our company,please feel free to email me or chat with me through Trademanager.
Our earth, our world,our earth guard strives to make the world much cleaner,let us hand in hand to make the the world a better place to be.
Our transportation
FAQ
1)Q:How about your company?
A:We are a factory that specializes in production and design of
wastewater treatment equipments for more than 10 years.
2)Q:What is your address? How can I pay you a visit?
A:Our factory is located in Qiaozhuang industrial park,206
national street,Zhucheng city,Weifang,Shandong Provice,China.
It is 2 hours away from Qingdao international airport and we
can pick you up from there if necessary.Welcone to China,
welcome to our factory.
3)Q:Do you have any certificates?
A:Yes,we have ISO,SGS cerficates.
4)Q:How to buy your ideal products ?
A:You can provide us your water sources ,water quality,
water flow rates and ground area (connect us for more details )
5)Q:How to pay ?
A:TT and L/C are acceptable and TT will be more
appreciated. 30% deposit before producing, 70% balance
before loading by TT
6)Q:What is the delivery time ?
A:It depends on the quantities,generally speaking,
the delivery time will be within 4 to 5 weeks.
7)Q:How to pack the products ?
A:We use standard package.if you have special package
requirements,we will pack as required.
8)Q:How to keep your equipments from corrosion?
A:we use the world famous paint,like Sigmacoatings,
painBowETc,what's more ,we paint strictly according to the
standard requirments .
9)Q:How do you manufacture your equipment ?
A:We use laser cutting ,automatic welding ,CNC cutting
and bending to manufacture the equipment
10)Q:.How to install after the equipments arriving destination ?
A:We will provide detailed illustrations to you,if necessary
,we will send technicians to help you,however,the visafee,air
tickets ,accommodation wages will be paid by buyers.
Shandong earth guard environment protection and technology Co., Ltd referred as " the Guardian green" is a professional technological enterprises in environment equipments production and sales. Not only do we have a strong capacity in production and a complete history of more than ten years in equipments research and production services of environment protection, but also has a high-quality team with integrity dedicated to the cause of environment protection.
"the Guardian green" poses in the building of a integrated equipment business which specializes in the development, production, installation, commissioning, operation and service of environment protection products.
Our goals are striving to make high-quality, fine and trustworthy products that can compete with foreign brands; Let the customers enjoy the high-quality service and high quality products at the same save a lot of foreign exchanges.
Our company can provide the entire processing design of the whole sludge dewatering and the whole service of equipment design and manufacturing, installation and commissioning for the sewage treatment plant. Products available include a variety of dissolved air flotation machine, CAF precipitation machine, buried sewage treatment machine, truss car scraper suction machine, suction machine bridge scraper to remove SS micro filtration, mechanical grid gate series and so on. All products use high-quality raw materials, advanced anti-corrosion technology to satisfy the preservative requirements of the water treatment equipment in harsh working environment.
Over the years we have provided a large number of quality products and services for domestic and international environment engineerings in chemical, food, textile, electric power, metallurgy, petroleum, coal.
Down to earth, pursing steady developments, providing users with first-class products and services, holding the spirit of doing fine, being specialized and stronger, we strive to be a leading modern enterprise in the field of China's environment equipment in protection and production.
We strictly follow the the philosophy of "life -oriented, credibility is the gold". First person and then the idea of doing things to promise to provide customers with high-quality products and good services.
