Qt6 Yongchang Automatic Brick Making Machine

Name: Qt6 Yongchang Automatic Brick Making Machine
Brand: china-manufacturer-directory.com
SKU: 745592695
Availability: InStock
Rating: 4.6 (21 reviews)

Supplier:	Fujian Quanzhou Yongchang Building Materials Machinery Co., Ltd.
Price:	US $ 5000-80000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	QT6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Product Name:	Automatic Concrete Block Making Machine
Control System:	Siemens Full Automatic PLC Control
The Capacity Of Standard Block:	60, 000 PCS/Day for 24011550mm
The Capacity Of Hollow Block:	10, 000 PCS/Day for 400200200mm
The Capacity Of Perforated Block:	25, 000 PCS/Day For2 4011590mm
The Capacity Of Holland Block:	30, 000 PCS/Day for 20010060mm
Electronical Hydraulic Relief Valve:	Adjust Oil Pressure and Flow
Pallets Feeder:	Conveying by Big Pusher Brake System
Warranty:	Two Year After Installation
Certification:	ISO9001: 2000, Gmc TUV
Type:	Dual-Fabric Automatic Brick Making Machine Qt6-15

Product Description

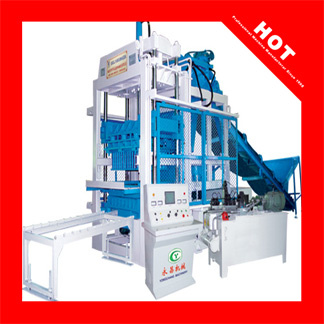

QT6 Yongchang automatic brick making machine

Technical parameters of brick making machine:

CE, ISO9001, TUV certified Automatic brick machine

Siemens or Panasonic Control System

Exciting Force: 60 KN

Total Power: 32 KW

Frame Dimimension: 12550X2450X2500 mm

Pallet Size: 860X680X20 mm

Forming cycle: 15-20 Seconds

Vibration Frequency: 4000-5600 Rolls/minute (adjustable)

Molding Method: Automatic charging, vibrating and pressing

Control Mode: Full automatic PLC control

Raw Materials: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Applied Products: Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied Fields: Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

----------------------------------
Tel: 0086-595-86650578
Mobile Phone: 0086-15359309818 (24hours)
Fax: 86-595-86657765
Address: Caobu Industrial Zone, Kanmei Town, Nan' An, QuanZhou City, Fujian Province, China.

Production Capacity of Dual-Fabric Automatic Brick Making Machine (QT6-15A)
Model	Product	Size (mm)	Pcs/Mould	Pcs/Hours
QT6 Machine	Hollow block	390x190x190	6	1440
	Porous brick	240x115x90	15	3600
	Standard brick	240x115x53	30	7200
	Standard brick	240x115x50	32	7680
	Holland block	200x100x60	21	5040
	Paving stone	200x100x60/80/100	24	5760
	Colored Paving brick	225x112.5x D	15	3600
QT8 Machine	Hollow block	390x190x190	8	1920
	Porous brick	240x115x90	18	4320
	Standard brick	240x115x53	39	9360
	Standard brick	240x115x50	42	10080
	Holland block	200x100x60	24	5760
	Paving stone	200x100x60/80/100	32	7680
	Colored Paving brick	225x112.5x D	21	5040
QT10 Machine	Hollow block	390x190x190	10	2400
	Porous brick	240x115x90	27	6480
	Standard brick	240x115x53	59	14160
	Standard brick	240x115x50	69	16560
	Holland block	200x100x60	40	9600
	Paving stone	200x100x60/80/100	44	10560
	Colored paving brick	225x112.5x D	28	6720
Note: Brick size could be customized.The production capacity is affected by material,brick size and other factors. Machine could be customized,we have also YC4 Machine,YC12 Machine,YC1500,YC3000 etc,the relevant data is available upon your request.

Yongchang factory is one of the largest professional machinery manufacturing enterprise engaged in manufacture brick making machine for concrete, fly ash, coal gangue, recycling waste and cement. We are specialized in producing concrete block making machine, brick making machine, paver making machine, light weigh wall panel machine, concrete mixing plant and asphalt mixing plant etc.

The main features of YongChang Machine:

1. Mature technology. We are the professional manufacturer for block making machine, brick making machine and paver making machine since 1 9 9 8.

2. The highest stability, the lowest fault rate. Our factory pursue the stability during the block' S production, we test and adjust the machine many times before shipping out of our workshop.

3. Import the Germany Frequency Conversional Control, Adopt the Panasonic PLC Control system. The frequency conversional control to protect the electric machinery.

4. Break arch feeding device, uniform feed. Creative shock absorption, noise elimination.

5. All-in-one multifunctional machine with cost saving performance.

"To be credible, let the manufacturer make benefits, for the builder to lower the price, the user enjoy more safety " is our principle of management. Our company carries on the production control according to the I S O 9 0 0 1 quality management system completely, producing the high quality and stablity machine which passed CE certificate, GMC certificate by TUV, we enjoy good reputation from world-wide users by the best after-sales service and tracking quality' S service, we warmly welcome new and old customers to come to vist our factory.
