Product Specifications
| Prod Model: |
HP-W1026 |
| Markets: |
North America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe |
| Material: |
Galvanized Iron Wire |
| Application: |
Gabions |
| Hole Shape: |
Hexagonal |
| Usage: |
Civil Engineering |
| Technics: |
Woven |
| Surface Treatment: |
Galvanized or PVC Coated |
| Size: |
According to Customer's Request |
| Aperture: |
6X8mm,8X10mm,10X12mm,12X15mm,16X18mm |
Product Description

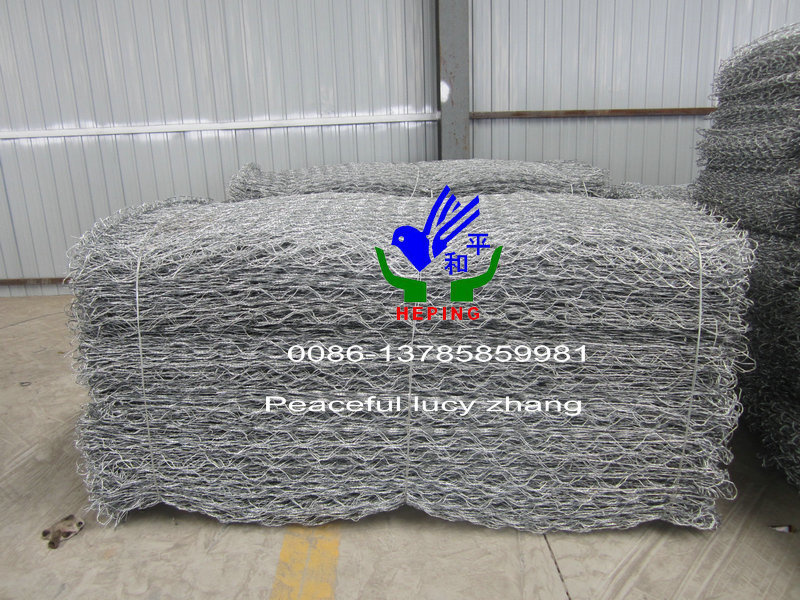

quality guarantee gabion box,hot sale reno mattress
Gabion box specification:
Material:
1)hot dipped galvanized wire
2)electro galvanized wire
3)pvc coated wire
4)stainless steel wire
1)Hot dip galvanized wire:Heavy zinc-coated wire(EN10244-2 240g/m2)
2)Pvc coated wire(Pvc thickness:0.38-0.5mm)
Wire Diameter:2.0mm-4.0mm
Mesh size:6x8mm,8x10mm,10x12mm,12x15mm,16x18mm
Size:1x1x1m,2x1x1m,3x1x1m,4x1x1m,2x1x0.5m,4x1x0.5m
Selvedge wire diameter: 3.2mm-4.2mm
acing/tie wire : 2.2mm/3.2mm
Opening
(mm) |
Wire Diameter
(Metal Wire) (mm) |
Wire Diameter
(PVC Coate)/ Inner/Outside(mm) |
60X80 |
φ2.0-2.8 |
φ2.0/3.0-2.5/3.5 |
80X100 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
80X120 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
100X120 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
100X150 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
120X150 |
φ2.0-4.0 |
φ2.0/3.0-3.0/4.0 |
Characteristic & Advantage for Galvanized Gabion Box:
1)economical,practical
2)high resistance to corrosion
3)fast and simple installation
4) Excellent Penetrability, which can prevent from the whist by liquid
? Types of galvanzied gabion box:galvanized gabion box and welded gabion box
Production Process for Galvanized Gabion Box:Selection of raw materials (wire) -- drawing / galvanized / plastic bag -- knitting machine -- artificial shear, assembly -- product inspection -- packaging and transportation
Material of gabion box:galvanized iron wire or pvc wire
Galvanized Gabion Box Advantages:
1. Economic. Just put the stone into the gabion and seal.
2. Easily construct, no special technology needed.
3. Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance.
4. Affording Large scale distortion, but never be defeated.
5. The slit between the mesh and stone is good for the growth, which can be the part of the environment around.
6. Excellent Penetrability, which can prevent from the whist by liquid.
7. Saving the transport costs. Which can fold while loading and transport, then assemble.
? Application for Galvanized Gabion Box:
1.Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Reinforce fabric.
7. Seashore recovery project.
8.Poultry farm equipment
Packaging for Galvanized Gabion Box : In bundles tied by iron wire, then in bulk or in pallet.
