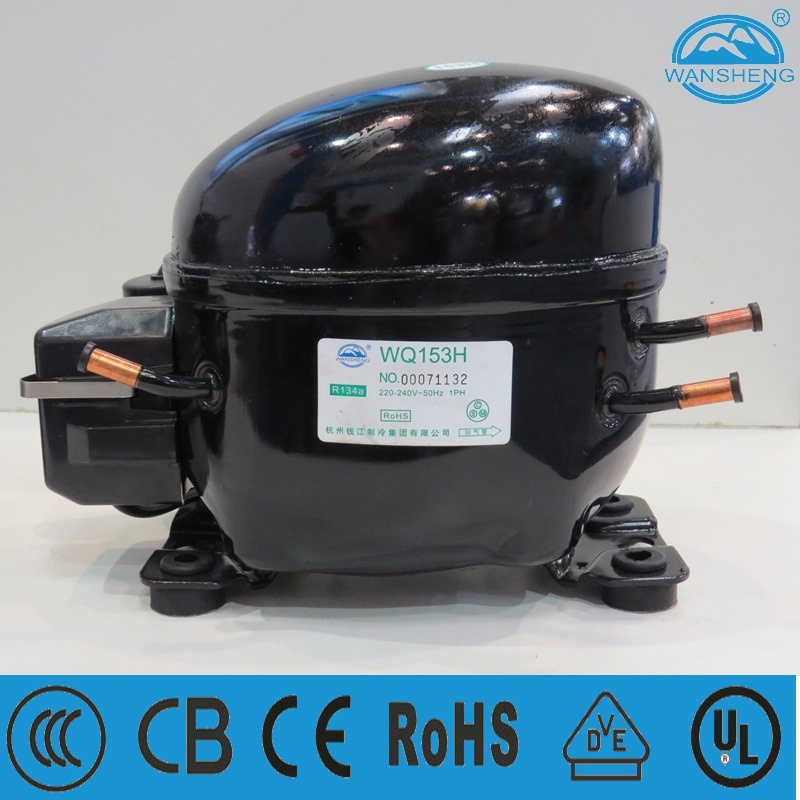

R134A Piston Reciprocating Compressor Wq153h

Starting device is Starting Relay

Frequency only for 50HZ

Voltage application from 220 to 240V

Application in display cabinets, freezers, vending machines, ice machines and other large and medium-sized refrigeration equipment.

High efficiency

Low vibration

Good reliability

Nominal power is 2/5 HP

COP is 1.35 with the cooling capacity 390W

CSIR Motor

Cooling type F

WQ153H has passed CCC certification

Low Back Pressure


Compressor should be stored in a dry and drafty place

Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.

Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.

The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.

R134a piston refrigerator compressor WQ153H

WQ series WQ153H compressor use R134a refrigerant

Cheap price provided for the compressor WQ153H makes the customers better choice

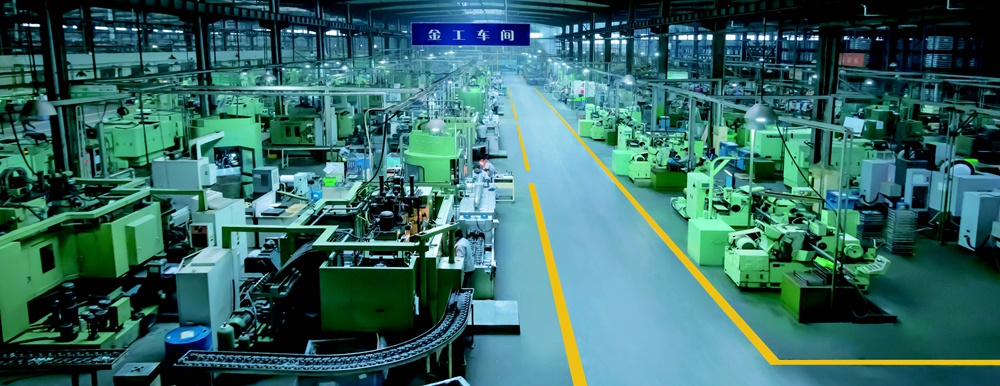

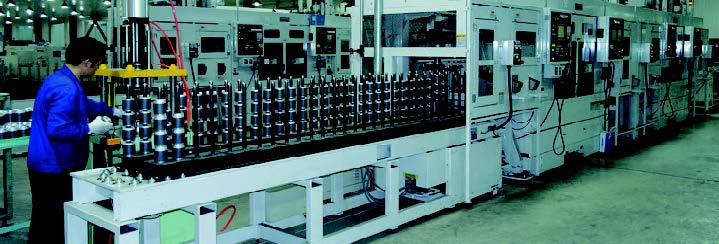

Experienced staff ensure produce of the compressors with good quality

WANSHENG R134a LBP Compressor				Test Conditions	LBP ASHRAE		Subcooling Temp.: 32.2°C
					Evap. Temp.: -23.3°C		Cond. Temp.: 54.4°C
					Amb. Temp.: 32.2°C		Suction Temp.: 32.2°C
Model	Power Supply (V/Hz)	Nominal Power (HP)	Cooling Capacity (W)	COP Power Efficiency COP (W/W)	Motor Type	Starting Device	Starting Capacitor (μF)	Running Capacitor (μF)	Cooling Type
WQ Series  220-240V~50Hz
WQ153H	220-240V~50Hz	2/5	390	1.35	CSIR	Starting Relay	80	/	F
