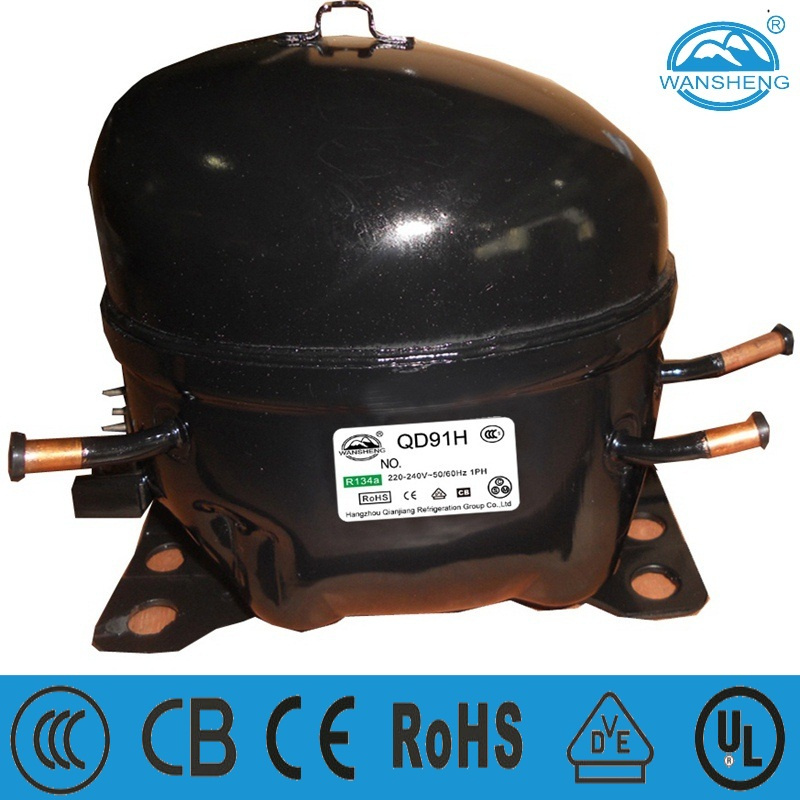

R134A Piston Refrigeration Wt Series Qd91h Compressor

Product Specifications

Prod Model:	QD91H-7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Piston
Performance:	Low Noise
Drive Mode:	Electric
Power Source:	AC Power
Configuration:	Stationary
Material:	Copper
Piston Type:	Closed
Lubrication Style:	Lubricated
Application:	Low Back Pressure Type
Mute:	Not Mute

Product Description

R134a-LBP COMPRESSOR PERFORMANCE PARAMETER
Wansheng R134a low back pressure(LBP) compressor			Test Conditions	Evap. Temp.: -23.3°C			Cond. Temp.: 54.4°C
				Amb. Temp.: 32.2°C			Suction. Temp.: 32.2°C
				Subcooling Temp.: 32.2°C			LBP ASHRAE
Model	Displacement (cm³)	Cooling Capacity  (W)	Rated Power   (W)	Nominal power     (HP)	COP  (W/W)	Motor Type	Capacitor (μF)	Starting Relay	Cooling Type
WS series    220V/50Hz
QD91H	9.1	208/235	173/181	1/4	1.2/1.3	RSIR	/	PTC	S

1.220V/50-60Hz, applicated LBP

2. Used for display cabinets and other medium-sized, large refrigeration equipment

3. With CCC/CE certification

4.220V/50-60HZ Compressors: WS Series are in fully enclosed crank and connecting rod structure and with reciprocating piston in the semi-direct suction mode

5. Small size

6. The main feature: Good startup performance, low noise and good reliability

7. High efficiency

8. High reliability

9. Reliable starting performance

10. Low sound & vibration

11. Use R134a refrigerant



Model: QD91H
Test Conditions
Evap. Temp.: -23.3º C
Cond. Temp.: 54.4º C
Amb. Temp.: 32.2º C
Suction. Temp.: 32.2º C
Subcooling Temp.: 32.2º C
LBP ASHRAE

Power Supply: 220-240V/50Hz
Displacement (cm³ ): 9.1
Cooling Capacity (W): 208
Rated Power (W): 183
Nominal power (HP): 1/4
COP (W/W): 1.13
Rated Current (A): 1.55
Motor Type: RSIR
Capacitor (μ F): /
Starting Relay: Applying Relay
Cooling Type: S
Packing (PCS/pallet): 100
1× 20'FCL (PCS): 2000
