Price: | US $ 1-100/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1000/Piece |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | QZ45HG-5 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | Piston |
Performance: | Low Noise |
Drive Mode: | Electric |
Power Source: | AC Power |
Configuration: | Stationary |
Material: | Copper |
Piston Type: | Closed |
Lubrication Style: | Lubricated |
Application: | High Back Pressure Type |
Mute: | Not Mute |

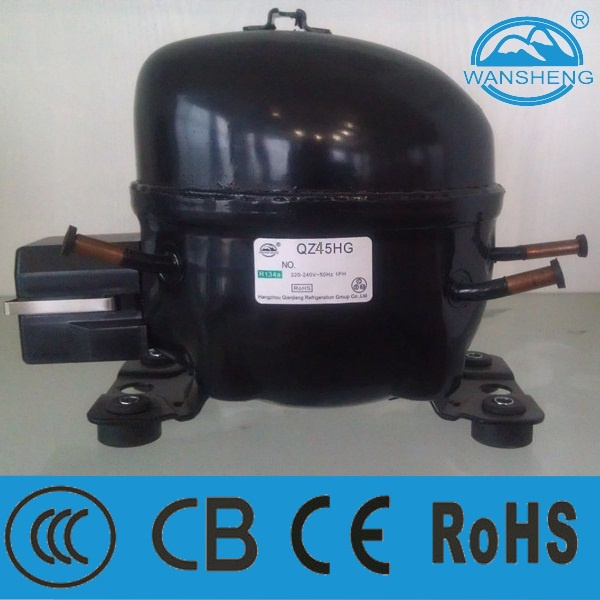

R134a WANSHENG Medium/High Back Pressure( M/HBP) Compressor | ||||||||||||||
R134a WANSHENG Medium/High Back Pressure( M/HBP) Compressor | Test Conditions | Evap. Temp.: 7.2°C | Cond. Temp.: 54.4°C | |||||||||||
Amb. Temp.: 32.2°C | Suction. Temp.: 35°C | |||||||||||||
Subcooling Temp.: 46.1°C | M/HBP | |||||||||||||
Model | Displacement (cm³) | Power Supply (V/Hz) | (-10°C ) Cooling Capacity (W) | (-5°C ) Cooling Capacity (W) | (0°C ) Cooling Capacity (W) | (7.2°C) Cooling Capacity (W) | Motor Type | Starting Device | Starting Capacitor (μF) | Running Capacitor (μF) | Cooling Type | Packing (Pcs/Pallet) | 1×20'FCL (PCS) | Certification |
WT/WS Series 220-240V~50Hz | ||||||||||||||
QZ45HG | 4.5 | 220-240V~50Hz | 184 | 232 | 286 | 380 | RSIR | PTC | / | / | F1 | 120 | 2160 | CCC/CE |
