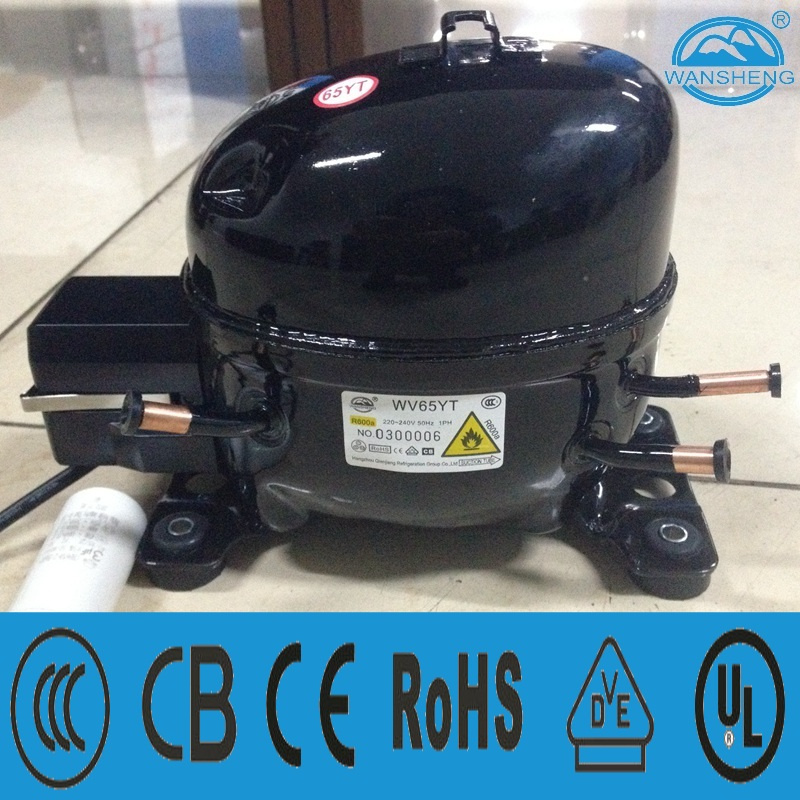

R600A Piston Reciprocating Compressor Wv65yt

Product Specifications

Prod Model:	WV65YT-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Performance:	Low Noise
Type:	Piston
Drive Mode:	Electric
Piston Type:	Closed
Configuration:	Stationary
Power Source:	AC Power
Material:	Copper
Lubrication Style:	Lubricated
Mute:	Not Mute
Application:	Low Back Pressure Type

Product Description

Compressor working condition: Wansheng R600a series compressors can start and run under the 0.25Mpa(gauge) balance pressure and 85% rated voltage; Under special conditions voltage low to 165V and high to 242 is allowable.

RSCR Motor

R600a compressor should be used in line with PTC starting device

Cooling type: S shows "Static Cooling"

WV series WV65YT with the crank and the connecting rod, piston reciprocating Structure

The structure makes the high reliability and stability

Compact structure also makes Lighter noise and Lower vibration

High efficiency

Great start-up performance

Use R600a refrigerant

Voltage application from 220 to 240V

Frequency only for 50HZ

LBP

Mainly used in refrigerator, freezer, cabinet, liquor cabinet, etc.

The process or suction tube of direct and semi-direct gas compressor can not be interchanged, or it would be difficult to guarantee the performance of compressor

The stocking period must be less than 6 months after the date of production. If longer, you have to check whether the filled dry nitrogen is sufficient. Replenishment must be done if necessary.

Strictly processed refrigerant oil has been authorized by Wansheng Compressor to add into R600a compressor. It is not allowed to pour out or add randomly, otherwise all technical assurance would be invalid.

R600a WANSHENG  Low Back Pressure (LBP) Compressor
R600a WANSHENG  Low Back Pressure (LBP) Compressor			Test Conditions	Evap. Temp.: -23.3°C			Cond. Temp.: 54.4°C
				Amb. Temp.: 32.2°C			Suction. Temp.: 32.2°C
				Subcooling Temp.: 32.2°C			LBP ASHRAE
Model	Displacement (cm³)	Cooling Capacity  (W)	Rated Power   (W)	Nominal power     (HP)	COP  (W/W)	Motor Type	Starting Capacitor (μF)	Running Capacitor (μF)	Starting Relay	Cooling Type
WV Series 220-240V~50Hz
WV65YT	6.5	110	61	1/12	1.80	RSCR	/	3	e-PTC	S
