1. Starting device is PTC
2. Frequency only for 50HZ
3. Voltage application from220 to 240V
4. Application in refrigerator, freezer and other refrigeration equipments.
5. Good reliability
6. High efficiency
7. Low sound
8. Light vibration
9. COP is 1.7
10. The cooling capacity 110W
11. RSCR Motor
12. Cooling type Static
13. With running capacitor
14. Copeland wire refrigeration compressor
15. WV65YV has passed CCC/CE/CB/VDE certification
16. LBP
17. Compressor should be stored in a dry and drafty place.
18. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
19. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
20. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
21. Don't use the compressor as vacuum-pumping. The oxygen injection should be used for leak detection of refrigeration system, or it would possibly cause accidents.
22. The oil return in system has been fully taken into consideration in design.

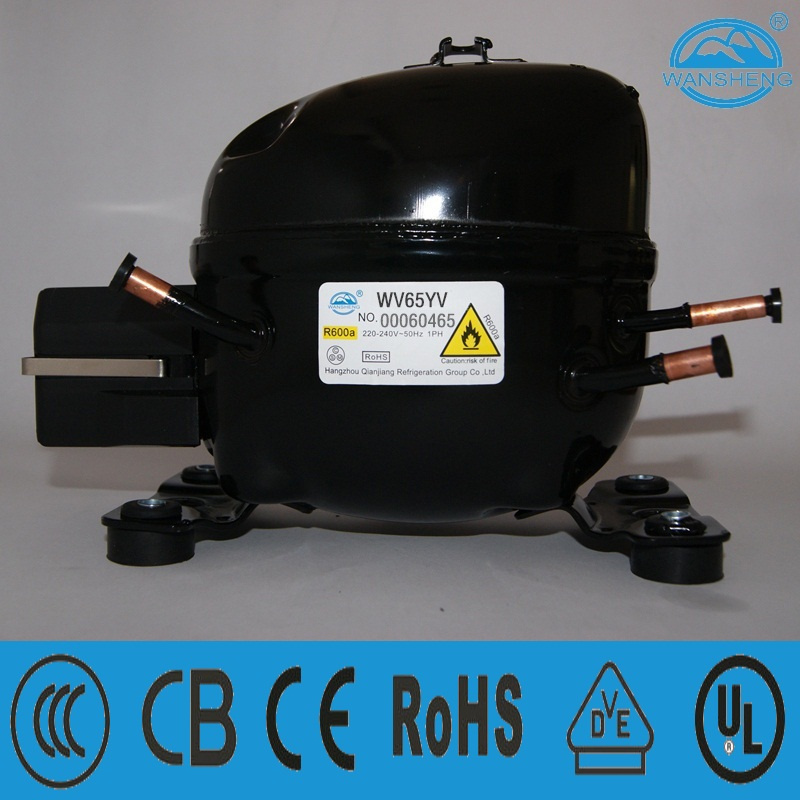

23. WV series WV65YV is freezer refrigeration compressor
24. Use R600a refrigerant
25. OEM is welcome
26. Cheap price provided for the compressorWV65YV makes the customers better choice
27. Experienced staff ensure produce of the compressors with good quality
28. On time delivery
WANSHENG R600a Low Back Pressure (LBP) Compressor |
Test Conditions | LBP ASHRAE | Subcooling Temp.: 32.2°C |
| Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction Temp.: 32.2°C |
Model |
Nominal Power
(HP) | Cooling Capacity
(W) |
COP Power Efficiency
COP (W/W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
| WV Series 220-240V~50Hz |
|
| WV65YV | 1/13 | 110 | 1.70 | RSCR | PTC | / | 3 | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
