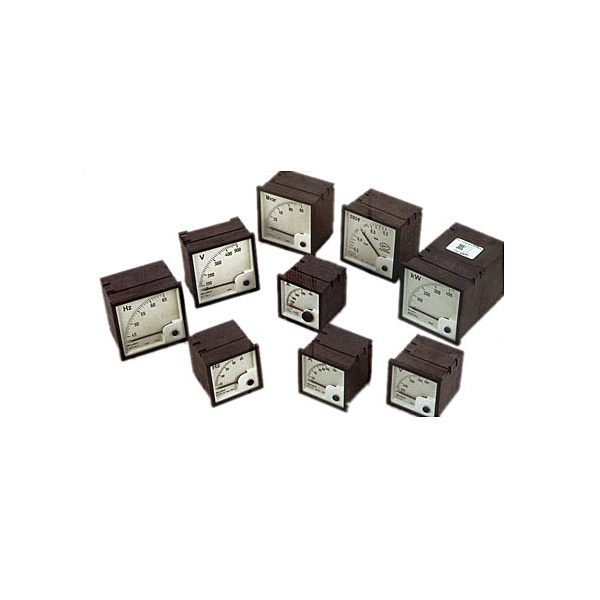

Elecal Electric Appliance Co., Ltd. >> RC-96-8, RC-72-8 Panel Meter

RC-96-8, RC-72-8 Panel Meter

Name: RC-96-8, RC-72-8 Panel Meter
Brand: China-Manufacturer-Directory.com
SKU: 766275945
Availability: InStock
Rating: 4.6 (33 reviews)

Supplier:	Elecal Electric Appliance Co., Ltd.
Price:	US $ 10/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	Indicator
Installation:	Indirect Connected
Usage:	Multi-Functional Energy Meter
Electric Equipment:	Single-phase
Theory:	Electronic Meter
Power Meter Connection:	Terminal
Measured Signal:	Continuous Wave
Type:	Power Meter

Product Description

The general features & function & mounting dimension of panel meter:

Maximum demand ammeter:

Model: SF-72, SF-96
Class:3.0
15min 5A,15min1A
Interchangable scale

Primary CT(A)	Scale capacity	Primary CT(A)	Scale capacity	Primary CT(A)	Scale capacity	Primary CT(A)	Scale capacity
100%	120%	100%	120%	100%	120%	100%	120%
10	12	80	96	500	600	2500	3000
15	18	120	120	600	720	3000	3600
20	24	125	150	750	900	4000	4800
25	30	150	180	800	960	5000	6000
30	36	200	240	1000	1200
40	48	250	300	1200	1400
50	60	300	360	1500	1800
60	72	400	480	2000	2400

Combined maximum demand ammeters:

Model: SF-96
Class:3.0
15min 5A,15min1A
Interchangable scale

Primary CT	Scale		Primary CT 116	Scale		Primary CT	Scale
Primary CT	Brimetal	Moving iron	Primary CT 116	Brimetal	Moving iron	Primary CT	Brimetal	Moving iron
100%	120%	100%	100%	120%	120%	100%	120%	120%
10	12	20	80	96	160	600	720	1200
15	18	30	100	120	200	800	960	1600
20	24	40	150	180	300	1000	1200	2000
25	30	50	200	240	400	1200	1400	2400
30	36	60	250	300	500	1500	1800	3000
40	48	80	300	360	600	2000	2400	4000
50	60	100	400	480	800	2500	3000	5000
60	72	120	500	600	1000	3000	3600	6000

Plug-in maximum demands ammeter:

Model: SF-72, SF-96
Class:3.0
15min 5A,15min1A
Interchangable scale

Moving iron instrument AC ammeters for explosive gas atmospheres(increased safety"e"):

Model:SF-E96 SF-E72 SF-E48A
Accuracy:Class 1.5,2.5
Marking:EExe IIT6
Specification:AC 100mA,1A,5A,
For 10A~10KA meters have to use external transformer with secondary curent 1A,5A
Frequency:50/60Hz consumption:0.2VA
The dial plate with different scale ,which is at the same internal value,can be changeable.
But the accuracy is unchangeable

Elecal Industrial Automation is Specializing in the manufacture and export of low-voltage and hight-voltage electrical products in China. Such as MCB, MCCB, ELCB, RCD, Contactor, Fuse, Relay, Switch, Distribution Box etc.

All the manufacturing process of the products is in strictly conformity to international IEC standard and we have established and perfected quality control procedures in accordance with ISO9001 international quality management system.
