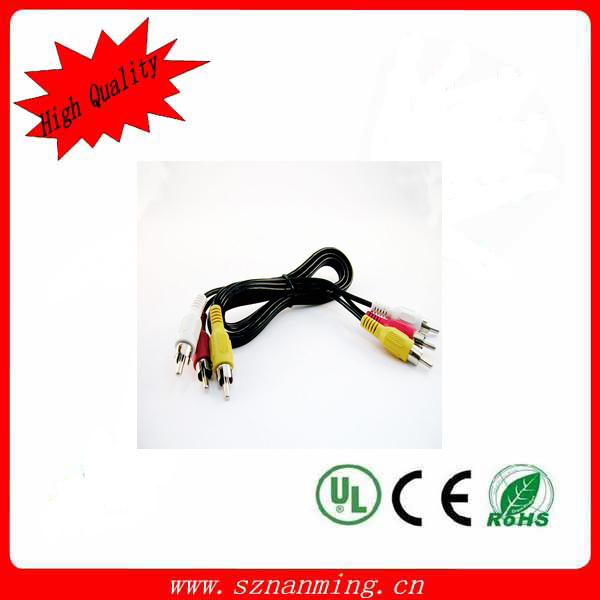

RCA M/Mx3 Audio/Video Cable Gold Plated - Audio Video

Product Specifications

Prod Model:	NM-DC-242
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Coaxial
Outer Diameter:	2.6*5.2mm
Connector Color:	Nickel Plated
Connector Type:	RCA
Shielding:	Braid
Gender:	Male-Male
Item:	3.5mm Audio to 2 RCA Cable
Connector:	RCA
Conductor:	Bc or CCS
Application:	Monitor
Color:	Black
Certification:	ISO9001

Product Description

Audio video cable 3.5mm to 3RCA cable 1 to 3 splitter cable

Spcifications:

1. 3.5mm stereo to 3RCA audio cable

2. High quality, competitive price

3. OEM ODM are welcome


Features:

1. 3.5mm Mini Male to 2 RCA Cables

2. Optional gold and nickel plated

3. Conductor: Pure copper

4. Gauge: 30AWG, 28AWG, 26AWG and 24AWG optional

5. Length: 0.5M, 1.5M, 2M, 5M, 10M, 15M, and according to the clients'requirement

6. Jacket color: Black, Bule, Grey, Transparent, and according to the clients'requirement


Electrical:

1.100% open & short test

2. Hi-Pot: DC 300V 10ms

3. Insulation Resistance: 10M OHM /300V Min.

4. Contact Resistance: 0.01 OHM Max.

5. Shield up to 65% braid.

6. Working Temperature: -25oC ~ +85oC


Mechanical:

1. Over mold: PVC 70PA UL94V-0 Black

2. Pre mold: PE Low Density

3. Contact: Copper Alloy.

4. Insertion Force: 35 N Max.

5. Withdraw Force: 10 N Min


Packaging:

Polybag, headcard, blister, Slide card, giftbox, according to clients' requirement
