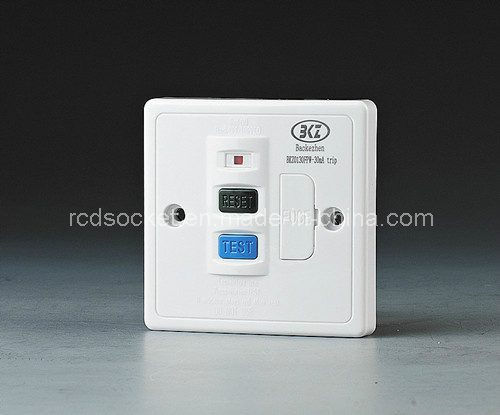

BKZ0130FPW British socket
RCD fuse spur unit
1. Single RCD plastic socket, unswitched
2. PC material, Passive RCD
3. Dimension: 86*86mm
4. RoHS, CE, BS7288
Specification
Model BKZ0130FPW British socket, it is also called as UK switch, UK socket, BS switch, UK socket, BRritish switch, 13A socket, 13A switch
RCD fuse spur unit
Single RCD plastic socket, unswitched
Passive plastic RCD, BS Standard wall socket
Rated Voltage 240VAC
Rated Current 13A max
Frequency 50Hz
Trip current 30mA
Break Time 40mS max
Voltage Surge 4K (100kHz Ring Wave)
Endurance 3000 Cycles min
Hit-Pot 2000V min
Approval CE BS7288; BS1363
Cable capacit 3X2.5 mm
IP Rating IP4X
Application Equipment, Household appliances, etc.
Minimum back box depth: 35mm
Test and Reset buttons for safety checks, and manual reset;
Provides residual circuit protection
Latching RCD (Sometimes called Passive). When the power is lost due to an earth fault, the RCD trips out and isolates the circuit it is protecting. Latching RCD's do not trip during power cuts so they are great for fridges and freezers and also for protecting remote/unmanned areas. This would also make them ideal for protecting some heating equipment set to "Frost Protection", fish tanks, battery charging, and the protection of remote or unmanned areas.
|
