Product Specifications
| Prod Model: |
RCYD-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Belt Width: |
300mm |
| Rated Height: |
75mm |
| Magnetic Field Intensity: |
More Than 50mt |
| Material Thickness: |
Less Than 50mm |
| Excitation Power: |
Less Than 0.4kw |
| Belt Speed: |
Less Than 4.5m/S |
| Type: |
Magnetic Separator |
| Certification: |
SGS |
| Warranty: |
1 Year |
| Color: |
Multi Color |
| Customized: |
Customized |
| Condition: |
New |
| Weight: |
185kg |
Product Description
Outline:

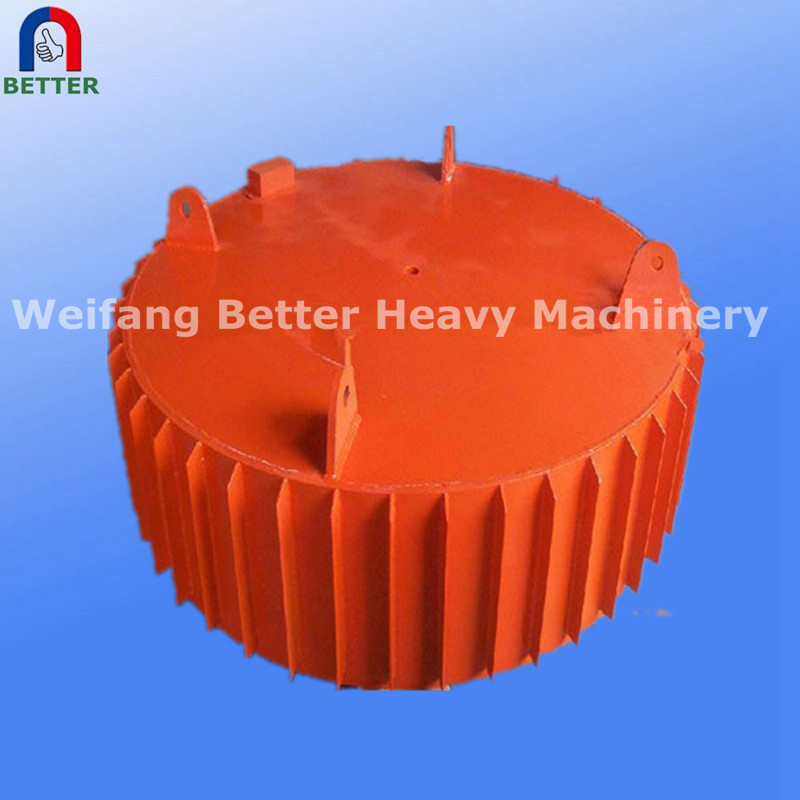

RCDB (Y) electromagnetic separator (also called PDC series disc, RCDY series) is used to remove Powder or block non-magnetic materials in miscellaneous iron removing iron fittings. Its internal electrical Special resin casting, self-cooled hermetically sealed structure. With penetration of magnetic depth, Strong suction, dust, rain, corrosion resistance and other characteristics, In extremely harsh environments Still reliable operation. With CF, CFL series suspended magnetic separator universal. The main performance Indicators are at or above the JB/T7689-2004 standard requirements, The product can be removed in 0.1 to 35 kg of ferromagnetic material from mixed with non-magnetic materials.
The main technical parameters:
| Model | Belt Width
(mm) | Rated
Height
h=mm | Magnetic
Field
Intensity
≥mT | Material
Thickness
≤mm | Excitation
Power
≤kw | Belt
Speed
≤m/s | Weight
(kg) | Dimensions |
|
|
|
|
|
|
|
| A | B | C | D |
| RCDB-3 | 300 | 75 | 50 | 50 | 0.4 |
4.5 | 185 | 210 | 250 | 400 | 280 |
| RCDB-4 | 400 | 100 | 50 | 70 | 0.6 |
| 300 | 240 | 280 | 500 | 400 |
| RCDB-5 | 500 | 150 | 60 | 90 | 1 |
| 430 | 280 | 325 | 610 | 450 |
| RCDB-6 | 600 | 175 | 60 | 120 | 1.6 |
| 580 | 280 | 325 | 710 | 500 |
| RCDB-6.5 | 650 | 200 | 70 | 150 | 2 |
| 680 | 280 | 325 | 816 | 640 |
| RCDB-8 | 800 | 250 | 70 | 200 | 3.6 |
| 950 | 310 | 355 | 960 | 780 |
| RCDB-10 | 1000 | 300 | 70 | 250 | 5 |
| 1520 | 310 | 360 | 1200 | 920 |
| RCDB-12 | 1200 | 350 | 70 | 300 | 6.8 |
| 2250 | 310 | 365 | 1400 | 1000 |
| RCDB-14 | 1400 | 400 | 70 | 350 | 9 |
| 2950 | 405 | 485 | 1650 | 1400 |
| RCDB-16 | 1600 | 450 | 70 | 400 | 13 |
| 4800 | 460 | 540 | 1900 | 1650 |
| RCDB-18 | 1800 | 500 | 70 | 450 | 18 |
| 6900 | 530 | 610 | 2150 | 1800 |
Our company specializing in the production of crushing equipment, screening equipment, transportation equipment, feeding equipment, magnetic separation equipment, grinding equipment, sand and gravel production equipment, grinding and processing equipment, more than thirty series over 200 kinds of standard models. The service is related to more than 10 areas, such as electricity, coal, building materials, metallurgy, ports, mining, nonferrous metals, powder environmental protection. At present, we have provided more than 3, 000 domestic customers with reliable and at the same time, we occupy more than 60% magnetic separation equipment matching share of China ball mill, crusher, iron sand ship and other production industry.
There is no best, only better. Better has firmly implemented IS09001: 2000 international quality management system standard and IS010012 international quality inspection system standard, relying on technological innovation, and continuously improve core competitiveness. We innovate and constantly improve product performance, quality, extend the application scope to meet user higher demand. To become an international leader in magnetic application system is the goal of Better...
