Product Specifications
| Prod Model: |
rcyd-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Belt Width (mm): |
600 |
| Rated Height H=mm: |
180 |
| Weight (Kg): |
920 |
| Power ≤kw: |
1.5 |
| Type: |
Magnetic Separator |
| Voltage: |
220V |
| Weight: |
<1T |
| Certification: |
ISO9001:2000 |
| Warranty: |
1 Year |
| Color: |
Multi Color |
| Customized: |
Customized |
| Condition: |
New |
Product Description

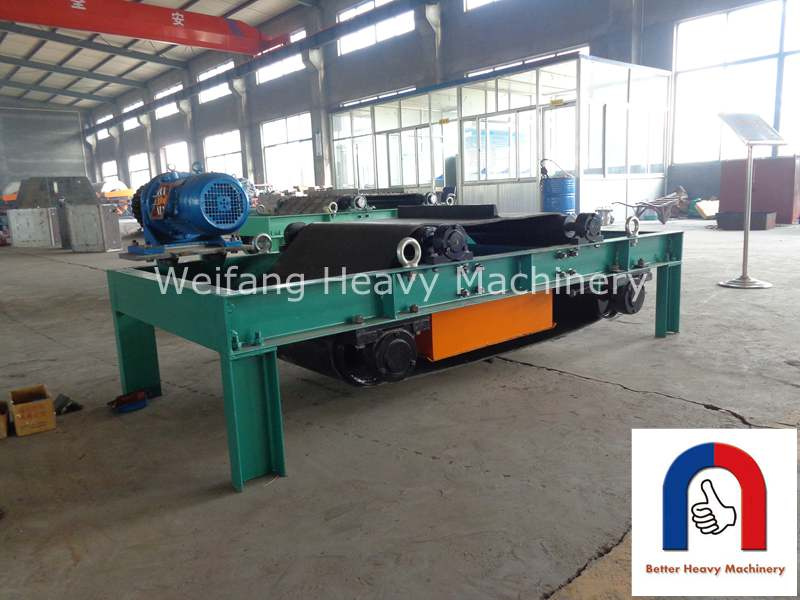

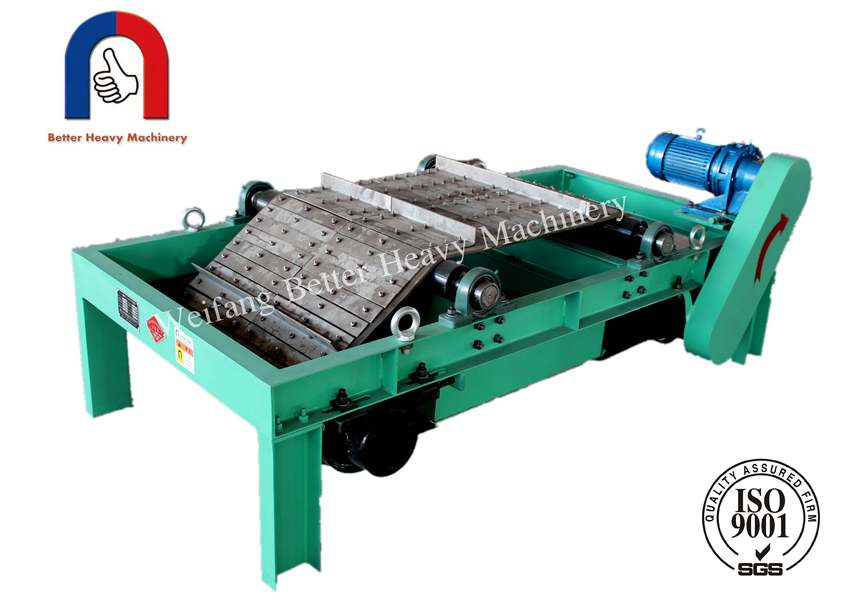

Discharging separator by high performance permanent magnetic core abandonediron belt, gear motor, frame, rollers and other components, with a variety of supporting the use of conveyors. From a non-magnetic materials areautomatically cleared 0.1-35kg weigh ferromagnetic material. It's internal magneticcircuit design using computer simulation, perfect double magnetic poles structure, ensure the machine in harsh environments with out failure and long run.

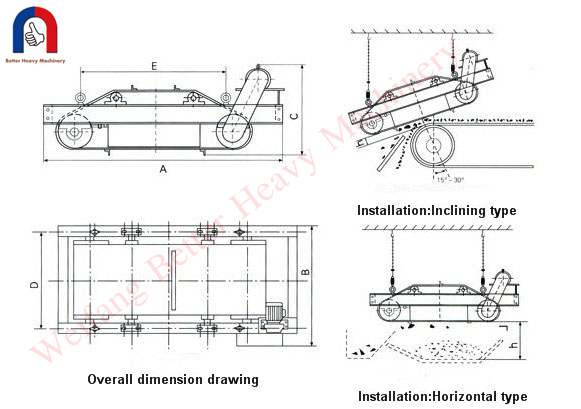

The main technical parameters | Model | Belt Width
(mm) | Rated height
H=mm | Material thickness
≤mm | Magnetic field intensity
≥mT | Power
≤kw | Belt speed
≤m/s | Weight
(kg) | Dimensions
(mm) |
| A | B | C | D | E |
| RCYD(C)-5 | 500 | 150 | 100 | 60 | 1.5 |
4.5 | 750 | 1900 | 935 | 735 | 753 | 950 |
| RCYD(C)-6 | 600 | 180 | 130 | 60 | 1.5 | 920 | 2050 | 1030 | 780 | 753 | 1100 |
| RCYD(C)-6.5 | 650 | 200 | 150 | 70 | 1.5 | 1200 | 2165 | 1080 | 780 | 888 | 1200 |
| RCYD(C)-8 | 800 | 250 | 200 | 70 | 2.2 | 1400 | 2350 | 1280 | 796 | 1088 | 1300 |
| RCYD(C)-10 | 1000 | 300 | 250 | 70 | 3.0 | 2120 | 2660 | 1550 | 920 | 1335 | 1400 |
| RCYD(C)-12 | 1200 | 350 | 300 | 70 | 4.0 | 3350 | 2860 | 1720 | 1010 | 1515 | 1550 |
| RCYD(C)-14 | 1400 | 400 | 350 | 70 | 4.0 | 4450 | 3225 | 1980 | 1050 | 1755 | 1800 |
| RCYD(C)-16 | 1600 | 450 | 400 | 70 | 5.5 | 6200 | 3350 | 2160 | 1180 | 1850 | 1950 |
| RCYD(C)-18 | 1800 | 500 | 450 | 80 | 5.5 | 8100 | 3580 | 2450 | 1210 | 2130 | 2200 |
| RCYD(C)-20 | 2000 | 550 | 500 | 80 | 7.5 | 9700 | 3800 | 2700 | 1300 | 2410 | 2400
|
FAQ*How do you guarantee I can receive the goods that ordered after make the payment? Please be rest assured that you will receive the goods in time, we are a legally established company supervised by the government, and is registered in customs of China and China Chamber of International Commerce. Besides, we are the golden member of MADE IN China. COM and has been checked by the third party as the real and legal company*How to make the payment? Normally, when the order value is below USD10, 000, we accept the payment by T/T or Western Union or Cash, L/C will be accepted when the order value is over USD10, 000. For T/T, the customer can choose 100% in advance or 30% in advance, and pay the 70% balance before shipment. *Date of delivery? We will arrange the production and shipment as soon as possible when we received the deposit, and update the information with the customer on line. *Suitability of motor? As there are many voltage standards in different countries in the world, so the original motor equipped on the machine would not suitable to be used with the customer's local power supply, when this situation happened, please send us your exact information of the power supply available, then we can modify the motor accordingly. *After sale service? For most of the machines, the quality is guaranteed for one year since the date of shipment except wearing parts, we supply the on-line service for all the machines, and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too. Packaging & ShippingAll the goods exported are packed in wooden case or carton with export standard except naked package when necessary. We have our own professional shipping company which could deliver the goods to every corners in the world with safety and speed, and aslo can supply the services of solving the problems occured during the transaction, such as customs cleaning.
Our company specializing in the production of crushing equipment, screening equipment, transportation equipment, feeding equipment, magnetic separation equipment, grinding equipment, sand and gravel production equipment, grinding and processing equipment, more than thirty series over 200 kinds of standard models. The service is related to more than 10 areas, such as electricity, coal, building materials, metallurgy, ports, mining, nonferrous metals, powder environmental protection. At present, we have provided more than 3, 000 domestic customers with reliable and at the same time, we occupy more than 60% magnetic separation equipment matching share of China ball mill, crusher, iron sand ship and other production industry.
There is no best, only better. Better has firmly implemented IS09001: 2000 international quality management system standard and IS010012 international quality inspection system standard, relying on technological innovation, and continuously improve core competitiveness. We innovate and constantly improve product performance, quality, extend the application scope to meet user higher demand. To become an international leader in magnetic application system is the goal of Better...
