Product Specifications
| Prod Model: |
RD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
500-10000mm |
| Output Signal: |
4~20madc(Min. /Max. Load: 0/500 Ohm); |
| Output Signal For Choice: |
0~10VDC(Min. Load>5k Ohm) |
| Resolution: |
Analog Output 16 Binary Digit D/a |
| Output: |
Analog Sensor |
| Usage: |
Position Sensor |
| Theory: |
Magnetic Sensor |
| Type: |
RF-Analog Linear Position Sensor |
Product Description

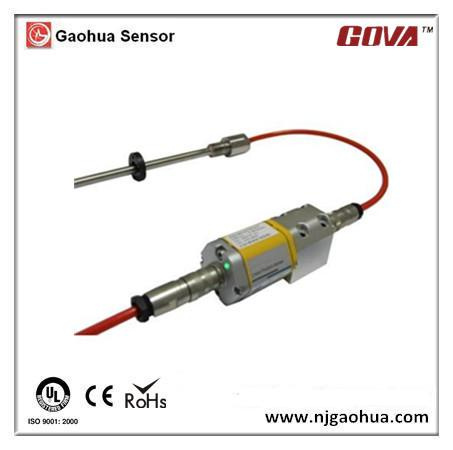

RF-Analog Magnetostrictive Linear Position Sensor
Feature
Flexible measuring rod, wide measuring range but small replacing space.
Absolute location output, no need to return to zero.
Non-contact measurement, no physical deterioration forever.
LED for sensor diagnostics
The RF series is suitable for wide range measuring, but small Flexible replacing space occasion. The flexible measuring rod not only can measure straight line position, but also can measure curve line position. Compared to the inflexibility, on the one hand, the flexible measuring rod is drastically reducing the space which the replacing or installing required, on the other hand, it relieves the difficulties of transport.
| Parameter Measured |
| Measurement range | 25-2500mm |
| Output signal | 4~20mADC(min./max. load:0/500 Ohm) |
| 0~10VDC(min.load>5k Ohm) |
| Resolution | Analog output 16 binary digit D/A |
| Nonlinearity degree | <±0.01% F.S.(min.±50μm) |
| Repeatability precision | <±0.002% F.S.(min.±2μm) |
| Refresh time | >1kHz |
| Electric feature |
|
| Outgoing line | Straight out of the cable,or 6 lamp pith aircraft connector |
| Input voltage | 24VDC(-15/+20%) |
| Working current | <60mA(changing depend on F.S.) |
| Polarity protection | max.-30VDC |
| Overvoltage protection | max.36VDC |
| Insulating ability | 500V(between the signal GND and the housing) |
| Fault indication | Red & green LED pilot lamp. |
| Installation& Accessories |
| Direction | Random |
| Mode | Screw thread installation,M18*1.5 or User customized |
| Moving Magnetic | Magnetic ringsOD33, Magnetic rings OD25.4, |
| Working condition |
| Magnetic speed | Random |
| Ambient temperature | "-40ºC~+85ºC |
| Humidity/Dew point | Humidity 90%,No dew |
| Temperature coefficient | <30ppm/ºC |
| Grade of electrical protection | Measuring rod IP69,electronic head IP67 |
| Anti-pressure ability | 35MPa(Continuously)/70MPa(Peak value) |
| Structure&Material |
| Head | Aluminium alloy |
| External tube for protection | Aluminium alloy |
| Flange fixed | Stainless steel 304L |
Nanjing Gaohua Technology Co., Ltd is located in Nanjing, Jiangsu Province, China and built in 2000, which is an ISO9001: 2008, CE and RoHS qualified OEM SENSOR-manufacturer and professional exporter (exporting to more than 20 countries). Our present workshop covers about 4000 square meters, meanwhile we have our own advanced sensor-developing center, production center, purification center, testing center and metal processing center.
We have own patents of key technology and concentrates on pressure sensors R&D, producing variety of sensors/ transducers/ transmitters (such as pressure, temperature, humidity, Acceleration, Angle, Position, Level etc. ).
With reliable quality and reasonable price, our products are widely used in the process measurement &control of Engineering machinery/ Automotive/ Medical/ Rail transit/ Mine/ Ship/ Internet industry etc.
For important projects which refer to various sensors, we offer one-stop service including customized sensors, standard production and agent procurement.
We looking forward to coorperate with you!
