Product Specifications
| Prod Model: |
HZS(30-200) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Concrete Mixing Plant |
| Certification: |
CE |
| Condition: |
New |
| Machining Process: |
Construction Machinery |

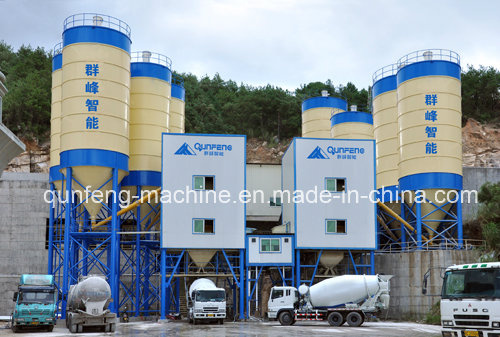

Product Description
1. Description:
1)Based on the rich experience in the field of manufacturing concrete mixer, as well as the European
Technology had been brought in, we have successfully developed and manufactured the "state of the
Art"ready mixed concrete batching plant, which is endowed the newly environmental protection design
With the function of sound proof and anti-dust pollution.
2)These series type of machineries are equipped with the quick assembling modular structure, efficient mixer and automatic dual -computer synchronization computer controlling system which enables the related machines be controlled separately and synchronized.
3)At present, this unit is more advanced large -scale concrete mixing equipment in domestic
Market, whose wide application includes the ready mixed concrete, concrete pile, concrete
Components, dam construction and marine construction.
4)What's more, we can design and produce the professional machinery according to the different technical requirements and actual demands from customers.
2. Feature:
1)The concrete mixing plant is a combinational device used to mix concrete in centralized.
2)There are many different types and components of the concrete mixing plants, the basic structure includes: Feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc. ).
3)They are used to transport, feed, store, batch, weigh, mix and discharge the concrete raw materials: Cement, water, sand, crushed stone, admixture and additive.
Further more information &pictures, please contact with our company.
| Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS200 |
| Productivity | 60 | 90 | 120 | 180 | 200 |
Mixer
| Type | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
Power
(kW) | 2×18.5 | 2×30 | 2×37 | 2×55 | 2×75 |
Exceeding Capacity
(m3 ) | 1 | 1.5 | 2 | 3 | 4 |
Grain Size
(mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 |
Batcher
| Hopper Capacity
(m3) | 20 | 20 | 20 | 30 | 40 |
Hopper Quantity
| 3 | 4 | 4 | 4 | 4 |
| Conveyor Capacity (t/h) | 600 | 600 | 800 | 800 | 1000 |
| Weighing Scope Accuracy | Aggregate
(kg) | 3×1500±2% | 4×2000±2% | 4×3000±2% | 4×4000±2% | 4×4500±2% |
Cement
(kg) | 600±1% | 1000±1% | 1200±1% | 1800±1% | 2400±1% |
Cols ash
(kg) | 200±1% | 500±1% | 500±1% | 500±1% | 1000±1% |
Water
(kg) | 300±1% | 500±1% | 600±1% | 800±1% | 1000±1% |
Additive
(kg) | 30±1% | 30±1% | 50±1% | 50±1% | 100±1% |
Total Power
(kW) | 95 | 120 | 142 | 190 | 240 |
Unloading Height
(m) | 4 | 4 | 4 | 4 | 4 |
Note: 1.The total power does not include the power of screw conveyor;
2. The quantity of hopper can be designed as required;
3. All above specifications are subject to alteration without notice.
|
1. The production base is with total investment at 450 million RMB, covering 215, 000 square meters.
2. Our Machines are working well and with high reputation in 112 countries.
3. Over 9000 customers are over all the world.
4. With CE Certificate.
5. With 200 national patents.
6. Specializing in R & D, manufacturing, vendition and after-sale service.
7. Having office and spare parts warehouse in India, Vietnam, Indonesia, Qatar, Kenya, Brazil, Bangladesh, Pakistan and Ethiopia.
8. Mould workshop covers 18, 000 square meters, with a Heat treatment equipment in Germany technology, highly improve the quality and lifespan of mould.
9. Providing comprehensive technical service, including: Investment proposal, construction planning, quality warranty, after-sales service, problem-solving, free training etc.
10. Assembly and commissioning workshop covers 36, 000 square meters, with Various types of CNC equipment in high automation.
11. More than 100 technicians work overseas providing after-sales service support for customers.
12. Involved of more than 30 national industry standards drafting and revision.
13.65% of orders are from overseas.
