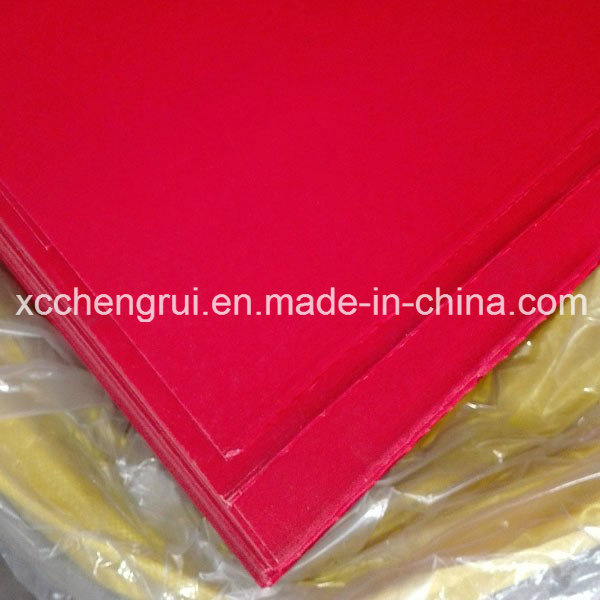

Red Insulation Vulcanized Fiber Insulation Paper

Red Insulation Vulcanized Fiber Insulation Paper
Supplier: Xuchang Chengrui Insulation Material Co., Ltd.
Price: US $ 3.5kg
Min Order: 500kg
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: o. 8-2.0mm
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Thickness: 0.8mm,2.0mm
Width: 1200mm-1600mm
Density: 1.0-1.45g/cm3
Rated Voltage: <10 Kv
Application: Insulating Varnish
Type: Insulation Paper
Chemistry: Organic Insulation
Maximum Voltage: <10KV
Material: Fiber
Color: Red,Dark Green
Brand: Chr

Product Description


Description

Vulcanized fiber sheet is a material manufactured by gelatinizing several plies of

high purity cellulose papers. It has extremely high internal bond strength,

and mechanically excellent punching, forming, machining and many other unique properties.

We proudly carries specialty grades to comply any application required by users,

such as water resistant grades, flame retardant grades, combination grades etc. in roll,

sheet and coil.Color: Gray, Black, Red, White, and other colors,Thickness Range: 0.010"

to 2",Standard Sheet Sizes: 48"x48" and 48"x84",Standard Roll Width: 48"



Features

Vulcanized fiber sheet offers flexibility, impact resistance, high tear strength and a smooth,

abrasion resistant surface. It can be machined, punched, slit, threaded, formed, molded

and wound into tubes for literally countless applications.

It provides excellent electrical insulation values, and is arc and track resistant. Even though

composed of cotton and wood pulp, standard VF can be used at operating temperatures of

110C-120C and has a flame resistance rating of U.L. 94HB. The use of additives and/or

coatings can provide a rating of 94VO, and laminating to polyester film will bring

the U.L. thermal rating up to 130C.



Applications

Vulcanized Fiber sheet is impervious to most organic solvents, oils, and petroleum

derivatives. This makes it an excellent choice for use in oil. Like wood, to which

it is related, VF will absorb water, but will not delaminate in its presence.

It will tend to "breath" or adjust its moisture content as the ambient moisture level

changes.

As a tribute to its tremendous physical strength, Vulcanized Fibre is

the substrate of choicefor heavy sanding discs. VF has been used for these

abrasive discs since they were first developed. The application requires a backing

that is tough, flexible and tear resistant to withstand 20,000 RPM's while

in direct contact with rough steel welds. Here a loose piece of material

becomes a dangerous projectile and a weak backer leads to excessive downtime.

The newer wood laminating grade of vulcanized fibre strengthens wood laminations

used in skis, skateboards, support beams and as a sub-laminate under thin wood veneers.


Items

Unit

Standard

result

Thickness

mm

0.6±0.05

0.634

Density

g/cm3

0.5mm-0.9mm
1.0mm-2.0mm
2.1mm-5.9mm
≥6.0mm

≥1.1
≥1.15
≥1.15
≥1.20

1.17

Breakdown Voltage
(In (23±1)°Ctemperature)

KV/mm

0.5mm-0.9mm

≥6.0

__

1.0mm-2.0m

≥5.0
≥3.0





Cross-section tensile strength

kN/m2

0.5mm-0.9mm

MD

≥5.5X104

MD 1.31X105
CMD 6.31X105

CMD

≥3.5X104

1.0mm-2.0mm

MD

≥6.0X104

CMD

≥3.5X104

2.1mm-3.5mm

MD

≥6.0X104

CMD

≥4.0X104

≥6.0mm

MD

≥5.0X104

CMD

≥3.0X104

Elongation percentage

MD

%

_____

2.1

CMD

_____

2.6

Volume Resistance

Ω.cm

≥108

1.9x1011

Water Absorption

%

≤65

82.5

Gluing Coefficient

N/m

≥200

231

Zinc chloride content

%

≤0.20

0.07

Moisture content

%

6-10

6.5

Ash content

%

≤2.5

0.59

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
