Product Specifications
| Prod Model: |
KIC Start Thermal Profiler |
Product Description

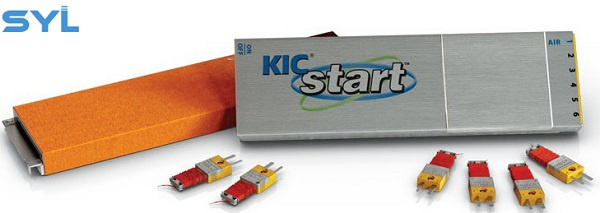

Reflow Oven Wave Soldering Temperature Analysis Record Tracking System KIC Start Thermal Profiler
Profiling Made Fast, Accurate and Affordable
Exceptional Value
The KICstart™ thermal profiler utilizes core technologies developed by KIC-the world's premier thermal profiling company-and is supported by KIC's worldwide organization. Packaging these innovative technologies into a low-cost system, the KICstart is an ideal thermal profiler for facilities with tight budgets.
Ease of Use
The KICstart profiler has everything you need to quickly acquire an accurate profile, without complicated features that can slow you down. For applications where all you want is your product's thermal profile-immediately with no fuss-the KICstart is for you. KIC's patented design concept automatically identifies the location of each oven heating zone, so no measurements are required. This design automatically corrects for different TC locations on the part, aligning them for improved profile graph viewing. In addition, the optional Manual Prediction enables the process engineer an instant "trial and error" capability when searching for more suitable oven recipes. With its easy to use and intuitive software, new personnel can be trained in record time.
Instant Process Analysis
Once your profile has completed, the KICstartautomatically analyzes your process using the Process Window Index™ (PWI™). The PWI is a single statistical number that measures how well your profile fits within your product's thermal process window (See the Process Window Index data sheet for details). The PWI provides an instant and objective conclusion whether your product profile is in spec, eliminating guesswork and opinion from process analysis. This helps you ensure that all your products on all your lines are manufactured with measurable, consistent quality.
Reliable and Robust
The superior accuracy and reliability of the KICstart is nothing less than you would expect from KIC's award winning product line. The KICstart is a six thermocouple data-logger unit that utilizes solid state technology designed to withstand the daily thermal cycles for years to come.
KICstart your Thermal Process Today!
Technical Specifications
1.Accuracy: ±1.2C
2.Resolution: Variable 0.3C to 0.1C
3.Internal Operating Temp: 0C to 105C
4.Thermocouple Compatibility: Type K, 6 channels
5.Temperature Range: -150C to 1050C
6.Power Requirements: Standard 9V alkaline battery
7.Thermal Receiver: 433.92 MHz (Dual Unit Model only)
8.Dimensions: See Temperature Tolerance Chart below for specifications
Datalogger Model: data is downloaded to the computer through a cable after the run.
Dual Unit Model:data is sent to the computer in real-time during the run. It is also stored internally for high-speed download after the run.
Computer Configuation
Minimum System Requirements
1.When KIC 2000 Software is running on the same computer as the Oven software, and/or when additional KIC 2000 Software options are installed, a faster CPU and more RAM may be required.
2.A USB to Serial Adapter may be required to connect the SlimKIC 2000 for profiling.
3.Contact KIC for issues with operating systems other than those listed.
400 MHz Processor, Celeron / 128 MB RAM1
1 GB available storage (for product history)
Video 1024 X 768 resolution / 16-bit
1 available serial port or USB port2
1 available parallel port or USB port for software key options
Microsoft® Windows® 2000 or XP3
