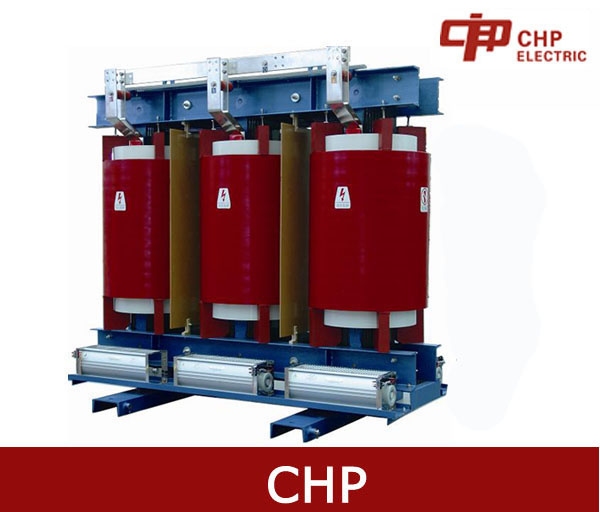

Resin Insulation Dry Type Power Transformer (S10)

Name: Resin Insulation Dry Type Power Transformer (S10)
Brand: china-manufacturer-directory.com
SKU: 709764635
Availability: InStock
Rating: 4.8 (58 reviews)

Supplier:	Yueqing Champn Electric Co., Ltd.
Price:	US $ 500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SC(ZB)9/10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	ISO9001, ISO14001
Certificate:	Kema Cesi Ctqc
Client:	Kplc, Rea, Pec
Advantage:	Best Price ,Quality and Service in China
Product Feature:	High Quality
Voltage:	10kv
Matarial:	Copper Winding Copper /Aluminum Winding
Package:	According to Client Request
Port:	Any Port in China
Export Markets:	Southeast Asia, Africa, The Middle East, etc
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Application:	Power

Product Description

Specifications

Dry transformer 10kv
1. Low loss
2. Energy saving, free from maintenance
3. Small size, light, and easy for installation

SC(ZB)9/10 10KV Series cast Resin
Dry-Type Power Transformer Price
Made In China

Transformer Specification:
1: Accord to Standards
GB1094.1-1196 GB1094.2-1196 GB1094.3-2003
GB1094.5-2003 GB/T6451-1196 GB/T10237-1988
JB/T10088-2004 GB
2. Dry transformer 10kv
3. SC(ZB)9/10-10kV
4.5 Years Quality assurance period
5. IEC60076&CE

Why choose us?
Yueqing Champn Electric Co., Ltd. Founded in 2002, is a high and new technology enterprise of scientific research, manufacture and marketing.
1. Top 10 in China.
2. ISO9001, ISO14001, OHSAS18001
3. Monthly Production Capacity-3000 sets Oil and Dry transformers
4. Prompt Reply Within 12 Hours
5. Six workshops with more than 200, 000 square meter

Payment terms
1 By T/T 30% in advance+ 70% before delivery
2 Negotiable

Packing
1 Packing Detail: Water-proof packages +Wooden case
2 Delivery Date: 30 days after confirmation of drawing

Port
Any China Port

Technical Data of 33kV SC(B)10 Cast Resin F Insulation Class Dry Type Power Transformer
				Loss(kW)			Impendance voltage	Insulation Level	Weight (kg)	Outline Dimension (mm)			Outline dimension with protective casing
Rated Capacity	Voltage Group(kV)		Connection Method		(120°C)	No-load current				(L)	(W)	(H)	(L)	(W)	(H)
(kVA)	HV	LV	Connection Method	No-load	Load	%
50				0.5	1.5	2.8	6		610	1000	870	1160	1700	1400	1330
100				0.7	2.2	2.4			915	1100	870	1350	1800	1400	1500
160				0.88	2.96	1.8			1200	1500	870	1380	2200	1500	1600
200				0.98	3.5	1.8			1400	1530	870	1420	2250	1500	1650
250				1.1	4	1.6			1600	1550	870	1450	2300	1500	1700
315				1.31	4.75	1.6		F/F	1800	1580	870	1550	2300	1600	1800
400			Dyn11	1.53	5.7	1.4			2200	1740	870	1710	2450	1600	1950
500	35~38.5	0.4		1.8	7	1.4			2500	1740	870	1900	2450	1600	2100
630			Yyn0	2.07	8.1	1.2			2900	1860	870	1980	2550	1700	2250
800				2.4	9.6	1.2			3500	1860	870	2180	2550	1700	2400
1000				2.7	11	1			4200	1900	1120	2265	2600	1800	2500
1250				3.15	13.4	0.9			4900	1950	1120	2355	2650	1800	2600
1600				3.6	16.3	0.9			5800	2000	1120	2380	2700	1800	2650
2000				4.25	19.2	0.9			6600	2100	1120	2480	2800	1800	2700
2500				4.95	23	0.9			7500	2200	1120	2550	2900	1800	2800
(Note): (Tapping range of high voltage) ±5%; ±2×2.5%, Frequency: 50Hz.

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
