Product Specifications
| Prod Model: |
ZY1431A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
250kHz-6GHz |
Product Description
Details
Product Overview

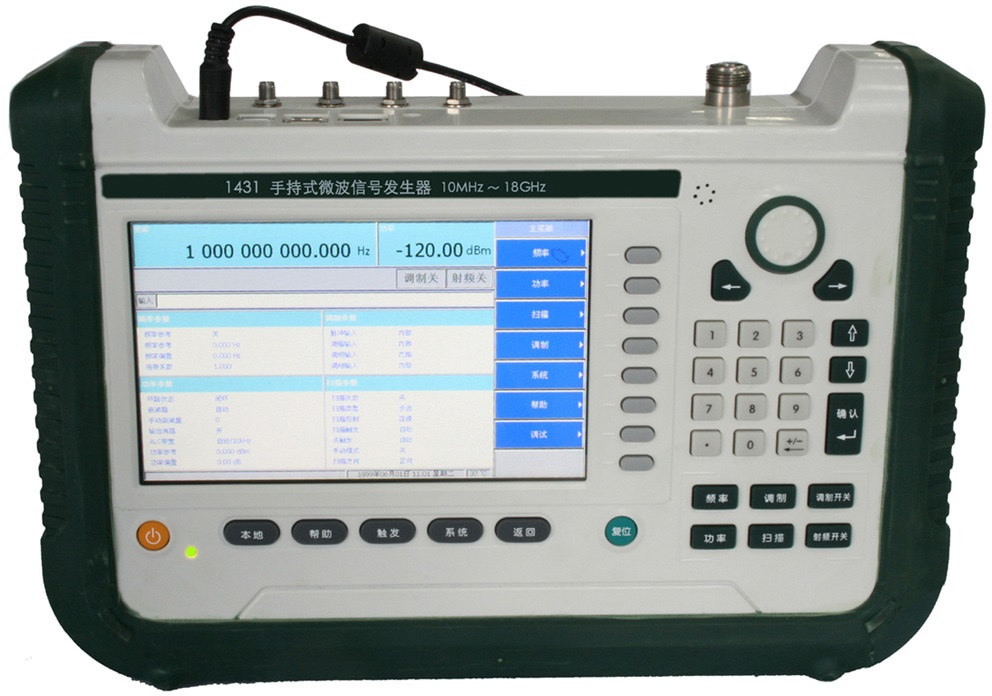

ZY1431 Portable Microwave Signal Generator and ZY1431A Portable RF Signal Generator are provided with a unified portable case, featured by high integrity, small size and little weight, and can be carried with ease, offering bilingual Chinese - English menu, friendly interface and operation easy to learn. Their output signals cover the frequency ranges of radio frequency and microwave respectively, in a high frequency resolution, wide dynamic range and multiple modulation functions. They are possible to work at two modes of power supply, delivering a superior property of energy saving, and incorporating rechargeable battery with large capacity that could support the unit to operate for a long time by one charging. They can also meet the requirements of testing during the installation, adjustment and field maintenance of most communication and radar countermeasure equipment. High cost performance further makes them ideal for testing in the fields such as colleges and universities, civil communications, etc.
Main Features
Small size, little weight, built-in battery, and completing field operation with ease
Friendly human-machine interface, bilingual Chinese-English menu, simple operation, easy to learn and use
Built-in modulation signal generator
Available in amplitude modulation, frequency modulation and pulse modulation functions
Available in two sweep types, List and Step
Perfect self-diagnosis function and self-testing of state
With LAN and USB interfaces through which standard program control command may be received to enable operation under program control
Available in intelligent power management function and energy saving working mode, dump energy indication and low battery warning
Small size, little weight, built-in battery, and completing field operation with ease
ZY1431 Portable Microwave Signal Generator and ZY1431A Portable RF Signal Generator have the same physical dimension, featured by small size and little weight. The built-in rechargeable battery with a large capacity could be easily replaced. The configuration with a large-capacity battery and a multipurpose bag could bring you the capability of a desktop unit and the convenience of a portable device, quite suitable for field service.
Chinese/English Operation Interface, Large TFT LC
Both ZY1431 Portable Microwave Signal Generator and ZY1431A Portable RF Signal Generator use large TFT LCD and Chinese and English operation interfaces by default and offer a panoramic view of the current state. The operation interface can be set in English according to different purposes and occasions for your convenience. The operation is simple and easy to learn, so you can easily master the operation skills without any special training.
High-performance Pulse Modulation
Both ZY1431 Portable Microwave Signal Generator and ZY1431A Portable RF Signal Generator come standard with high-performance pulse modulation function with modulation depth of over 60dB and minimum pulse width of 100ns. They support gated, external, etc. Many trigger modes and provide flexible and convenient solutions for radar pulse signal imitation.
Abundant Interfaces
ZY1431 Portable Microwave Signal Generator and ZY1431A Portable RF Signal Generator provide USB interface and LAN etc. Additional expansion interfaces through which standard program control command may be provided so as to help you realize the functions of remote control; Meanwhile, they also provide reference input/output interfaces, pulse input, monitor output and sync output etc. Interfaces for the user's convenience.
Model
|
ZY1431
|
ZY1431A
|
Frequency Range
|
10MHz~18GHz
|
250kHz~4GHz
|
Frequency Resolution
|
10Hz
|
1Hz
|
Reference Frequency
|
Nominal frequency: 10MHz; aging rate: ± 1*10 -6 /year, ± 1*10 -8 /day
|
Sweep Mode
|
Step Sweep, List Sweep
|
Harmonic
|
≤ -30dBc
|
SSB Phase Noise
(dBc/Hz)
|
≤ -76dBc/Hz 5GHz@20kHz
≤ -70dBc/Hz 10GHz@20kHz
≤ -64dBc/Hz 18GHz@20kHz
|
≤ -96dBc/Hz 500MHz@20kHz
≤ -90dBc/Hz 1GHz@20kHz
≤ -84dBc/Hz 2GHz@20kHz
≤ -78dBc/Hz 4GHz@20kHz
|
Output Power Range
(25± 10)
|
Without attenuator option: -15dBm~+7dBm
With attenuator option: -110dBm~+5dBm
|
Without attenuator option: -20dBm~+7dBm
With attenuator option: -120dBm~+5dBm
|
Power Accuracy
(25± 10)
|
Without attenuator option: ≤ ± 1.5dB
With attenuator option:
-5dBm< P≤ +5dBm: ≤ ± 1.5dB
-60dBm< P≤ -5dBm ≤ ± 3.0dB
-90dBm< P≤ -60dBm ≤ ± 4.0dB
|
Without attenuator option: ≤ ± 1.5dB
With attenuator option:
-5dBm< P≤ +5dBm ≤ ± 1.5dB
-60dBm< P≤ -5dBm ≤ ± 2.5dB
-90dBm< P≤ -60dBm ≤ ± 3.5dB
|
Modulation Performance
|
Pulse
Modulation
|
Pulse modulation on/off ratio: ≥ 60dB
Pulse modulation rise/fall time: ≤ 40ns
|
Amplitude Modulation
|
Modulation mode: linear mode, exponential mode
Modulation rate (3 dB bandwidth): DC~10kHz
Modulation error: ≤ ± 6% (1kHz modulation rate, modulation depth 30%, output power 0dBm, linear mode)
|
Frequency Modulation
|
Modulation rate: 20Hz-10kHz;
Max. frequency offset: 100kHz
Accuracy (1kHz rate, FM deviation 100kHz): ≤ ± 6%
|
Other Properties
|
RF Output Port
|
Type N (female)
|
Display
|
TFT-LCD
|
Operation Interface
|
Chinese/English
|
Dimension
|
313mm*211mm*78mm
|
Weight
|
5kg
|
Power Consumption
|
30W
|
20W
|
Power Supply Mode
|
DC, rechargeable battery
|
Battery Service Life
|
2 hours
|
4 hours
|
Operating Temp.
|
0~+50
|
