Product Specifications
| Prod Model: |
ZY1442 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
250kHz-6GHz |
Product Description
Details
Product Overview:

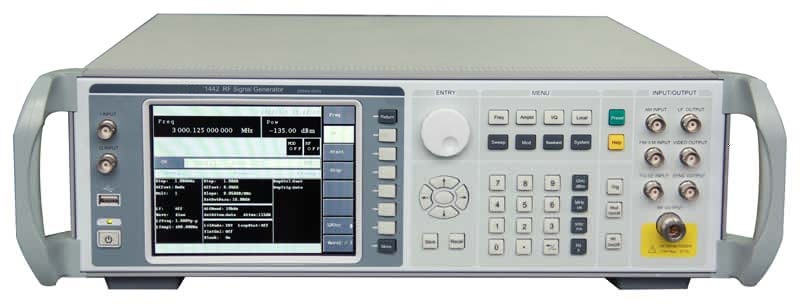

ZY1442 RF Signal Generators are completely new products designed and developed for communication applications by using the latest technology, covering all commonly-used ranges of radio frequency. Designed with modular structure, all Chinese interfaces, large LCD menu control, extremely low phase noise of output signal, high frequency resolution and accuracy and wide output dynamic range, they are available in abundant analog modulation, digital modulation and program control functions etc. This product can provide complex high-performance analogue signals for testing on communication and radar equipment in product research & development, production, detection and maintenance, etc.
Main Characteristics:
Extremely low phase noise and high pure spectrum
Power output of +7dBm~-135dBm
Available in abundant analogy modulation and digital modulation functions
Optional 1Hz~1MHz low frequency signal generator
Chinese/English operation interfaces
List sweep and step sweep
Update with USB Disk
Large LCD operation interface
Designed with completely independent software, ZY1442 RF Signal Generator uses large screen and Chinese operation interfaces which offers a panoramic view of the current state. The operation interface can be set in English according to different purposes and occasions for your convenience.
Extremely low phase noise and high pure spectrum
ZY1442 RF Signal Generator provides good close-to-carrier phase noise (-124dBc/Hz, measured at 1GHz and 20kHz) and excellent spectrum purity, which can satisfy the test requirements for pure radio frequency and stimulus signals in radar system development and satellite communications.
Update with USB Disk
With the wide application of USB Disk to modern life, ZY1442 RF Signal Generator provides a USB interface available for smart software update and data backup through which you can easily use a USB disk to update software and maintain the instrument, thus this function is simple and convenient and practical.
Expansion of rear panel function
ZY1442 RF Signal Generator provides RS232 interface, GPIB interface, LAN interface, base-band output interface etc. Additional expansion interfaces for system building during which LAN interface can be used to achieve the functions of remote control and network update, etc. For user's convenience.
Typical Applications:
Relying on its powerful functions, ZY1442 Radio Frequency Signal Generator has become widely-used modern intelligent radio frequency measuring instrument, which can provide complex analogy signal for testing on dynamic range, sensibility, adjacent channel property, digital modulation performance etc. Internal and external channel's performance index of high-performance transmitter and receiver of various radar and communication equipments as well as local oscillator substitution, distortion test, phase noise test, etc. Fields.
