Synthesized Signal Generators

Product Specifications

Prod Model:	ZY1464
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	250kHz-6GHz

Product Description

Product Overview

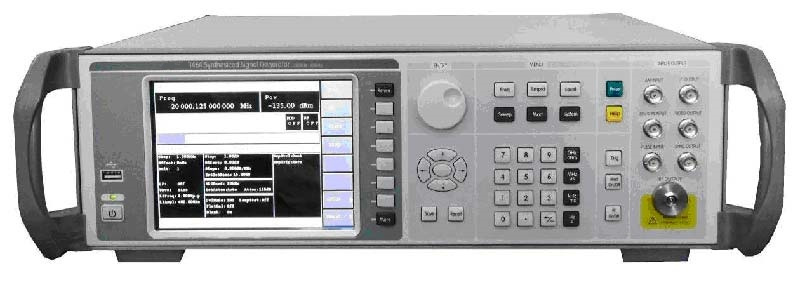

ZY1464 Series Synthesized Signal Generator are microwave synthesized signal generator products with world-class performances introduced recently by the 41st institute. With high pure signal quality, adjustable power output with a 146dB dynamic range and 0.001Hz frequency resolution, it can meet your high accurate test requirement. The standard dual-channel internal modulation signal generator and internal pulse generator provide comprehensive AM, FM, ?M and pulse modulation capabilities and avoid the annoyance of selecting from numerous options. Using Chinese and English operation interface and large TFT large TFT LCD can better meet the demands of domestic users. This product is an ideal LO source and clock source, and also can generate high quality analog signals, mainly used in the comprehensive assessment of electronic system performances, test on high-performance receiver and test on parameters of components and parts. It applies to many fields, such as aviation, spaceflight, radar, communication, navigation equipment.
Main Features:
High Pure Signal Quality
High Accurate Power Output in -120~+11dBm Large Dynamic Range
Standard Internal Modulation Signal Generator and Pulse Generator
Excellent Broadband DCFM & DC?M Function
High Accurate Linear AM and Exponential AM
High-performance Pulse Modulation
170GHz Frequency Multiplying Source Module Spread Spectrum
Chinese/English Operation Interface, Large TFT LCD
Frequency Step & List Sweep
Auto Software Update with a U Disk

High Pure Signal Quality
ZY1464 Series Synthesized Signal Generator provides high quality test signals, good close-to-carrier phase noise as well as excellent harmonic and non-harmonic performances, which can satisfy the test requirements in radar system development & satellite communications for pure radio frequency and microwave stimulus signals.

High Accuracy Power Output in -120~+11 dBm Large Dynamic Range
ZY1464 Series Synthesized Signal Generator can provide -120dBm signal output within 40GHz frequency span with the built-in programmable step attenuator and the typical maximum output power is greater than +10dBm to meet your test requirements.

Excellent Analog Modulation
The ZY1464 Series Synthesized Signal Generator comes standard with good analog modulation capability as well as AM, FM, ?M functions and supports the inputs of internal and external modulation sources. It has excellent DCFM capability with modulation rate up to DC~10MHz and good DC?M capability with modulation rate up to DC~1MHz. It has two kinds of work modes: linear AM and exponential AM. The depth of the linear AM is greater than 90%. It also provides comprehensive solutions to generate high quality analog signals.

High-performance Pulse Modulation
The ZY1464 Series Synthesized Signal Generator comes standard with high-performance pulse modulation function. When the output frequency is greater than 3.2GHz, its modulation depth is greater than 80dB and its modulation rate is smaller than 20ns and its minimum pulse width is 40ns. It supports gated, external, etc. many trigger modes. It has double-pulse output capability and provides flexible and convenient solutions for radar pulse signal imitation.

110GHz Frequency Multiplying Source Module Spread Spectrum (Standard)
The ZY1464 Series Synthesized Signal Generator comes standard with a frequency multiplying source module interface to which the waveguide Series frequency multiplying source modules of 41st institute can be added to spread output frequency to 110GHz, which provides a simple, quick, low-cost solution for high quality millimeter-wave signal generation.
