RF-Ssi Magnetostrictive Position Sensor

Name: RF-Ssi Magnetostrictive Position Sensor
Brand: China-Manufacturer-Directory.com
SKU: 699798915
Availability: InStock
Rating: 4.9 (71 reviews)

Supplier:	Nanjing Gaohua Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	RF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	500-10000mm
Ssi Signal:	24, 25, 26 Binary Digit or Gray Code
Resolution:	2/5/10/20/50/100 Um
Input Voltage:	24VDC(-15/+20%)
Polarity Protection:	up to -30VDC
Overvoltage:	up to 36VDC
Pressure Rating:	350 Bar/700 Bar Peak
Certification:	CE,RoHS,ISO9001

Product Description

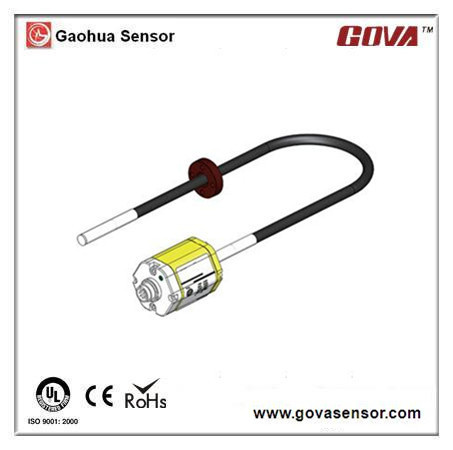

RF-SSI Linear Position Sensor

Feature

Flexible measuring rod, wide measuring range but small replacing space.
Absolute location output, no need to return to zero.
Non-contact measurement, no physical deterioration forever.
LED for sensor diagnostics

The RF series is suitable for wide range measuring, but small Flexible replacing space occasion. The flexible measuring rod not only can measure straight line position, but also can measure curve line position. Compared to the inflexibility, on the one hand, the flexible measuring rod is drastically reducing the space which the replacing or installing required, on the other hand, it relieves the difficulties of transport.

	Analog output	SSI output
Project name	Parameter/Index	Parameter/Index
Stroke lengths	500-10000mm	500-10000mm
Out put	4~20mADC; 0~10VDC	24,25,26bit Binary or gray yards
Resolution	16bitD/A	2/ 5/ 10/ 20/ 50/100um
Linearity
Repertability
Frequency response	Range related	Range related
Input voltage	24VDC (-15/+20%)
Operating temperature	- 40°C~+85°C
Protection	Without a protection tube IP30, load, electronic header :IP67
Thread	M4X59 , M18X1. 5

Electric feature
Outgoing line	Straight out of the cable,or 7 lamp pith aircraft connector
Input voltage	24VDC(-15/+20%)
Working current	<50mA(changing depends on F.S.)
Polarity protection	max.-30VDC
Overvoltage protection	max.36VDC
Insulating ability	500V(between the signal GND and the housing)
Fault indication	Red & green LED pilot lamp.
Structure&Material
Head	Stainless steel 304L
External tube for protection	Stainless steel 304L,Flexible measuring pipe.
Flange fixed	Stainless steel 304L(Selective pairing)
Installation& Accessories
Direction	Random
Mode	2 screws M459 for the sensor, external anti-pressure pipe M181.5
Moving Magnetic	Magnetic ringsOD33, Magnetic rings OD25.4,

Nanjing Gaohua Technology Co., Ltd is located in Nanjing, Jiangsu Province, China and built in 2000, which is an ISO9001: 2008, CE and RoHS qualified OEM SENSOR-manufacturer and professional exporter (exporting to more than 20 countries). Our present workshop covers about 4000 square meters, meanwhile we have our own advanced sensor-developing center, production center, purification center, testing center and metal processing center.

We have own patents of key technology and concentrates on pressure sensors R&D, producing variety of sensors/ transducers/ transmitters (such as pressure, temperature, humidity, Acceleration, Angle, Position, Level etc. ).

With reliable quality and reasonable price, our products are widely used in the process measurement &control of Engineering machinery/ Automotive/ Medical/ Rail transit/ Mine/ Ship/ Internet industry etc.

For important projects which refer to various sensors, we offer one-stop service including customized sensors, standard production and agent procurement.

We looking forward to coorperate with you!
