Jinan Saijun CNC Technology Co., Ltd. >> Rigid Polyurethane Spray Foaming Insulation Machine (FD-411B)

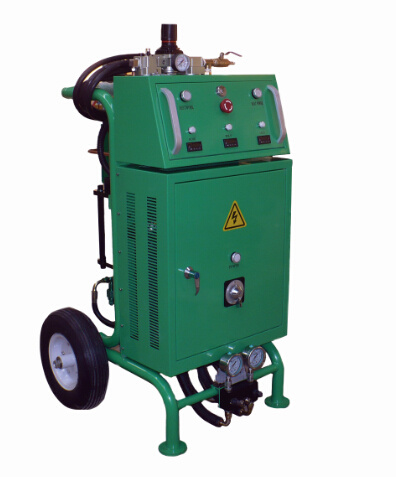

Rigid Polyurethane Spray Foaming Insulation Machine (FD-411B)

Name: Rigid Polyurethane Spray Foaming Insulation Machine (FD-411B)
Brand: China-Manufacturer-Directory.com
SKU: 673319502
Availability: InStock
Rating: 4.4 (51 reviews)

Supplier:	Jinan Saijun CNC Technology Co., Ltd.
Price:	US $ 4000-5000/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	CIF

Product Specifications

Prod Model:	FD-411B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gun Type:	Spray/Injection(Changeable Nozzle)
Gun Clean Mode:	Self Clean by Air
Color:	Customized
Heater Power:	6000W Each One
The Ratio Of Raw Material:	1: 1(Fixed)
Max Fluid Temperature:	88 Centigrade
Air Motor Diameter:	6 Inch
Max Working Pressure:	23 Mpa (230 Bar)
Max Output:	10kg/Min (22 Lb/Min)
The Viscosity Range Of Raw Material:	200-1000cps (Under The Operate Temperature)
Automation:	Automatic
Type:	Polyurethane Foam Machine
Computerized:	Computerized
Certification:	CE
Principle:	High-Pressure Air Type
Raw Material:	Mixing

Product Description

PU FOAM SPRAY MACHINE
Jinan Saijun CNC Technology Co., LTD

Tel: 86-531-62325947/86-152-6912-3787 Fax: 86-531-62325947
Web: www.saijunpu.com
Address: North of Yingxiu Road, High-teach Development Zone, Jinan, Shandong, China.

Standard:

SHOW

Technical Data
The ratio of raw material	1:1(Fixed)
The viscosity range of raw material	200-1000CPS (Under the operate temperature)
Max working pressure	23 MPa (230 bar)
Max fluid temperature	88degree(190F)
Max Output	10kg/min (22 lb/min)
Air motor diameter	6 feet
Heater power	4500W each one
Heating hose power	1000W/15m
Whole power	10500W
Voltage	230V 1-ph/400V 3-ph
Operate temperature	0-70degree
Clean mode	Self-clean by air
Max heating hose length	295 feet (90m)
Pneumatic source	1MPa(10 bar,145 psi)
Machine size 900mm820mm1150mm 1450mm400mm550mm
Gross weight 220KG

Standard configuration

Proportion Fixed Mainframe 1 set

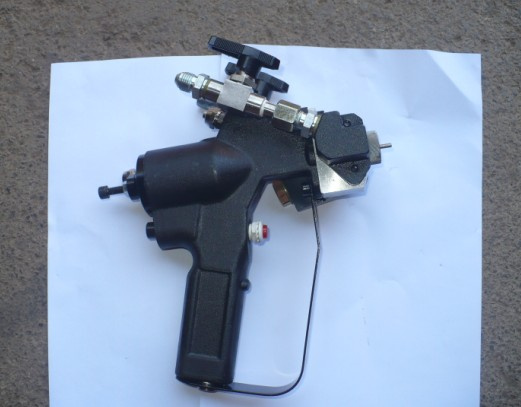

Self-cleaning foaming(spray or injection)gun 1 set

Feeding pump 2 sets

Heating hose 49.2 feet (15m)

Connecting hose from feeding pump to machine 10 feet(3m)

Connecting hose from heating hose to gun 5 feet(1.5m)

Rings and Tools

Item	FD-411 Polyureathane foam machine
Price(FOB qingdao)	XX$USD
Terms of payment	100% T/T in advance
MOQ	1set
Delivery time	Within 30 working days after T/T
warranty	18 mouths

Jinan Saijun CNC Technology Co., Ltd is located in the advanced and new technology development district in the east of Jinan, Shandong, China.

The company devotes into the development, production and sales of mechanical and electrical products of laser engraving machine, laser cutting machine and high pressure foaming spray/injecting machine.

We have abundant technology power, professional and crack sale staff. There are sale agency and after-service center in most provinces of China. And we are marching into the international markets with our excellent products and after-sale services.

Our company has been devoting into the spending of intelligence. And several core technologies are researched and developed by ourselves. So the products are in with more priority than others. We also design and develop special facilities according to the customers' special orders.

If you are interested in our products, kindly contact us feel free! We will do our best for all of you!
