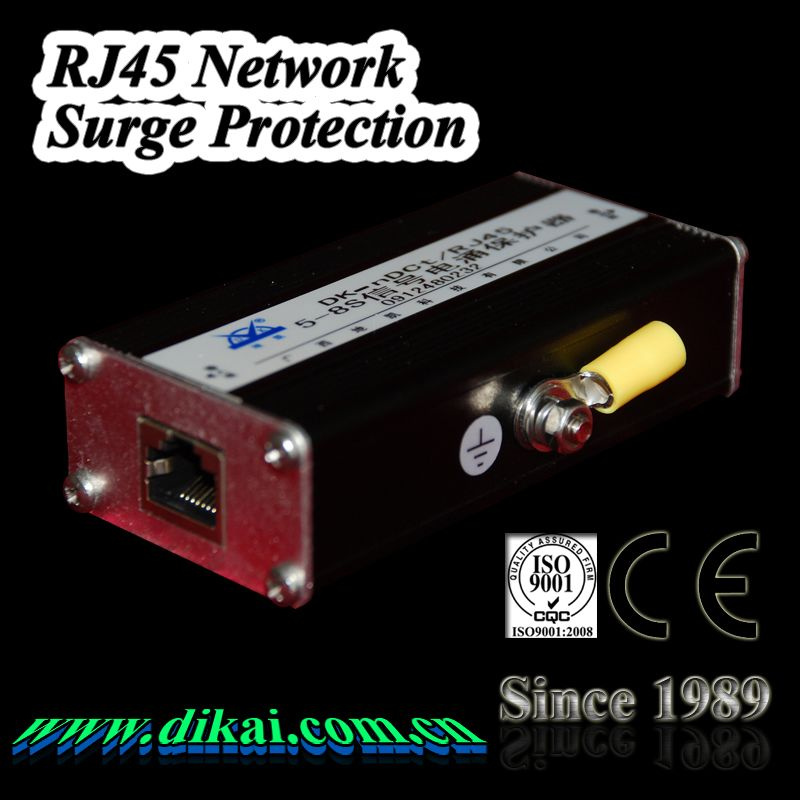

RJ45 Computer LAN Network Surge Protector

Name: RJ45 Computer LAN Network Surge Protector
Brand: China-Manufacturer-Directory.com
SKU: 683653305
Availability: InStock
Rating: 4.8 (118 reviews)

Supplier:	Guangxi Dikai Sci & Tech Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	DK-nDCt RJ45
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Housing Material:	Aluminum
Housing Protection Level:	IP20
Nominal Discharging Currents In:	5ka (8/20)Us
Maximum Discharging Currents Imax:	10ka (8/20)Us
Line-Line Limiting Voltage:	<30V
Line-PE Limiting Voltage:	<90V
Transmission Rate:	100m
Insert Loss:	<0.5dB
Impedance:	0.5 Omega
Dimension:	88x45x25mm
Structure:	Network
Installation:	RJ45 Connector

Product Description

RJ45 Computer LAN network surge protector

Applicable Scope
1. Power and Signal Lightning Protection of Floor Network Exchange
2. Power and Signal Lightning Protection of Network Exchange in Computer Room

Character
1. Maximum Discharging Currents 10kA
2. Standard RJ45 Network Connector Surge Over-load Voltage Protection
3. 19" Standard Rack Installation
4. Multi Grades Earth Discharging Circuit, Lower Limiting Voltage
5. High Speed Transmission Rate, Low Loss
6. RJ45 Crystal Input and Output Socket

Brief Introduction
RJ45 Computer LAN Network Surge Protector is designed according to the IEC Standard

This product is suitable for the Lightning Protection of 10/100M Network equipment.

Mode of connector of this product is standard RJ45, Protection Cores can be 8 (12, 36, 45, 78) lines. Maximum 24 routes standard RJ45 ports can be protected. 19" standard rack installation, easy maintenance.

8/20us Maximum Discharging Currents Imax can be 10kA/line, quick respond, suitable for the lightning protection of High Speed Internetwork.

Item	DK-nDCt/RJ45
Type	5-8S Signal SPD	5-4S Signal SPD
Shell Material	Aluminum Shell
Shell Protection Level	IP20
Working Temperature	-40 ºC—+85ºC
Nominal Discharging Currents In(8/20us) (kA)	5
Maximum Discharging Currents Imax(8/20us) (kA)	10
Line-Line Limiting Voltage (V)	≤10
Line-PE Limiting Voltage (V)	≤90
Transmission Rate (bit/s)	100M
Insert Loss(dB)	≤0.5
Impendance (Omega)	0.5
Connector Type	RJ45
Weight (kg)	0.17	0.16
Dimension (mm)	88X45X25
Quantity of Core Line under Protection	1,2,3,6 (fine protection) 4,5,7,8 (rough protection)	1,2,3,6
Art. No.	1008007	1008006
