Product Specifications
| Prod Model: |

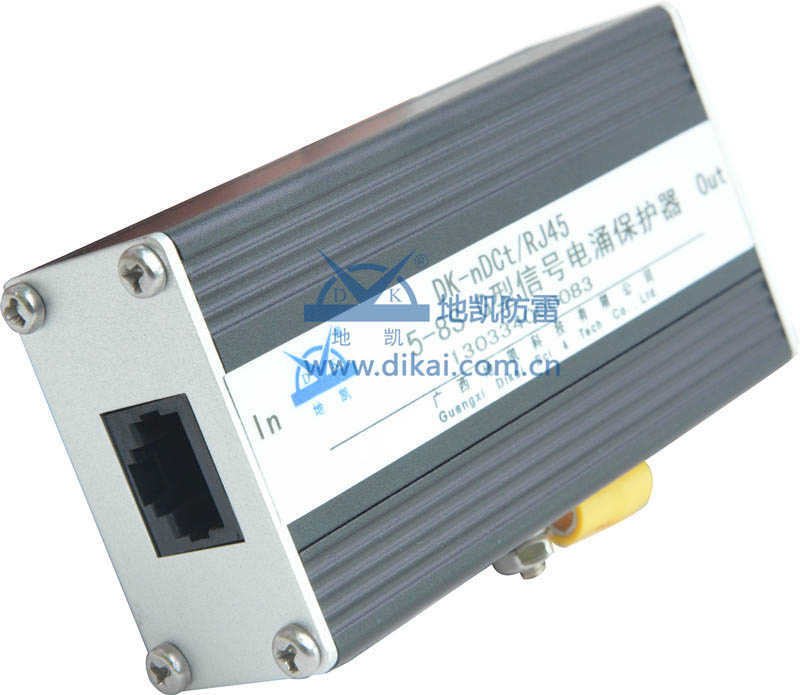

DK-nDCt/RJ45 Gigabit Type Surge Protector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item No.: |
Dk-Ndct/RJ45 |
| Type: |
Signal Type Arrester |
| Structure: |
Protective Gap |
| Installation: |
in Series |
| Brand: |
Dikai |
Product Description
1. ISO9001-2008 Certified.
2. Surge Protector Manufacture.
Applicable Scope
Lightning protection for the network exchange board RJ45 connector in the Computer Room
Lightning protection for the network card
Lightning protection for the floor exchange board
Lightning protection for other network equipment with RJ45 connector
Character
Maximum Discharging Currents is 10kA
Over Voltage surge protection for the RJ45 connector
Multi classes grounding discharging circuit, lower limiting Voltage
High Transmission Rate, low insert loss
Input and output with RJ45 Crystal terminal
Brief Introduction
RJ45 serial 10/100M network signal SPD is designed according to the IEC standard.
This product is suitable for the 10/100M network equipment lightning protection.
The connector of this product is standard RJ45, Lines under the protection can be 4 or 8 (12, 36 or 12, 36, 45, 78), easy installation and maintain.
8/20us Maximum discharging currents Imax can be 10kA/line, quick respond time. It is suitable for the internet work lightning surge protection.
| Item | DK-nDCt/RJ45 |
| Type | 5-8S Signal SPD | 5-4S Signal SPD |
| Shell Material | Aluminum Shell |
| Shell Protection Level | IP20 |
| Working Temperature | -40 °C~+85°C |
| Norminal Discharging Currents In(8/20us) (kA) | 5 |
| Maximum Discharging Currents Imax(8/20us) (kA) | 10 |
| Line-Line Limiting Voltage (V) | ≤10 |
| Line-PE Limiting Voltage (V) | ≤90 |
| Transmission Rate (bit/s) | 100M |
| Insert Loss(dB) | ≤0.5 |
| Impendance (Omega) | 0.5 |
| Connector Type | RJ45 |
| Weight (kg) | 0.17 | 0.16 |
| Dimension (mm) | 80X45X25 |
| Quantity of Core Line under Protection | 1,2,3,6 (fine protection) 4,5,7,8 (rough protection) | 1,2,3,6 |
| Art. No. | 1008007 | 1008006 |
Guangxi Dikai Sci & Tech Co., Ltd. Was established in June 1989, which specializes in the development and production of lightning protective products, and the research and service of lightning protective technology. It has been a top lightning protection company in China after more than 20 years of development. The company now has a top-ranking lightning protection test center, a lightning proving ground, an intellectualized building for scientific research. The products of the company have won more than 10 national patents and possess ISO 9001: 2000 certificate and CE certificate.
