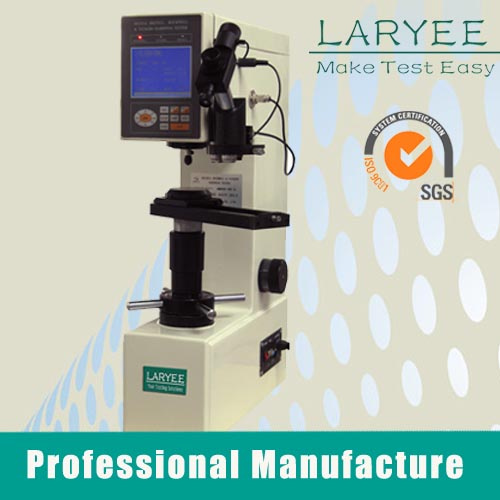

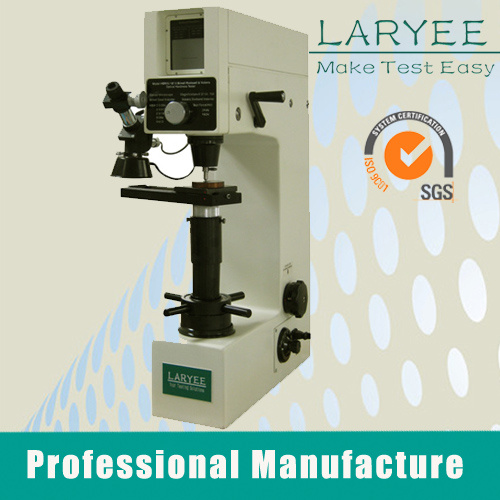

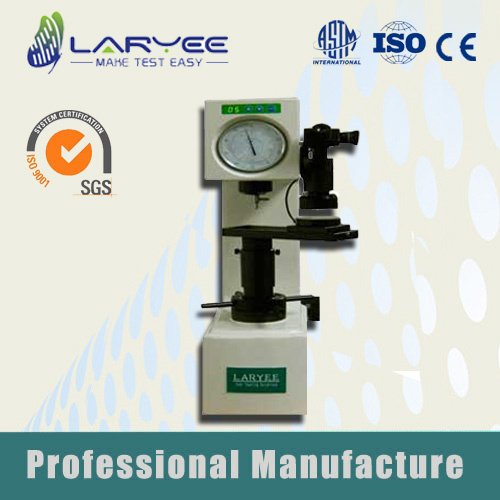

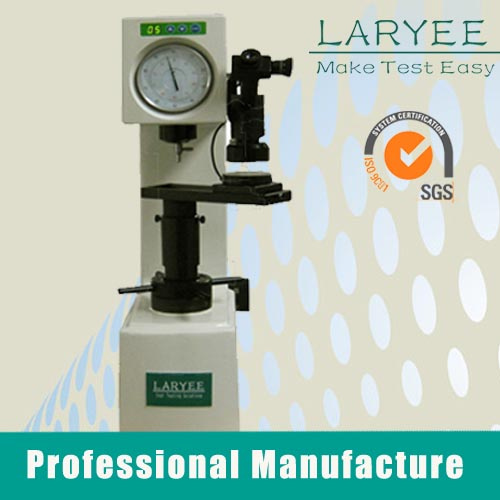

Rockwell, Brinell and Vickers Universal Hardness Tester

Name: Rockwell, Brinell and Vickers Universal Hardness Tester
Brand: china-manufacturer-directory.com
SKU: 675239782
Availability: InStock
Rating: 4.4 (63 reviews)

Supplier:	Laryee Technology Co., Ltd.
Price:	US $ 2700-9500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	HBRV-187.5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Universal Testing Machine
Rockwell Scales:	Hra, Hrb, HRC
Brinell Scales:	Hbw2.5/31.5, Hbw2.5/62.5, Hbw5/62.5, Hbw2.5/187.5
Vicker's Scales:	Hv30, Hv100
Preliminary Test Force:	98n(10kgf)
Application:	Alloy
Standard:	ASTM
Type:	Brinell ,Rockwell,Vickers
Measuring Range:	Hb,Hr,Hv

Product Description

It serves the purpose of measuring the hardness of ferrous, non-ferrous
Metals, hardmetals, carburized layers and chemical treating layers.

HBRV-187,5

HBRVU-187.5

HBRVS-187.5

Model	HBRV-187.5	HBRVU-187.5
Rockwell scales	HRA, HRB, HRC	HRA, HRB, HRC
Brinell scales	HBW2.5/31.5, HBW2.5/62.5, HBW5/62.5, HBW2.5/187.5
Vicker's scales	HV30, HV100
Preliminary test force	98N(10kgf)
Rockwell test load	588N(60kgf),980.7N(100kgf),1471N(150kgf)
Brinell test load	294.2N(30kgf),306.5N(31.25kgf),612.9N(62.5kgf),980.7N(100kgf),1839N(187.5kgf)
Vickers test load	294.2N(30kgf), 980.7N(100kgf)
Magnification of microscope	37.5X and 75X
Loading control	Automatically	Hand
Max. height of specimens	170mm(Rockwell hardness) 100mm(Brinell, Vickers hardness)	160mm
Distance from indenter's center to OuterWall	165mm	200mm
Duration time	2-60S
Machine size (DxWxH) (mm)	520×215×700	560×260×767
Power supply	AC220V/50Hz ,AC110V/60Hz
Weight (kg)	80	90
Standard accessories	Diamond Rockwell indenter, Diamond Vickers indenter, Ø1.5875mm hard alloy ball indenter, Ø2.5mm, Ø5mm hard alloy ball indenter, Testing table (large, medium, "V"), Standard hardness block ( Rockwell, Brinell, Vickers ), Power cord Weight (0#,1#,2#,3#,4#), 15X microscope eyepiece, 2.5X objective, 5 X objective lens

Laryee Technology is a top leading Chinese testing equipment and instrument product manufacture and solution system integration supplier.Our Headquater is located in Beijing, China.And also we have two factories which invested by LARYEE base both in Beijing and Jinan, Shandong provice.According to all kinds of testing requirement of GB, ISO, ASTM, BS EN and etc, our international technician and business team can offer our different field customer best testing solutions and general or special equipments.

Laryee's nice new products, superior technology, excellent quality and well service have won the customers all over the world.Nowadays, Laryee has the good relationship with many customers such as Southeast Asia, Middle East, Latin America, Africa, European and so on.
