Andeli Group Co., Ltd. >> RoHS Multi Range Timer (AH3)

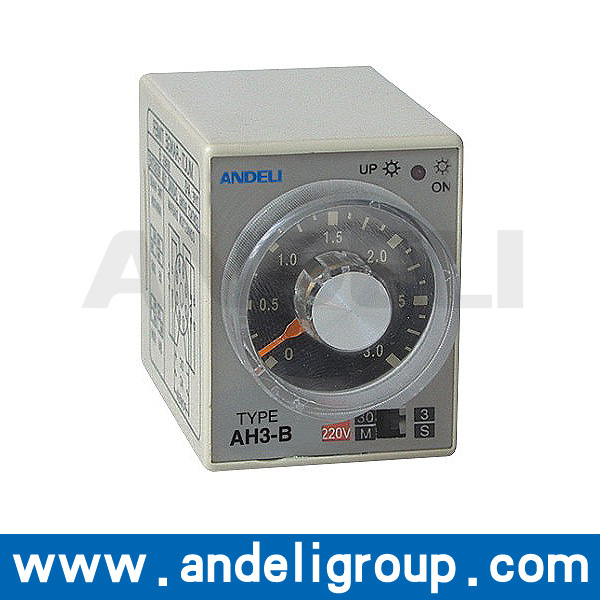

RoHS Multi Range Timer (AH3)

Name: RoHS Multi Range Timer (AH3)
Brand: China-Manufacturer-Directory.com
SKU: 733954495
Availability: InStock
Rating: 4.5 (28 reviews)

Supplier:	Andeli Group Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	AH3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	AC12, 24, 110, 220, 240 ,380V. DC12, 24V
Theory:	Mechanical
Usage:	Industrial
Type:	Timer
Function:	Addition Counter
Carry Mode:	Synchronous Counter
Carry Base:	Module-n Synchronous Counter
Mechanism:	Electronic

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Classification			Multi Range Timer			Multi Range Timer			Multi Range Timer
Specification Model			AH3-3			AH3-B			AH3-NB
Dimension			50H × 40W × 57.5D			50H × 40W × 57.5D			50H × 40W × 57.5D
Mounting & Socket		Surface(-N)	PF083A (E)			PF083A (E)			PF083A (E)
		Flush(-Y)	US-08 P3G-08			US-08 P3G-08			US-08 P3G-08
Full Timing Range			SEC:1,3,6,10,12,30,60 MIN:3,6,10,12,30,60 HR:3,6,10,12,30			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H
Rated Voltage (V)			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24
Indicator Operating			ON-UP operating			ON-UP operating			Time operating flicker
O/P Contact	Model		AH3-1	AH3-2	AH3-3	AH3-1	AH3-2	AH3-3	Model A/B
	Time Limit 1C		5A		5A			5A		5A
	Time Limit 2C			5A		5A			5A
	Instantaneous 1C				5A		5A	5A		5A
Life	Mechanical		5×106?Times			5×106?Times			5×106?Times
	Electrical		105?Times			105?Times			105?Times
Accuracy	Repeat Error		±1% max			±1% max			±1% max
	Setting Error		±10% max			±10% max			±10% max
	Voltage Error		±1% max			±1% max			±1% max
	Temp Error		±2% max			±2% max			±2% max
Reset Time			0.1 sec max			0.1 sec max			0.1 sec max
Consumed Power			3VAC			3VAC			3VAC
Ambient temperature			-10oC~+55oC			-10oC~+55oC			-10oC~+55oC
Ambient Huminity			48~85% RH			48~85% RH			48~85% RH
Weight			160g			160g			160g
