| Supplier: | Jinan Saijun CNC Technology Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Set |
| Quantity:: | |
| Trade Terms: | FOB,CIF,CIP |
|
|
| Prod Model: | FD-411A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Fd-411A |
| Voltage: | 230V 1-pH/400V 3-pH |
| Clean Mode: | Self-Clean by Air |
| Max Hose Length: | 295 Feet(90m) |
| Max Working Pressure: | 23mpa (230bar) |
| Max Output: | 10kg/Min(22lb/Min) |
| Automation: | Automatic |
| Type: | Polyurethane Foam Machine |
| Computerized: | Computerized |
| Certification: | CE |
| Principle: | High-Pressure Air Type |
| Raw Material: | Mixing |

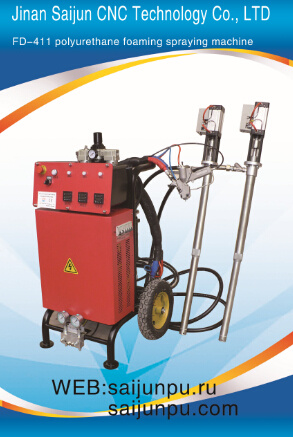

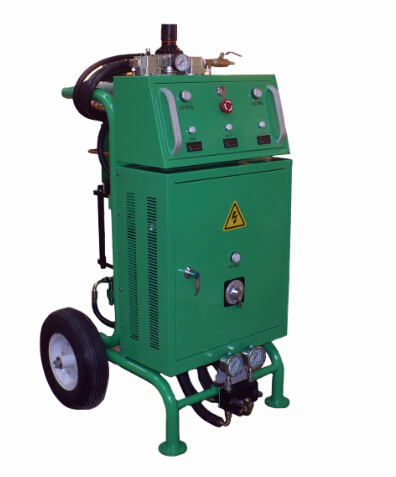

CNC Polyurethane Spray Foaming Machine
With the progress of human society, there is a great demand increase on the proportion fixed spraying equipment for polyurethane. Jinan Saijun CNC Technology CO., Ltd develops and manufactures proportion fixed equipment FD-411
Standard configuration:
Proportion Fixed Mainframe: 1 set
Self-cleaning spray/injecting gun: 1 set
Heating and preserved pipe: 49.2 feet (15m)
Connecting pipe for spray gun: 4.9 feet (1.5m)
Transfer pump: 2 sets
Technical parameter:
Electrical requirements single-phase: 220V 50Hz 30A
Compressed air requirements: 116psi(0.7Mpa) ,28CFM(1m³/min)
Output: 10kg/min

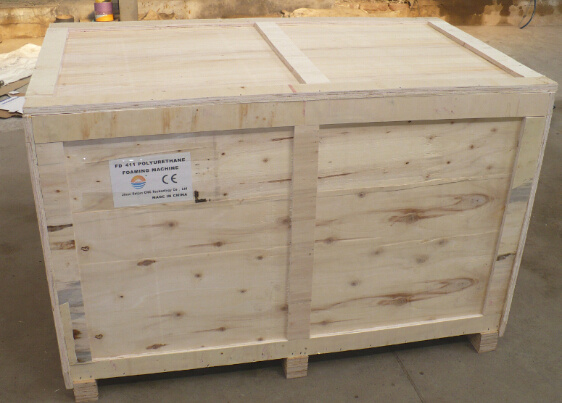

Shipping parameter:
G.W.: 220kg
Host and accessories box Volume: 820*900*1150mm
Heating box Volume: 1450*400*550mm
Item
Specifications PU foaming machine for:
Advantage:
Company:
Jinan SaiJun CNC Technology Co., Ltd., located in the eastern Jinan High-tech Zone Technology Industrial Development Zone, is a collection research and development, production and sales of polyurethane foam machine equipment as one of the specialized companies.
Our range of product markets:
Europe,
North and South America,
Australia,
the Middle East,
Russia,
and other more than 30 countries worldwide.
Why choose us?
1.Our product quality assurance, user feedback well, our products have passed the quality system certification in Europe.
2.Our service system is perfect, we have professional R & D team, the system's production line, a professional electrical engineer, experienced, our service staff will reply to you in the first time in the machine during use any queries. If the machine has any problems, we will within 12 hours to solve the problem
|
Item |
FD-411 Polyurethane spray machine. |
|
Standard configuration |
Proportion Fixed Mainframe 1 set |
|
Self-cleaning spray gun 1 set |
|
|
Feeding pump 2 sets |
|
|
Heating hose 49.2 feet (15m) |
|
|
Connecting hose from feeding pump to machine 10 feet(3m) |
|
|
Connecting hose from heating hose to gun 5 feet(1.5m) |
|
|
Rings and Tools |
|
|
Technical Data |
The ratio of raw material 1:1(Fixed) |
|
The viscosity range of raw material 200-1000CPS (Under the operate temperature) |
|
|
Working pressure 20 MPa (200 bar) |
|
|
Max fluid temperature 88°C (190°F) |
|
|
Max Output 10kg/min (22 lb/min) |
|
|
Heater power 6000W each one |
|
|
Heating hose power 1000W/15m |
|
|
Max hose length 60m (196 feet) |
|
|
Whole power 13500W |
|
|
Voltage 230V 1-ph/400V 3-ph |
|
|
Operate temperature 0°C-70°C |
|
|
Clean mode Self-clean by air |
|
|
Max heating hose length 196.8 feet (60m) |
|
|
Pneumatic source 1MPa(10 bar,145 psi) |
|
|
Machine size 870mm*700mm*1150mm 1450mm*400mm*550mm |
|
|
Gross weight 250KG |
