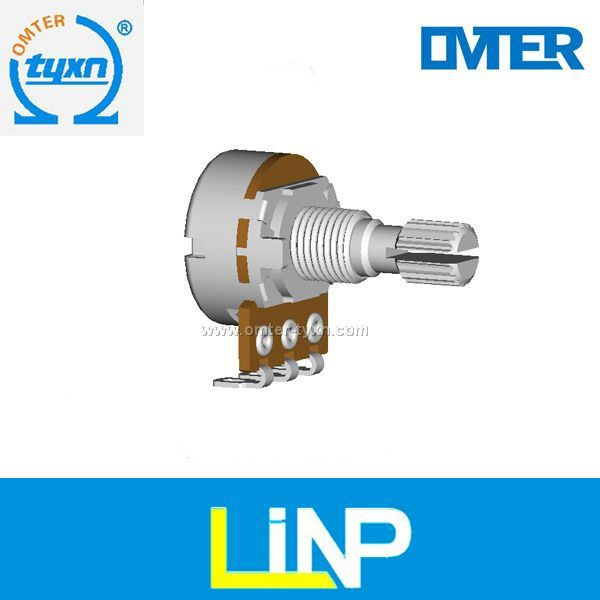

Product Specifications
| Prod Model: |
F-16KNP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Omter |
| Rated Power: |
2W |
| Resistance Tolerance: |
+-15% |
| Perating Temperature: |
-55 Degree to +125 Degree |
| Mechanical Travel: |
360° |
| Dielectric Strength: |
1 Minute at 1000V(AC.RMS) |
| Independent Linearity: |
0.1%, 0.2%, 0.3%, 0.5%, 1.0% |
| Bearing: |
2 Pairs Ball Bearing |
| Output Smoothness: |
≤±0.10% |
| Insulation Resistance: |
1000mat 500V.D.C |
| Resistance: |
Variable Resistor |
| Type: |
Rotary Potentiometer |
| Installation: |
DIP Resistor |
| Function For Resistance: |
Protective Resistor |
| Package Type: |
Surface Mount |
| Material: |
Stainless Steel +Aluminum Alloy |
Product Description
Product characteristic:
Knob it is an edge with one or a series of label of the common circular protrusion, disc or dial,
Can be rotated or push pull, to start and to manipulate or control something. (such as radio or television).
It has plastic knob, baklite knob, aluminium knob, metal knob etc.
Application scope:
This series products mainly Suit for Consumer Electronics, Medical Devices, Mechanical components, Electrical equipment and products etc.
Sample:
1. Free charge sample: Could provide(less than 10 PCS), freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1. Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1. Low MOQ: 50~100PCS
2. New design Accepted: As your requirement
3. Good Service: Customer as God
4. Good Quality: Strict quality control and good reputation
5. Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7. Feedback to TALL about Quality, Service, Market Feedback & Suggestion. And we can do better.
Company Picture:
|
MAIN SPECIFICATION |
|
Total Resistance |
500Ω- 1MKΩ |
|
Total Resistance tolerance |
±20% |
|
Resistance Tape |
A,B,C,D |
|
Max. operation voltage |
Linear B:AC200V;Other :AC 150V |
|
Power Rate |
Single unit linear B:0.2W Other Tapers:0.1W |
|
Dual unit linear B:0.125W;other:0.06W |
|
Withstanding voltage |
1minute at AC 500V |
|
Noise |
Less than 100mV |
|
Insulation resistance |
more than 100mΩ at DC500V |
|
Residual Resistance Value |
Term.1~2: Less than 20Ω |
|
Term.2~3: Less than 20Ω |
|
Tracking error |
-40dB~0dB±3dB |
|
Switch return route |
S.P.S.T. |
|
Switch contact resistance |
Less than 50 mΩ |
|
Switch power rate |
Single unit 1.0A at AC/DC 12V |
|
Dual Unit 2.0A at AC/DC 125v |
|
Total Rotation Angle |
300±5(degree) |
|
Rotation Torque |
20~200 gf.cm |
|
Shaft Stop Strength |
7.0Kgf.cm Min |
|
push-pull strength |
8.0kgf Min |
|
Switch rotation angle |
35±10(degree) |
|
Switch torque |
150~500 gf.cm |
|
|
|
|
