Product Specifications
| Prod Model: |
JA7-44 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

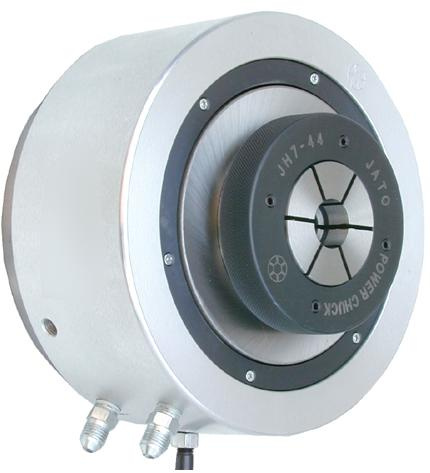

It used to be complex for users to convert a manual chuck system to a power one, since setting up a hydraulic system not only is expensive, but also is troublesome. JATO Rotary Power Collet Chuck is specially designed to help users to set up a power workholding system in a low cost way. With a built-in rotary cylinder, JATO's Rotary Power Chuck allows users to easily and quickly set up a power workholding system, and saving cost on purchasing an additional rotary cylinder. JATO Rotary Power Chuck also has quick-change jaw/collet design, helping you to cope with parts of various dimensions.
Rotary Power Chuck comes with both pneumatic collet chuck and hydraulic collet chuck models that range from small sizes to large ones, giving users more options to choose from. Rotary Power Chuck now is widely applied to convert manual lathe to semi-auto ones with power workholding system, or is applied to build all kinds of special purpose machines.
Air/Hydro cylinder is built-in. No need for extra cylinders.
Repeatability for collet type power chuck: 0.030mm-0.050mm.
Aluminum alloy chuck body, light weighted, good heat dispensation.
Allows non-stop operation when loading parts.
Widely applied to convert manual lathe into powered ones.
Widely applied to build special purpose machines.
Do not spray cutting fluid to the chuck directly.
JA7-44/JH7-44: I. D. Chucking possible by installing a mandrel and a pushing nut.
| Model | JA7-44 | JH7-44 |
| A | 192mm (7.56") | 192mm (7.56") |
| B | 155mm (6.10") | 155mm (6.10") |
| C | 44mm (1.73") | 44mm (1.73") |
| D | 5mm (0.20") | 5mm (0.20") |
| E | 135mm (5.31") | 135mm (5.31") |
| G | 110mm (4.33") | 110mm (4.33") |
| H | 212mm (8.35") | 212mm (8.35") |
| I | 172mm (6.77") | 172mm (6.77") |
| J | M10 x P1.5 x 3 | M10 x P1.5 x 3 |
| Working Collet/Jaws | C-44 Collet/ Expanding Kit | C-44 Collet/ Expanding Kit |
| Air/Hydro Actuated | Air/Hydro | Air/Hydro |
| Operating Pressure | 2-20kg/cm 2 (28-286psi) | 2-20kg/cm 2 (28-286psi) |
| Max. RPM | 1600 | 1600 |
Max. Capacity
| 44mm (1.73") | 44mm (1.73") |
| Piston Area | 116cm 2 (18in 2 ) | 116cm 2 (18in 2 ) |
| Clamping Force | 9150kgf@16kg/cm 2
(20130lbf@229psi) | 9150kgf@16kg/cm 2
(20130lbf@229psi) |
| Net Weigh | 17kg (37.4lbs) | 17kg (37.4lbs) |
