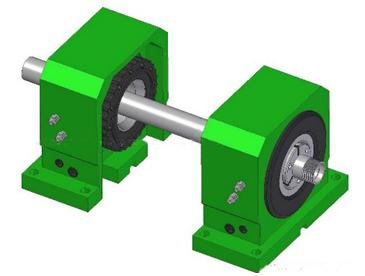

JATO JAM/JHM Series Spindle Collet Chuck is specially designed to provide users with the best solution to design and build their special purpose machines.
A traditional power workholding system consists of a rotary spindle, a power chuck, and a rotary cylinder. JAM/JHM Spindle Collet Chuck combines these three elements in one, making machine builders very easy to design and build special purpose machines with workpart auto-loading and CNC controlled machining. Since we also longer the chucking length of the collet, JAM/JHM Spindle Collet Chuck is mostly used to chuck double-ended work parts like hubs of bicycle wheels or piston rods of automobiles.
An integration of rotary spindle, power collet chuck, and air/hydro actuator.
Specially designed for double-ended machining: Saving setup, loading, and machining time.
Accelerates the designing and building cycle for a new special purpose machine.
Compact size.
High clamping force. High rigidity.
Spindle Collet Chuck Dimensions/Specifications
| Model | JAM-25 Spindle Collet Chuck | JAM-72A Spindle Collet Chuck | JHM-65A Spindle Collet Chuck | | A | 135 (5.31") | 145 (5.71") | 135 (5.31") | | B | 232 (9.13") | 265 (10.43") | 232 (9.13") | | C | 270 (10.63") | 288 (11.34") | 270 (10.63") | | D | 210 (8.27") | 240 (9.45") | 210 (8.27") | | E | 64 (2.52") | 105 (4.13") | 64 (2.52") | | F | 238 (9.37") | 256 (10.08") | 238 (9.37") | | G | 88 (3.46") | 105 (4.13") | 96 (3.78") | H
(Tapered Sleeve) | 0-5.0 (0"-0.20") | 2.0-7.0 (0.08"-0.28") | - | | I | 29 (1.14") | 30 (1.18") | 33 (1.30") | | J | 98 (3.86") | 135 (5.31") | 98 (3.86") | | K | 174 (6.85") | 202 (7.95") | 167 (6.57") | | L | 30 (1.18") | 34 (1.34") | 30 (1.18") | | Working Collet | ER-40 (Single Collet) | JR-72 (Single Collet) | JR-65 (Single Collet) | | Air/Hydro actuated | Air | Air | Hydro | | Operating Pressure | 2-8kg/cm 2
(29-114psi) | 2-8kg/cm 2
(29-114psi) | 10-25kg/cm 2
(143-357psi) | | Max. RPM | 2000 | 1400 | 1400 | | Chucking Capacity | 4-26mm
(0.16"-1.02") | 25-70mm
(0.98"-2.76") | 25-60mm
(0.98"-2.36") | | Piston Area | 138cm 2 (21.4in 2 ) | 124cm 2 (19.2in 2 ) | 70cm 2 (10.85in 2 ) | | Clamping Force | 4750kgf@7kg/cm 2
(10450lbf@100psi) | 5550kgf@7kg/cm 2
(12210lbf@100psi) | 5250kgf@16kg/cm 2
(11550lbf@229psi) | | Net Weight | 22.5kgs (49.5lbs) | 33.5kgs (73.7lbs) | 23.0kgs (50.6lbs) |
|
| |
| |
