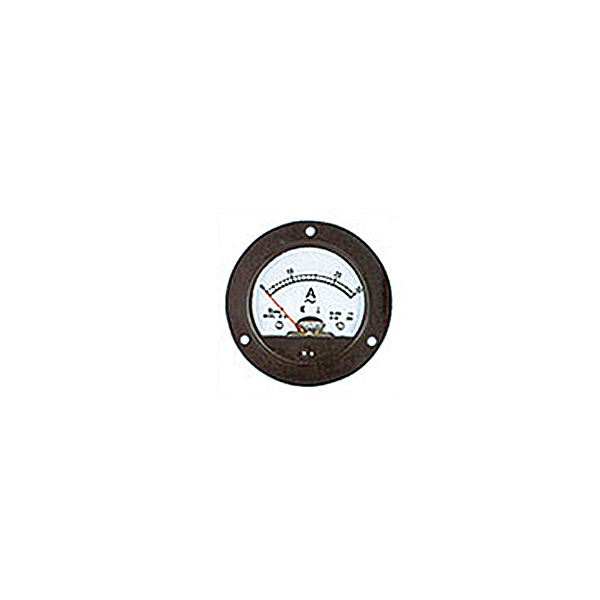

Round Panel Meter

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	Indicator
Installation:	Indirect Connected
Usage:	Multi-Functional Energy Meter
Electric Equipment:	Single-phase
Theory:	Electronic Meter
Power Meter Connection:	Terminal
Measured Signal:	Continuous Wave
Type:	Power Meter

Product Description

AC.DC.Ameter.Voltmeter
Moving coil type:DC 100 uA 50A DC 30V-600V
Moving iron type:AC 1A-60A AC 150V-60V
Rectifier type:AC 3V-600V AC 1A-5A
Accuracy:class 1.5
Model :SD-96 SF-72 SF-48
AC ampere overolad Scale:100%,200%,300%,500%,
DC Ammeters above 50A require abasic 50mV meter combined with an external shunt.
AC Ammeters above 100A require a basic 5A meter combined with an External CT.
AC voltmeters above 600 vp;ts reqiore a basoc 150V meter combined with an external PT

Model	Name	Specification	Primary CT(A)	Accuracy
SFT-80	AC Ammeter	From 10A,15A,20A,30A... to 3000A,5000A	Withext.c/t 1A or 5A	Class 1.5
		From 0.1A,0.5A,1A,5A,10A,25A...to 80A ,100A	AC direct connection	Class 1.5
SFT-670	DC Ammeter	From 50uA,100uA,1mA,5mA...1A,5A,10A,25A,30A... to 100A	D Model Unit A B C D E F G SFT-52 mm 58 66.5 4.5 26 40.5 52 39 SFT-65 mm 73.5 83.5 4.5 31 42 65 39 SFT-62T2 mm 75 90 8 45 65 70 35 SFT-45 mm 45 47.8 1.5 22 35.2 45.2 18
