Product Specifications
| Prod Model: |
DXP0108 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

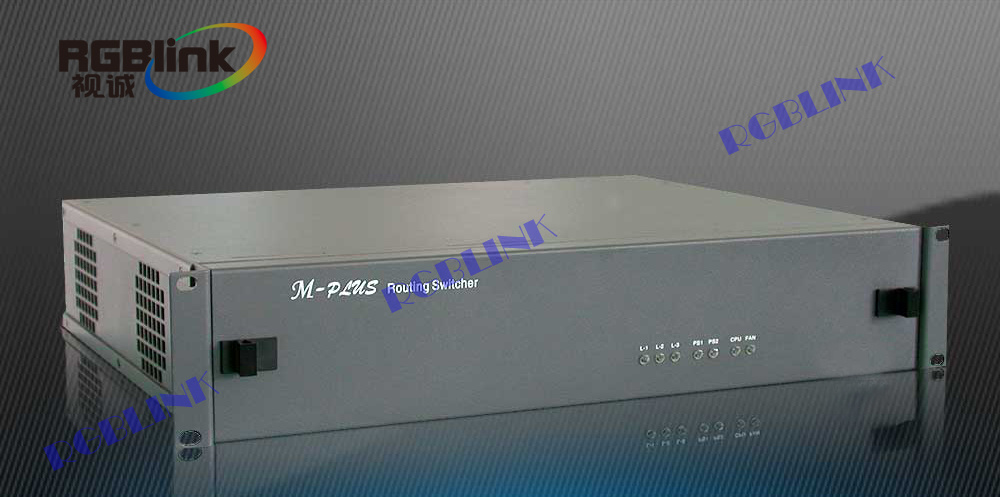

AVDXP Series Routing Switcher is a compact, professional, multi-level and multi-format routing switcher. AVDXP Series Routing Switcher has 2 kinds of frames. The whole system adopts modular design and any mix of formats.
2RU frame supplies 3 slots for any module within 32x32 and 4RU has 6 slots. Multiple frames can be cascaded via NODE-BUS. For example: Single frame can be cascaded YUV+stereo audio+RS-422. AVDXP Series Routing Switcher is suitable for switching of analog composite video signal in NTSC, PAL and SECAM as well as RGB, YC/YUV(Y, R-Y, B-Y)analog component video and VGA. SDI, HD, AES/EBU, analog audio single/multiple track(s), RF and IF signals are also available.
Main unit of AVDXP Series Routing Switcher supports non-volatile memory which ensures the security of data. REF signal ensures image have no black screen and flickering.
Matrix series is well-suited to TV Post-production, recording, uploading/downloading, program transmission, and data communication.
Key Feature:
High compact: 2RU H, 19"W
Size: 8× 8~16× 16
Multi-format: Video , AUDIO, HD, SD, DVB-ASI, AES/EBU
Allow any mix of formats
NODE-BUS
| | | | FATURES | Bandwidth | 150MHz(-3dB)fully loaded | | 0-10MHz (+0.1dB to -0.1dB) | | 0-30MHz (+0.5dB to -0.5dB) | | Brightness Color Interfere | -50dB@5MHz,-45dB@10MHz | | Switch Speed | 200ns(the longest time) | | Differential phase Error | 0.1% , 3.8-4.43MHz | | Differential Gain Error | 0.1% , 3.8-4.43MHz | | Largest transmit time delay | (+1ns)5ns | | Video input | Signal type | AV Signal | | Connection type | RCA | | Minimum input level positive | 0.5Vp-p | | Maximum input level positive | 2.0Vp-p | | I/O impedance | 75Ω | | Echo Wasting | -30dB@5MHz | | Largest DC compensate | 1.5V | | Synchronous Phase-lock | 0.3V-0.4Vp-p | | Video output | Signal Type | AV Signal | | Connection Type | RCA | | Minimum input level | 0.5Vp-p | | Maximum input level | 2.0Vp-p | | I/O Impedance | 75Ω | | Echo Wasting | -30dB@5MHz | | Largest DC compensate | +5Mv-0 | | Control type | RS-232control protocol, Infrared control, Manual front panel control, accidental power off protection | | Control port | RS-232,9 pin COM connection port | | Baud | 9600/4800/2400 | | Digit bit | 8 | | Stop bit | 1 | | Proofread bit | No | | Control configuration: | 2=TX,3=RX,5=GND | | Control program: | LANBE MATRIX Control Program For Windows | | Specification | Power supply | 220V/50Hz | | Power | 20W | | Installation | with standard installation rack | | MTTF | 30000 hours |
|
| Audio | Plus | Imbalance OdB | | Recording Radiation Response | 20Hz-20KHz +0.05dB | | Noise Dealing | 0.03%@1KHz | | S/N | >90, output 21dBu balance ration output power | | Light & Color interfere | <-80@1KHz,fully loaded | | Stereo Channel Separate | <75@:20Hz-20KHz |
|
RGBlink is one of the most professional audio and video companys in Asian
Market, a company dedicated to quality and stability and focusing on where it's
Needed most; RGBlink develops and supports full color LED display controller,
Mosaic system solution, stage and events broadcasting device, conference and
Video wall controller, edge blending for projector and so on.
RGBlink has created some of the most talked about products in the industry.
World famous for their unbeatable video processor, converters, multiviewer,
Rack mount monitor and router, RGBlink envisioned truly affordable high-end
Quality video device with built-in software and hardware according to the customer's concerned idea.
