Product Specifications
| Prod Model: |
RS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
50-4500mm |
| Analog Signal: |
4~20madc(Min. /Max. Load: 0/500 Ohm); |
| Resolution: |
Analog Output 16 Binary Digit D/a |
| Output: |
Analog Sensor |
| Usage: |
Position Sensor |
| Theory: |
Magnetic Sensor |
| Type: |
RS-Analog Linear Position Sensor |
Product Description

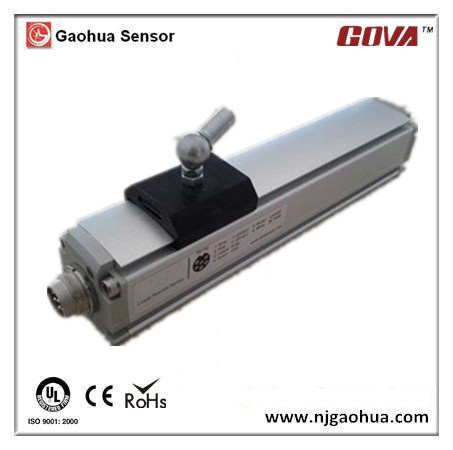

RS-Analog Linear Position Sensor
Feature
External installation, easy to use.
Absolute location output, no need to return to zero.
Non-contact measurement, no physical deterioration forever.
High resolution, analog output 16 binary digit D/A, infinite resolution.
Nonlinearity degree, <± 0.01%F. S.
Repeatability precision, < ± 0.002% F. S.
Low power dissipation, good for reducing the system temperature drift.
The locating slide magnetic with a knuckle bearing can bear comparatively large lateral pressure
Floating magnetic, the biggest vertical safety clearance can achieve 6mm.
| Parameter Measured |
| Measurement range | 50-4500mm |
| Output signal | 4~20mADC(min./max. load:0/500 Ohm) |
| 0~10VDC(min.load>5k Ohm) |
| Resolution | Analog output 16 binary digit D/A |
| Nonlinearity degree | <±0.01% F.S.(min.±50μm) |
| Repeatability precision | <±0.002% F.S.(min.±2μm) |
| Refresh time | 0.5ms(F.S<0.5m) |
| 1.0ms(0.5m |
| 2.0ms(1m |
| 3.0ms(2m |
| Structure&Material |
| Head | Internally installed |
| Sensor | Aluminium alloy |
| Flange fixed | Stainless steel 304L |
| Working condition |
| Magnetic speed | Random |
| Ambient temperature | "-40ºC~+85ºC |
| Humidity/Dew point | Humidity 90%,No dew |
| Temperature coefficient | <30ppm/ºC |
| Grade of electrical protection | IP65 |
| Anti-pressure ability | 35MPa(Continuously)/70MPa(Peak value) |
| Electric feature |
| Outgoing line | Water-proof connector,or 6 lamp pith aircraft connector |
| Input voltage | 24VDC(-15/+20%) |
| Working current | <50mA(changing depends on F.S.) |
| Polarity protection | max.-30VDC |
| Overvoltage protection | max.36VDC |
| Insulating ability | 500V(between the signal end and the housing) |
| Fault indication | No |
