Product Specifications
| Prod Model: |
X(S)N35, X(S)N55, X(S)N75, X(S)N110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| With Blue Color: |
with CE Certificate |
Product Description

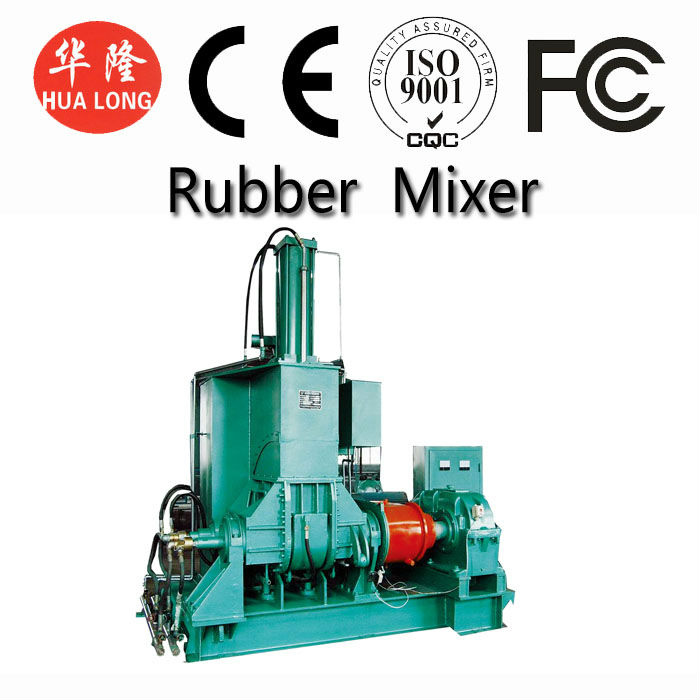

Rubber kneader
Charactor
1) The pressurized kneaders of this deries adopt elliptical tangential rotors. The working surfaces of the rotors are coated on with wearable hard alloy by built-up welding method, The internal surfaces of the mixing chamber and the working surfaces of the pressing ram device are all treated with hard chrome plating, which are durable and corrosion proof and have a long service life.
2) The rotors, the mixing chamber and the pressing ram are all structured with circulating channels to realize the circulation of heat transmission mediums. According to different processing requirements, the mixing materials may be heated by hot steam or cooled by cold water.
3) The rotors are supported by rolling bearings, which are easy to maintain and have a long service life.
4) The pressing ram device is driven by pneumatic cylinder to press onto the mixing materials to force them equally mixed so as to increase productive efficiency.
5) The feed hopper door is arranged at the back of the machine and the mixing chamber adopts hydraulic driven tilting discharge device. The operation is steady and reliable. It is easy to clean up the chamber and change the color of materials.
6) Both manual and automatic modes are arranged to operate PLC electric control system. It is easy to exchange the modes and reliable to operate the controller.
|
Type |
X (S)N35 |
X(S)N55 |
X(S)N75 |
X(S)N110 |
|
Total Volume of mixing chamber(L) |
75 |
125 |
180 |
250 |
|
Working Volume of mixing chamber(L) |
35 |
55 |
75 |
110 |
|
Driving motor power(KW) |
55 |
75 |
110 |
185 |
Tilting motor power(KW)
|
5.5 |
5.5 |
5.5 |
7.5 |
|
Tilting angle |
110 |
110 |
110 |
110 |
|
Rotational speed of the rotor(front/rear) |
36/30 |
36/30 |
36/30 |
30/24.5 |
|
Pressure of compressed air(Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Cooling wate presssure (Mpa) |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.2~0.4 |
|
Size:length×Width×Height |
3150×1900×2880 |
3280×2120×3090 |
3250×2210×3250 |
4075×2712×3580 |
Qingdao Shenghualong Rubber Machinery Co., Ltd is located at Jiaonan city, qingdao, shandong province, China. With convenient traffic, it is 60 kilometers away from urban district of Qingdao, 40 kilometers to Rizhao and 10 kilometers far away to Dachang Exit of Tongsan Express Highway, adjacent to Taixue Road in the north as well as 204 National Highway in the south. As one of main manufacturers engaging on manufacturing rubber machinery in Qingdao Area, taking "Product quality first and client's credit standing uppermost" as corporate faith, the company strictly carries out inner management, wins markets depending on high-quality products and satisfies client's demands with lower price, excellent after-sale service and full varieties. Therefore, it has been appraised as "Qingdao Municipal Advanced Unit on Both Material & Spiritual Civilizations Constructing" for successive years and "Contract-stressing and Promise-keeping Unit" by Qingdao City for successive ten years.
The company, adopting advanced manufacturing technics and detection instruments, produces rubber refining machines involving XK-160, 230, 400, 450 and 560, refiners involving 400 and 480, rubber crusher involving 400, 450 and 560, tyre shaping and curing press from 42" to 65.5". Tyre vulcanizing machines with specifications from 30T to 300T 11, electro-dynamic inner tube vulcanizing machines involving 25T, 50T (1200 and 1250) and 100T (1430), plate vulcanizing machines from 25T, 50T, 100T, 160T, 200T, 315T, 500T to 2000T and rubber cutter, totally more than 60 varieties. In addition, the company can design and manufacture all kinds of special rubber machinery equipments according to clients' requirements.
Board chairman and general manager Mr. Liu Shunjun sincerely welcomes clients at home and abroad for investigations, guidance and business negotiations!
