Product Specifications
| Prod Model: |
16", 18', 22', 26'' |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of General Rubber Machinery: |
Mixing Roll |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
ISO, CE |
| Xk-400 Rubber Mixing Mill: |
with Blue Color |
| CE Certificate: |
ISO9001 |
| Two Roll: |
with All Types |
| Type: |
General Rubber Machinery |
Product Description

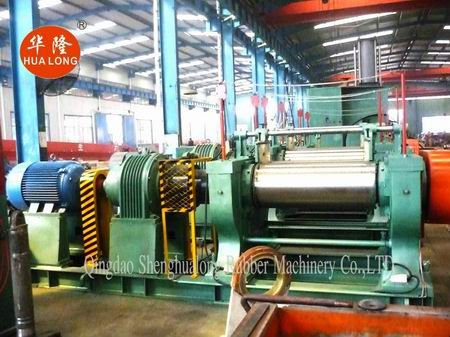

Rubber mixing mill
1. The rolls are made of chilled cast iron with spun casting. The roll face is hard and anti-wear. The internal cavity is processed to make temperature well proportioned on the roll surface.
2. The machine is equipped with an overload protection device to prevent the major components frombeing damaged due to overloading.
3. The machine is also equipped with an emergency device. When an emergent accident happens, just draw the pull rod, and the machine will stop immediately. It is safe and reliable
4. The transimission system adopts a ZQ planetary gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.
5. The base frame is a complete framework, which is convenient for installation.
6. Rubber mixing mill also is the main machine of making reclaimed rubber. Rubber powder for tank and then put them into the rubber mixing mill. Rubber mixing mill is very important of the rubber product industry.
If you are interested in, please feel free to contact us.
|
|
XK-160 |
XK-230 |
XK-250 |
XK-300 |
XK-360 |
XK-400 |
XK-450 |
XK-560 |
XK-550B |
XK-660 |
|
Working diameter(mm) |
160 |
230 |
250 |
300 |
360 |
400 |
450 |
560/510 |
550 |
660 |
|
Woking length of rollls |
320 |
600 |
620 |
750 |
900 |
1000 |
1200 |
1530 |
1500 |
2130 |
|
Frontrollsurfacespeed(m/min) |
8.95 |
10.21 |
14.1 |
15.1 |
16.25 |
18.65 |
24.26 |
27.72 |
27.94 |
28.6 |
|
Friction ratio |
1:0.35 |
1:1.19 |
1:1.17 |
1:1.25 |
1:1.25 |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.22 |
1:1.24 |
|
Max .nip(mm) |
4.5 |
7 |
8 |
10 |
10 |
10 |
15 |
15 |
15 |
15 |
|
Capacity per.batch(kg) |
1~2 |
6~10 |
8~15 |
15~20 |
20~25 |
18~35 |
25~50 |
35~50 |
50~60 |
165 |
|
Motor power(kw) |
5.5 |
15 |
18.5 |
22 |
30 |
37 |
55 |
90 |
110 |
245 |
|
Overall dimension: length×Width×Height(mm) |
1380×860×1320 |
2800×1200×1120 |
3400×1500×1500 |
3450×1500×1550 |
3780×1850×1750 |
4350×1850×1785 |
5200×2380×1840 |
5845×2284×1978 |
5870×2475×2045 |
7465×3662×2080 |
Qingdao Shenghualong Rubber Machinery Co., Ltd is located at Jiaonan city, qingdao, shandong province, China. With convenient traffic, it is 60 kilometers away from urban district of Qingdao, 40 kilometers to Rizhao and 10 kilometers far away to Dachang Exit of Tongsan Express Highway, adjacent to Taixue Road in the north as well as 204 National Highway in the south. As one of main manufacturers engaging on manufacturing rubber machinery in Qingdao Area, taking "Product quality first and client's credit standing uppermost" as corporate faith, the company strictly carries out inner management, wins markets depending on high-quality products and satisfies client's demands with lower price, excellent after-sale service and full varieties. Therefore, it has been appraised as "Qingdao Municipal Advanced Unit on Both Material & Spiritual Civilizations Constructing" for successive years and "Contract-stressing and Promise-keeping Unit" by Qingdao City for successive ten years.
The company, adopting advanced manufacturing technics and detection instruments, produces rubber refining machines involving XK-160, 230, 400, 450 and 560, refiners involving 400 and 480, rubber crusher involving 400, 450 and 560, tyre shaping and curing press from 42" to 65.5". Tyre vulcanizing machines with specifications from 30T to 300T 11, electro-dynamic inner tube vulcanizing machines involving 25T, 50T (1200 and 1250) and 100T (1430), plate vulcanizing machines from 25T, 50T, 100T, 160T, 200T, 315T, 500T to 2000T and rubber cutter, totally more than 60 varieties. In addition, the company can design and manufacture all kinds of special rubber machinery equipments according to clients' requirements.
Board chairman and general manager Mr. Liu Shunjun sincerely welcomes clients at home and abroad for investigations, guidance and business negotiations!
