Product Specifications
| Prod Model: |
D161-200(X), D161-250(X), D161-320 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Rectifier Diode |
| Manufacturing Technology: |
Discrete Device |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
SMD |
Product Description
(1). High surge current capability
(2). Stud cathode and stud anode version
3). Center amplifying gate
4). CE, RoHS, ISO
|

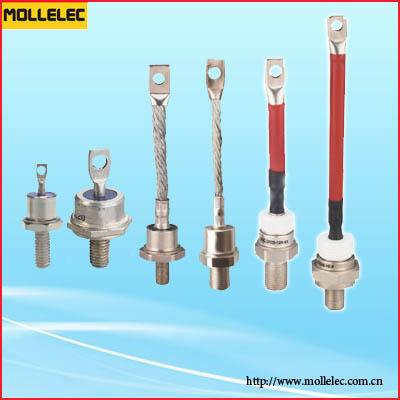

Russia Type Fast Recovery Diode(Stud Version) |
|
Type |
V RRM |
I RRM |
I F(AV) |
I F(RMS) |
I FSM |
V FM /I FM |
t rr |
T j |
R jc |
M 2 |
Wt |
Outline |
|
|
|
Tc55°C |
|
10ms |
|
|
|
|
|
|
|
V |
mA |
A |
A |
kA |
V/A |
μs |
°C |
°C/W |
kN |
kg |
|
DF212-10 |
400-1400 |
10 |
10 |
16 |
0.18 |
2.20/31 |
0.5 |
-40
~
+150 |
2.50 |
0.9-1.1 |
0.006 |
RSD1 |
|
DF212-16 |
400-1400 |
10 |
16 |
25 |
0.25 |
2.20/50 |
0.5 |
1.60 |
0.9-1.1 |
0.006 |
|
DF212-20 |
400-1400 |
10 |
20 |
31 |
0.31 |
2.20/62 |
0.5 |
1.20 |
1.9-1.1 |
0.006 |
|
DF222-25 |
400-1400 |
15 |
25 |
39 |
0.40 |
2.20/78 |
0.5 |
1.00 |
1.4-1.8 |
0.015 |
RSD2 |
|
DF222-32 |
400-1400 |
15 |
32 |
50 |
0.50 |
2.20/98 |
0.5 |
0.80 |
1.4-1.8 |
0.015 |
|
DF232-40 |
400-1400 |
20 |
40 |
62 |
0.60 |
2.20/125 |
0.7 |
0.60 |
5.0-6.2 |
0.027 |
RSD3 |
|
DF232-50 |
400-1400 |
20 |
50 |
78 |
0.75 |
2.20/157 |
0.7 |
0.50 |
5.0-6.2 |
0.027 |
|
DF232-63 |
400-1400 |
20 |
63 |
98 |
0.95 |
2.20/198 |
0.7 |
0.40 |
5.0-6.2 |
0.027 |
|
DF141-63 |
400-1400 |
50 |
63 |
100 |
2.0 |
2.13/198 |
1.0,2.0 |
0.45 |
6-10 |
0.090 |
RSD4 |
|
DF141-80 |
400-1400 |
30 |
80 |
125 |
2.5 |
1.48/250 |
4.8 |
0.45 |
6-10 |
0.090 |
|
DF151-125 |
400-1400 |
30 |
125 |
200 |
4.0 |
1.94/390 |
2.0 |
0.25 |
10-20 |
0.165 |
RSD5 |
|
DF161-160 |
400-1400 |
20 |
160 |
250 |
3.5 |
2.35/500 |
3.2,4.0 |
0.25 |
20-30 |
0.250 |
RSD6 |
|
DF161-200 |
400-1400 |
20 |
200 |
300 |
4.3 |
1.75/528 |
3.2,4.0 |
0.25 |
20-30 |
0.250 |
|
DF161-250 |
400-1400 |
30 |
250 |
390 |
4.5 |
2.61/785 |
3.2,4.0 |
0.15 |
20-30 |
0.250 |
|
DF171-320 |
400-1400 |
30 |
320 |
500 |
5.3 |
2.03/1000 |
5.0,6.5 |
0.15 |
25-35 |
0.465 |
RSD7 |
|
Avalanche Rerctifier Diode(Stud Version) |
|
Type |
V RRM |
I RRM |
I F(AV) |
I F(RMS) |
I FSM |
I 2 t |
V FM /I FM |
V TO |
PRSM |
r T |
T j |
R jc |
M 2 |
Wt |
Outline |
|
|
|
Tc55°C |
|
10ms |
|
|
|
100mks |
|
|
|
|
|
|
V |
mA |
A |
A |
kA |
kA 2 S |
V/A |
V |
kW |
mΩ |
°C |
°C/W |
kN |
kg |
|
DL212-10 |
400-1600 |
6 |
10 |
15 |
0.25 |
0.31 |
1.25/31 |
0.90 |
2.5 |
17.5 |
-40°C
~
+150°C |
2.70 |
0.9-1.1 |
0.006 |
RSD1 |
|
DL212-16 |
400-1600 |
6 |
16 |
25 |
0.27 |
0.36 |
1.25/50 |
0.90 |
2.5 |
10.5 |
1.75 |
0.9-1.1 |
0.006 |
|
DL212-25 |
400-1600 |
6 |
25 |
39 |
0.34 |
0.58 |
1.25/78 |
0.90 |
2.5 |
6.10 |
1.10 |
0.9-1.1 |
0.006 |
|
DL222-32 |
400-1600 |
8 |
32 |
50 |
0.46 |
1.06 |
1.25/100 |
0.85 |
3.0 |
5.00 |
0.95 |
1.4-1.8 |
0.012 |
RSD2 |
|
DL222-40 |
400-1600 |
8 |
40 |
62 |
0.55
|
1.51 |
1.25/125 |
0.85 |
3.0 |
4.00 |
0.80 |
1.4-1.8 |
0.012 |
|
DL232-50 |
400-1600 |
10 |
50 |
78 |
12 |
72 |
1.25/157 |
0.83 |
5.0 |
3.10 |
0.60 |
5.0-6.2 |
0.027 |
RSD3 |
|
