Product Specifications
| Prod Model: |
FC-F45(din rail type) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
Analog Only |
| Voltage: |
0-500V |
| Measuring Range: |
0-1000A |
| Type: |
Power Meter |
| Display: |
Digital |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Usage: |
Multi-Functional Energy Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
Product Description
Meter, Power Meter, Digital Power Meter, LED Power Meter, LCD Power Meter, DIN Rail Power Meterpanel Meter, Current Meter, Factor Meter

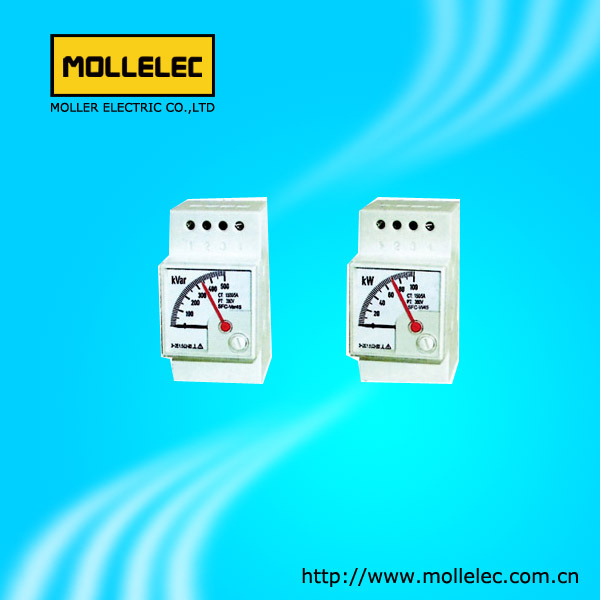

Modular type panel meter
Panel meter contain ammeter, voltmeter, frequency meter, power meter, power factor meter. Digital meter, analog panel meter.
Moving Coil Instruments Power Miters
Wattmeter Model: CYFC-W45
Varmeter Mode: LCYFC-VAR45
Accuracy: Class1.5
Specification
Voltage Single phase: 100V 220V 380V
Three phase three wire100V 220V 380V 415V
Three phase four wire100V 220V 380)V 240(415)
Above-mentioned can be connected directly.
The following should be connected with voltage transformers:
380/100V 500/100V 3K/100V 6K/100V 10K/100V 15K/100V 35K/100V
Current: 1A 5A
The voltage circuits of meter connected with voltage transformers. Which secondary voltage is 100V, if the secondary voltage is lower than 450V, it also can be connected directly. The currrent circuits connected with current transformes, which secondary current is 5A or1A. Wattmeters and Varmeters with converter for three phase therr wires or four wires and single phase, which can be
Used for balance and unbalance burder circuit.
Heat resistance: Case of non-combustible plastic material.
Frequency: 50Hz or 60Hz
Fastening: By means of must, absolutely safe, fast, robust, side-by-side
Mounting type: DIN rail. 72mm× 87.2mm× 65mm
