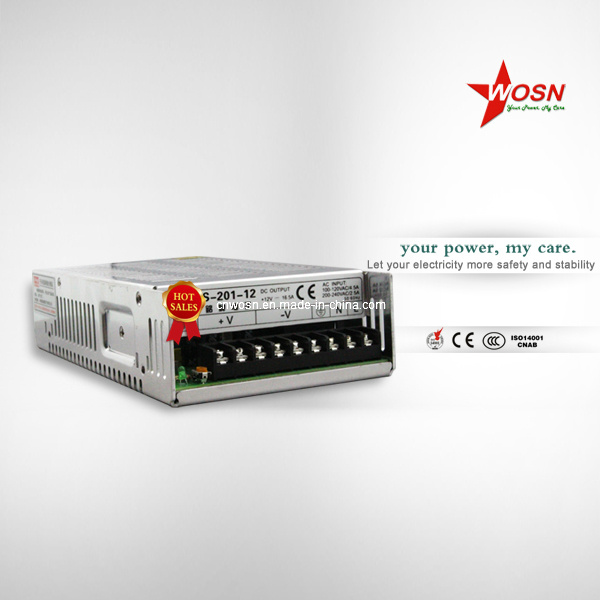

S-201-12 Switching Mode Power Supply with CE

Name: S-201-12 Switching Mode Power Supply with CE
Brand: china-manufacturer-directory.com
SKU: 731160055
Availability: InStock
Rating: 5 (23 reviews)

Supplier:	Wenzhou WOSN Electron Technology Co., Ltd.
Price:	US $ 1-100Piece
Min Order:	10Pieces
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S-201-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	12V
Output Frequency:	47~63Hz
Output Current:	0~16.5A
Color:	Metal
Power Supply Type:	Compact Single
Protection:	Short Circuit/Over Load/Over Voltage
OEM:	Accept
Keywords:	Switching Power Supply
Output Type:	Single
Output Power:	201 - 300W
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Input Voltage:	90~132VAC/180~264VAC(Selected by Switch), 255~373V

Product Description

Product Description -AC input voltage range selected by switch -Small volume,low weight,high efficiency -Protections:short circuit/over load/over voltage/over temp -Built-in cooling DC fan -Cooling fan ON-OFF auto control -LED indicator for power on -100% full load burn-in test -2 Years warranty

Model		S-201-5	S-201-12	S-201-15	S-201-24	S-201-27	S-201-48
Output	DC voltage	5V	12V	15V	24V	27V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%	±1%
	Rated current	40A	16.5A	13.4A	8.3A	7.4A	4.2A
	Current range	0~40A	0~16.5A	0~13.4A	0~8.3A	0~7.4A	0~4.2A
	Rated power	200W	198W	201W	199.2W	199.8W	201.6W
	Ripple&noise	120mvp-p	150mvp-p	150mvp-p	180mvp-p	180mvp-p	200mvp-p
	DCvoltage ADJ.range	±10%	±10%	±10%	±10%	±10%	±10%
Input	Voltage range	90~132VAC/180~264VAC(selected by switch), 255~373VDC
	Frequency	47~63Hz
	AC current	4.5A/115VAC, 2.5A/230VAC
	Efficiency	78%	80%	80%	82%	82%	83%
	Inrush current	cold start current 25A/115VAC, 50A/230VAC
	Leakage current	< 3.5mA/240VAC
Protection	Overload	above 105%~135% rated power
	Overload	protection type: rated current limit, auto-recovery after fault condition is removed
	Over voltage	6.8~8.2V	15.6~17.8V	18.6~20.8V	30.6~33.2V	33.2~35.6V	54.8~56.6V
	Over voltage	protection type: hiccup mode, auto-recovery after fault condition is removed
	Over temperature	inner temperature≥85°C shutoff O/P
	Over temperature	protection mode: cutoff output, auto-recovery after temperature goes down
Environment	Working temp,humidity	-10°C~+60°C, 20%~90%RH
	Storagetemp,humidity	-20°C~+85°C, 10%~95%RH non-condensing
	Withstand vibration	10~500Hz, 2G 10min/1cycle, period for 60 minutes, each axes
Safety	Withstand voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
Fitstandard	EMC standard	meet EN55022, CLASS A
Others	Dimension	21511550mm (LWH)
Others	Weight/packing	0.87kg/24pcs/22kg/0.049 m³/1.72CUFT
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation.
