Product Specifications
| Prod Model: |
S200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processor: |
32-Bit Arm 11 |
| Memory: |
20MB (4MB Flash, 16MB DDR) |
| Display: |
2.8 Inch 320 X 240 Pixel Colour TFT LCD |
| Contactless Card Reader: |
14443 Type a/B, Mifare (Optional) |
| Keypad: |
10 Numeric Keys 6 Function Keys Peripheral Ports |
| Peripheral Ports: |
1 X RS232 / USB |
| Security: |
Dukpt, Master / Session, Des, 3des |
| Security 2: |
Pin Ciphered Key Algorithm ANSI X9.9 / X9.19 Mac |
| Certifications: |
PCI Pts 3.X |
| Environmental: |
-20°c to 70°c (-4°f to 158°f) |
| Type: |
Data Collector |
| Certification: |
Pts PCI |
Product Description

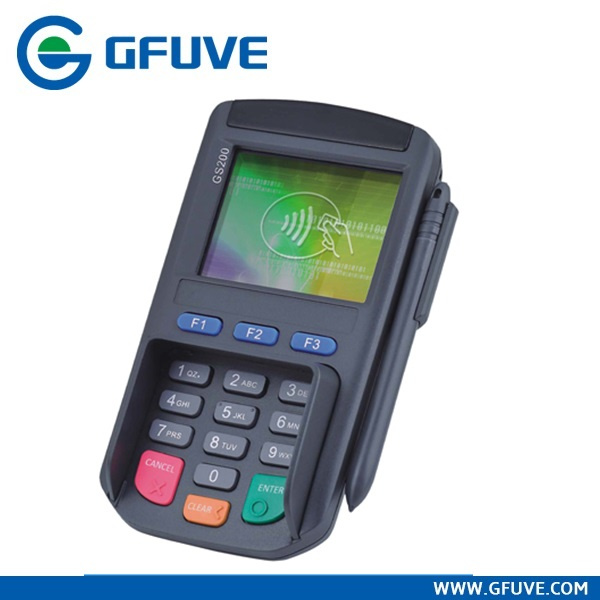

S200 Secure signature Pinpad
The S200 is a secure and innovative PINPad which can be connected to POS terminals to offer a more customer facing experience.
Offering e-Signature functionality and providing multiple security protection, the S200 features built-in contactless capability for quick and secure transactions and a 32-bit ARM11 processor.
A large and colour touch
Screen
Multiple security design
To protect information
Large memory capacity
Processor
32-bit ARM11
Memory
20MB (4MB Flash, 16MB DDR)
DIsplay
2.8 inch 320 X 240 pixel colour
TFT LCD
Contactless Card Reader
(optional)
ISO14443 Type A/B, Mifare
4 LEDs RF Indicator
Keypad
10 numeric keys
6 function keys
Privacy shield
Peripheral Ports
1 X RS232 / USB
Security
DUKPT, Master / Session,
DES, 3DES
PIN ciphered key algorithm
ANSI X9.9 / X9.19 MAC
Algorithm
Environmental
0° C to 50° C (32° F to 122° F)
Operating temperature
10% to 93% relative
Humidity, non-condensing
-20° C to 70° C (-4° F to 158° F)
Storage temperature
Voltage
5V DC, 500mA
Physical
Length: 146mm
Width: 90mm
Height: 33mm
Weight
210g
Certifications
PCI PTS 3. X
