Product Specifications
| Prod Model: |
S300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processor: |
32-Bit Arm 11 |
| Style: |
Pinpad |
| Memory: |
192MB(128mbflash, 64MB DDR) |
| Display: |
3.5inch 240*320pixel Colour Tftlcd |
| Magnetic Card Reader: |
Mastercard Paypass3.0&Visa Paywave |
| Smart Card Reader: |
EMV4.3 |
| Card Slots: |
3 Sam Slots, ISO 7816 |
| Contactless Card Reader: |
13.56MHz, ISO14443typea/B, Mifare, Felica, Nfc |
| Keypad: |
10 Numeric/Letter Keys, 5function Keys |
| Security: |
Dukpt, Master/Session.Des |
| Certification: |
Master, Visa, PCI |
| Type: |
Arm 11 |
Product Description

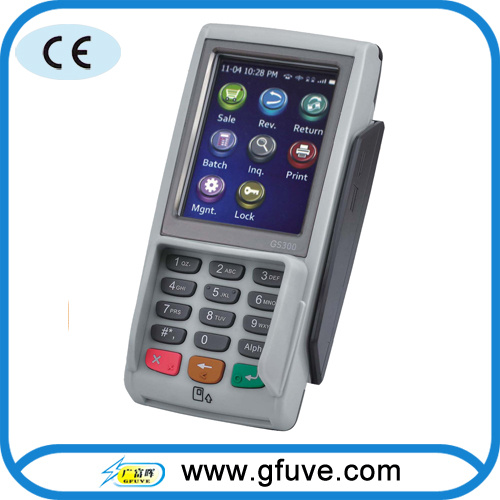

NTEGRATED RETAIL PINPAD
GFUVE's GS300 is the latest integrated retail payment solution for multilane merchants who wish to offer high levels of transactional security combined with contactless, e-Signature, magnetic stripe and Chip & PIN. Providing various ports for extensive functionality, the S300 offers everything merchants could want in a sleek, stylish payment device. Connected to an EPOS or POS terminal, the GS300 is the perfect device to streamline your electronic payment system.
With state of the art levels of security design, the GS300 protects and encrypts all transaction information. Featuring a large colour touch screen and loudspeaker, the S300 comes with a 32-bit ARM11 processor and massive amounts of memory for exceptional multimedia performance.
GFUVE's GS300 is the world's most innovative PINpad powered by the secure and flexible Prolin platform based on Linux.
Features$Benifits
Stability and reliability
400MHz 32-bit ARM 11 processor
Chip&Pin, Magstripe, contactless
Advanced DDR&SDRAM technology
Sleek compact design
Open&flexible operating system
Secure prolin Linux Platform
Easy software application development
User-friendly interface with powergul GUI
Multi-task OS maintains application integrity
Plug-and-Play to extend functionality on-site
Multimedia performance
Louderspeaker
Large colour touch screen display
Supports HD images and video
Exceptional security
PCI PTS3*approved
Secure embedded area for keys,
Self-destruct mechanism if attacked
Supports RSA, AES, DES, 3DES
Supports HASH function
SPECIFICATIONS
Procesor
32-bitARM11
Memory
192MB(128MBFlash, 64MB DDR)
Display
3.5inch 240*320pixel colour TFTLCD
Touch Screen
Magnetic Card Reader
MasterCard Paypass3.0&Visa paywave
Smart card reader
EMV4.3
Card Slots
3 SAM Slots, ISO 7816
Contactless Card Reader
13.56MHz, ISO14443TypeA/B, Mifare, Felica, NFC
Maximum effective distance up to 4cm
Keypad
10 numeric/letter keys, 5function keys
Backing-lighting
Audio
Speaker, 100dB
Communication(optional)
Ethernet
Peripheral Ports
1*Multi-Single port
(RS232+USB OTG+Ethernet)
Security
DUKPT, Master/Session. DES, 3DES
ANSI/ISO9564 format 0, 1, 3
PIN ciphered key algorithm
ANSI*9.9/*9.19MAC algprithm
Enviromental
0° C to 50° C (32° F to 122° F)
Operating temperature
10% to 93% relative humidity
Non-condensing
-20° C to 70° C (-4° F to 158° F)
Storage temperature
Voltage (optional)
External power supply 5VDC, 1.0A
Physical
Length: 167mm
Width: 81mm
Height: 50mm
Weight 290g (standard)
Accessories
Cable
Certifications
PCI PTS3. *
EMV4.3
Master Card Paypass 3.0
Visa paywave
Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
