Santana Automobile Line Demonstrating Board Dlqc-Dq005

Product Specifications

Prod Model:	DLQC-DQ005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Vocational Training Equipment:	Professional Manufacture
Type:	Teaching Model

Product Description

Specifications

Suitable for four-wheel automobile steering system constructed training institutions and maintenance training

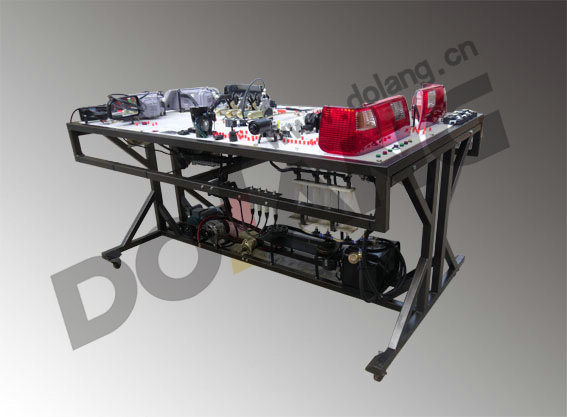

Santana Automobile Line Demonstrating Board DLQC-DQ005


Introduction

The device is designed based on the electric equipment system on the Volkswagen Santana 2000 body to holistically demonstrate structures and operation of the meter, lighting, illuminating and wiper systems, and to support circuit terminal connection training. The device applies to theoretical teaching and maintenance training of the electric equipment system of the vehicle body in secondary and senior vocational skill schools, normal education and training institutions.


Features

1. A real and operable electric equipment system of the vehicle body is used to illustrate structures of the meter, lighting, illuminating, and wiper systems.

2. Switches and buttons of various electric equipment are operated to demonstrate operation of the meter, lighting, illuminating, and wiper systems.

3. Line terminals of electric equipment on the training platform have connection plugs. Trainees can improve their capabilities of diagram reading and terminal connection by connecting the plugs with middle harness based on the circuit diagram or maintenance data.

4. The training platform is installed with detection terminals to detect electric signals, for example, resistance, voltage, current, and frequency, of circuit components of the electric equipment system of the vehicle body.

5. The practical training platform's base frame is made in steel and the surface is paint-coated. Self-retention wheels are installed to ensure that the platform is flexible, reliable and endurable.

6. Fault setting and appraisal system (see fault setting and appraisal Features).

7. Mobile device with locking casters, move freely, to facilitate teaching.

Training Content

1. Automobile line connection between each terminal device project training;

2. Automobile line each terminal element voltage, resistance, signal detection project training;

3. Automobile lines interpret blueprints, knowledge map project training;

4. Automobile line fault diagnosis and confirmation project training;

5. Automobile line fault set and exclusions training;

6. Automobile line wiring connections and theory test project training.


Technique feature

1. Bracket adoped imported luxury car paint, sprayed at high temperatures, with anti-corrosion function.

2. Support frame material select GB high quality square tube (40 * 60 * 3mm) welding.

3. Dimensions: . 2000 × 1250 × 860mm.


Packaging And Delivery Details:
Packaging Detail:
1). Packaging for training kit: Plastic package + carton + plywood pallets
2). Packaging for training equipment: Plastic package + plywood pallet
Delivery Detail: 40 to 50 days after Received advanced payment.

After-Service And Training for Foreign User

1) For our exported equipments, the Warranty is one year, within one year, if there is any problem for spare parts(except damage by man-made) We can supply and replace free of charge. And if after one year, we also supply the service. The difference is user need to pay it.

2) We dispatch our professional and experienced engineer to install equipments and make training for th
