Product Specifications
| Prod Model: |
SC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

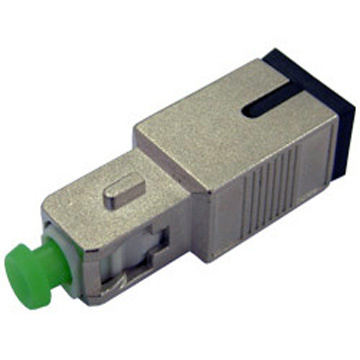

Fiber optic attenuators are used to reduce or balance the power of the light transmitted from one device to another devicein in the fiber optic network. They can control the output of the fiber light power level
Characteristics:
- Attenuates continuously and precisely from 1240nm ~ 1620nm- Low PDL- Low return loss- UPC and APC polishing optional- FC, SC, ST, LC, MU, MT-RJ, E2000 types optional Applications
Application:
- Telecommunication networks- CATV
- Data processing networks
- Test equipments <>
- Active device/Transceiver
|
PARAMETER |
UNIT |
FIXED ATTENUATORS |
VARIABLE ATTENUATORS |
|
Operation wavelength |
nm |
1310,1550 |
1200-1600 |
|
Attenuation Value |
dB |
±0.5dB (<10dB)
±1.0dB (>10dB) |
0-30 |
|
Max. Optical Input Power |
MW |
500 |
500 |
|
Max. PDI |
dB |
≤0.1 |
≤0.1 |
|
Return Loss |
dB |
PC |
≥45 |
|
|
UPC |
≥55 |
|
|
APC |
≥60 |
|
Operating Temperature |
|
-30~+75 |
-30~+75 |
|
Storage Temperature |
|
-40~+85 |
-40~+85 |
