Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

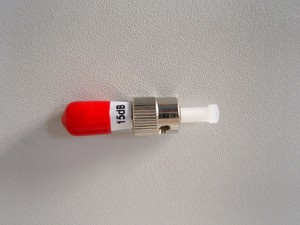

Fiber optic attenuators are used to reduce or balance the power of the light transmitted from one device to another devicein in the fiber optic network. They can control the output of the fiber light power level
Characteristics:
- Attenuates continuously and precisely from 1240nm ~ 1620nm- Low PDL- Low return loss- UPC and APC polishing optional- FC, SC, ST, LC, MU, MT-RJ, E2000 types optional Applications
Application:
- Telecommunication networks- CATV
- Data processing networks
- Test equipments <>
- Active device/Transceiver
|
PARAMETER |
UNIT |
FIXED ATTENUATORS(FC/SC/ST/LC) |
VARIABLE ATTENUATORS |
|
(FC/SC) |
|
Operation wavelength |
nm |
13,101,550 |
1200-1600 |
|
Attenuation Value |
dB |
±0.5dB (<10dB) |
0-30 |
|
±1.0dB (>10dB) |
|
Max. Optical Input Power |
MW |
500 |
500 |
|
Max. PDI |
dB |
≤0.1 |
≤0.1 |
|
Return Loss |
dB |
PC |
≥45 |
|
|
|
UPC |
≥55 |
|
|
|
APC |
≥60 |
|
|
Operating Temperature |
|
-30~+75 |
-30~+75 |
|
Storage Temperature |
|
-40~+85 |
-40~+85 |
Shenzhen netcom technology Co., Ltd, is a highly professional and fast-developing company of Passive & Active Optical Components and FTTH system, and the factory is located in beautiful coastal industrial city-Shenzhen, China.
We provide Fiber media converter, Optical Transceiver, PLC Splitter, FBT Couplers, Fiber Optic Patch Cord, Fiber Optic Attenuator, Adapter, Connectors etc...
These years, SZ NetCom is always devoted to achieve "Quality First, Customers First" and Competitive price for the clients. All SZ NetCom's products are designed and tested to seriously meet the International Standards of Telcordia & RoHS Compliance.
Our professional R&D team and production team have excellent knowledge and work experience. We do believe that knowledge is power. We are dedicated to fulfill the needs of our customers by offering high quality products as well as prompt and reliable services.
If you are interested in any of our products, please don't hesitate to contact us. We look forwarding to cooperating with you.
