Product Specifications
| Prod Model: |
QD210D-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Low Noise |
| Material: |
Copper |
| Drive Mode: |
Electric |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Type: |
Piston |
| Lubrication Style: |
Lubricated |
| Piston Type: |
Closed |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
High efficiency
Low vibration
Good reliability
COP is 1.2
CSR Motor
Cooling type F
QD210D has passed CCC certification
Low Back Pressure
Compressor should be stored in a dry and drafty place.
Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd is one of the subsidiaries of Hangzhou Qianjiang Refrigeration Group Co., Ltd, specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. The productive capacity and sales volume of compressors have continuously ranked at the third place in Chinese refrigeration industry for the past four years.
Nowadays, we produce 10 series of compressors and more than 100 models available (V series, N series, J series, WS series, WQ series, VFC series, SC series, TK series, etc. ), whose power range from 1/12 to 3 horse, including the refrigerant R600a, R134a, R404a, R406a, R22 and R290. The characteristics of all products are high efficiency, high reliability, low noise level, low vibration level, low starting voltage, strong load capability, long life, etc.
Professional R&D team, professional R&D equipment to ensure the research and development of products meeting various customer demands!

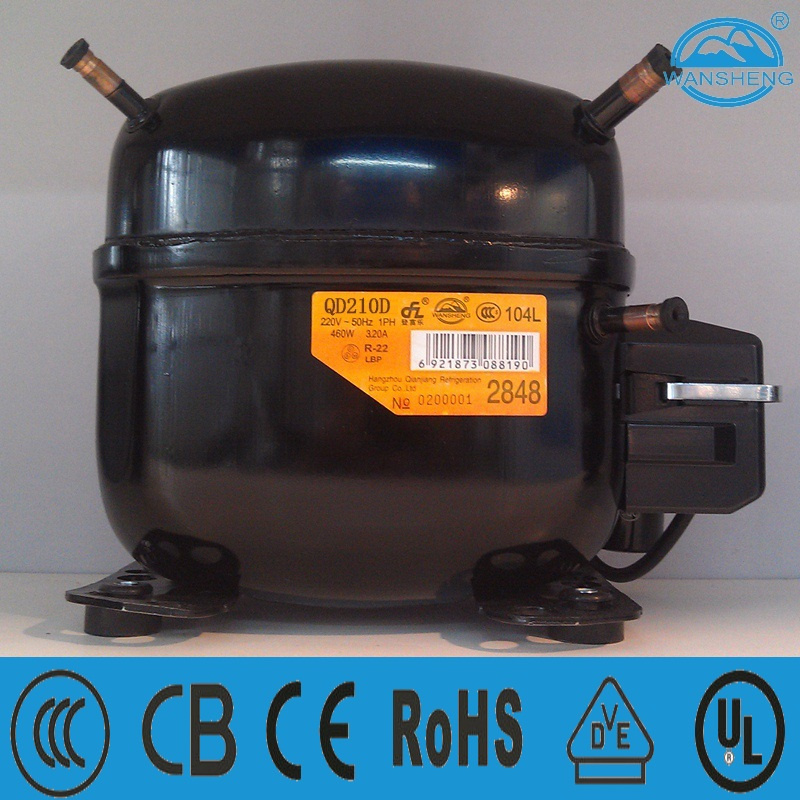

SC series QD210D use R22 refrigerant
Good price and service provided for the compressor QD210D
Starting device is Starting Relay
Frequency only for 50HZ
Voltage application from 220 to 240V
Application in large and medium-sized refrigerator, freezer, etc.
R22 WANSHENG Low Back Pressure (LBP) Compressor
|
Test Conditions | LBP ASHRAE | Subcooling Temp.: 32.2°C |
| Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction Temp.: 32.2°C |
Model |
Power Supply
(V/Hz) |
Nominal Power
(HP) |
Cooling Capacity
(W) |
COP Power Efficiency
COP (W/W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
| SC Series 220-240V~50Hz |
| QD210D | 220-240V~50Hz | 3/4 | 790 | 1.20 | CSR | Voltage | 80 | 10 | F2 |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
