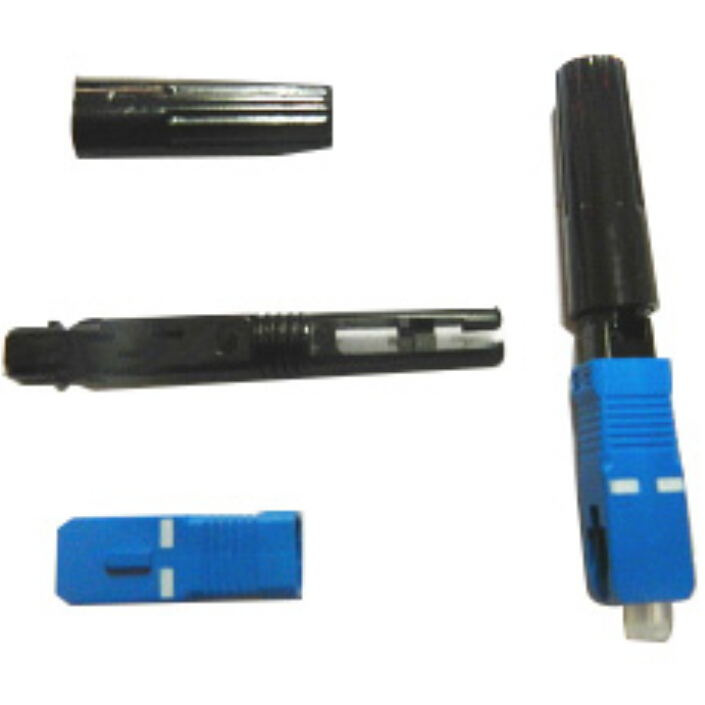

Sc Upc Fiber Optic Fast Connector
Product Specifications
| Prod Model: |
TK-SC/UPC -1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe |
| Fiber Mode: |
Single Mode |
| Insertion Loss: |
≤0.25 (1310nm &1550nm) |
| Connector Application: |
FTTH Drop Cable Connection |
| Connector: |
Sc Upc Fast Connector |
| Lead Time: |
2 to 3 Days |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description
Sc Upc Fiber Optic Fast Connector
Application:
FTTX
Telecommunication Network
WAN and LAN
Active Device Termination
Features:
Precision Mechanical
Easy installation
Low Insertion Loss
High Back Reflection Loss
Item | Parameter |
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.25dB(1310nm & 1550nm) |
| Return Loss | ≤ -45dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tensile Strength | >5 N |
| Tighten Strength of Coating | >10 N |
| Temperature | -40~+85°C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB
|
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 100 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
