Product Specifications

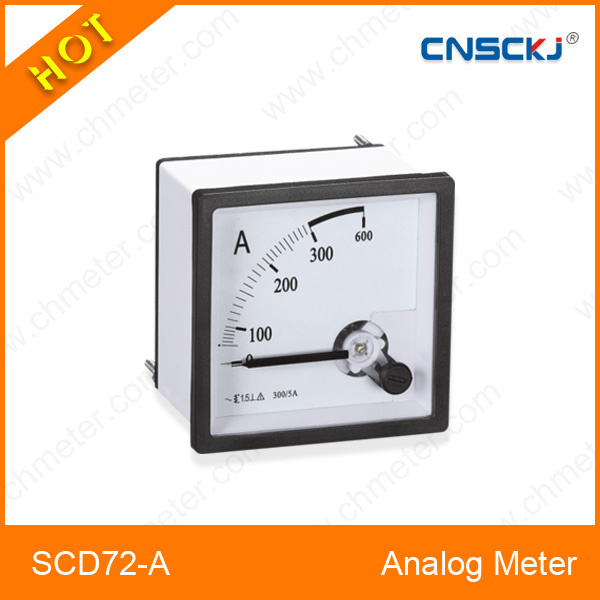

| Prod Model: |
SCD72 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
72*72mm |
| Theory: |
Electronic Meter |
| Display: |
Indicator |
| Power Source: |
AC and DC |
| Installation: |
General Installation Meter |
| Usage: |
Voltage Measurement |
Product Description
Uses and applications:
This series of meters is a direct imitation of power measurement display instruments, measuring DC current and voltage, AC current and voltage, frequency, power factor, phase sequence, power, synchronization instructions and other non-power measurements. It has been widely used in a variety of AC and DC transmission and distribution systems, power control panels and other electrical devices, in the industries of maritime shipping, rail transport, chemical flameproof, low voltage equipment, construction equipment, generators, machinery equipment, etc. Being able to make electrical measurement and non-power measurement, it is a high-end instrument applied in general environmental conditions.
Standards and certifications:
The Jingying series of pointer meter is produced on the standard of GB/T7676-1998, and the digital meter is on the standard of GB/T22264-2008. Its safety performance is on the standard of GB4793 and IEC61010. The dial scale line and the pointer is designed to meet the German standards of DIN43790 and DIN43802. The shape and hole size of the meter is on the standards of GB/T1242 and IEC61554. All the products of Jingying meters Company have gone through the national CE certification, and have got ISO: 9001 certification.
Name
|
Common scale(measure range)
|
NOTE
|
Ac ammeter
|
A
|
0.5-50A*1T1 10A-200A
|
Directly switch on
|
10/5A-800/5A
|
Switch on second current through current transformer
|
KA
|
1KA-10KA
|
AC voltmeter
|
V
|
10V-600V
|
Directly switch on
|
KV
|
1KV-35KV
|
100V Switch on second current through current transformer s
|
DC ammeter
|
Ua, mA
|
50ua-500uA 1Ma-500mA
|
Directly switch on
|
A
|
1A-15A
|
15A-750A
|
75Mv Buildout current divier
|
KA
|
1KA-3KA
|
DC voltmeter
|
V
|
3V-600V
|
Directly switch on
|
KV
|
1KV-3KV
|
Buidout rated resistance
|
Wenzhou CNSCKJ Meter Technology Co., Ltd. Specialized in manufacturing various digital display meter, which is member enterprise of the National Electrician instrument& Meter Standardization Committee. The products manufactured by our company strictly complied with IEC 51 publication rev4 issued by international electrician Committee and IEC1010 Standard, and meet the National Standard Requirement GB/T7676-1998. CNSCKJ company have passed through ISO9001: 2000 Certificate and CE Certificate.
(1) We are one of organizations chiefly editing the national standard, Mounted Digital Display Electric Measuring Instrument:
(2)We are involved in the edition of national standards, low-voltage Reactive Power Compensation Switching Device and General Specification for Digital Motor Combined Protection Equipment;
(3)We participate in the revision work of industrial standard, low -voltagea Reactive Power Compensation Control Device
(4) We play an essential role in editing the national standard diagram collections for electrical design, commonly-used Pump Control Circuit Diagram and Commonly-USD Blower Control Circuit Diagram, and the reference diagram collections for eletrical design, Fire-fighting Equipment Power Supply Monitoring System.
Under holding up the enterprise tenet: Survive on quality, Create brand with the credit, CNSCKJ sincerely wish friends at home and abroad to cooperate with for brilliant tomorrow!
