Product Specifications
| Prod Model: |
Pasio50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industry |
| Type: |
Elemental Analyzer |
Product Description

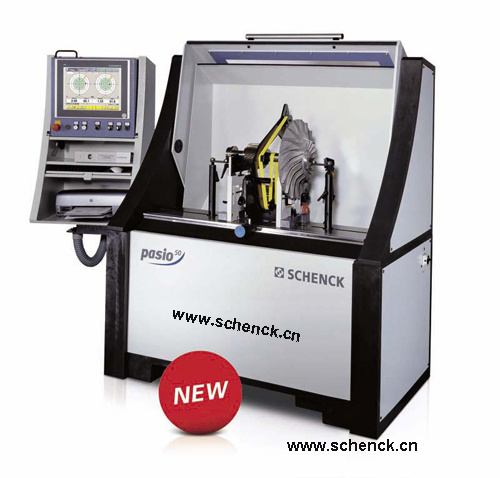

Horizontal universal balancing machine for rotors up to 50kg
Rotor can be loaded easily from above using a crane. Compact in its outer dimensions, yet lots of room for large rotors.
The belt drive can be adjusted to the correct rotor diameter in no time.
The standard angle indexing display supports you for exact balancing
Quick installation and simple implementation without foundations being necessary.
It couldnt be easier. The protective enclosure is extremely easy to open and close offers a rugged C-class protective rating.
CAB700 is universal and cost efficient basic measuring instrument for all standard balancing tasks.
CAB920, the fifth generation of digital balancing technology, provides you with perfectly balanced rotors and simple operation.
Quality documented in black and white.
Product Specification
The unique design of the PASIO50, goes beyond its simplicity and ease of use, to offer a completely new balancing system.
Some of the features are more subtle, such as the integrated C-class enclosure that has been designed for one-finger operation and free from any pinch points for smooth, trouble-free balancing and complete operator safety. Other features are more prominent, such as a unique mineral casting design to provide superior damping characteristics and improve measuring results.
A variety of new and unique featrues make the PASIO50 an ideal tool for precision balancing. The base, for example, has been completely redesigned and made of a modern mineral casting meaterial to provide superior damping characteristics up to 10 times more than cast iron and improve measuring results. The properties of the casting are perfect for unbalance measurement, and are less susceptible to interfering influences. The cast construction is also the basis for its compact design with all components easily accessible and integrated in the sturdy base.
|
Product parameters |
|
Rotor Data
|
Max. weight
|
kg
|
50
|
Max. diameter
|
mm
|
600
|
Journal bearing diameter
|
mm
|
9-63
|
Journal bearing distance
|
mm
|
40-1100
|
Min. achievable residual unbalance
|
gmm
|
1
|
Machine Data
|
Weight
|
kg
|
1100
|
Drive power
|
kw
|
1.1
|
Measuring Unit
|
|
CAB700/CAB803/CAB920
|
|
|
|
|
|
|
As a balancing machine innovator and leader, Schenck RoTec has been engaged in research and application of balancing technologies since 1881. Over 125 years of experience have LED to Schenck becoming internationally recognized and present since its original founding in Darmstadt Germany.
Schenck Shanghai Machinery Corp. Ltd. (SSM ) is a subsidiary of Schenck RoTec in Shanghai. As one of SCHENCKs global general balance equipment manufacturing bases, we reach the same peaks of design and technological prowess that SCHENCK is famous for. In order to satisfy the increasing demand of advanced balance machines for clients in China, SCHENCK and SSM actively provide them with individual product solutions, new designs and dynamic balancing machines with key parts imported from Schenck Germany (such as: The measuring unit, the pick-UPS, the bearing rollers ext. )
SCHENCK can make your balancing job more effective, faster and more economic thanks to our over one hundred and twenty five years of global balancing experience. We currently manufacture horizontal and vertical balancing machines and semi-automatic and automatic balancing machines for several high demand industries. Including; The automobile industry, the electronics industry, the aviation and space industries and the turbo and general machinery industries. Our dynamic balancing machines are also batch exported to the parent company in Germany and fellow companies in; America, Japan, Brazil, Iran, Singapore, Malaysia, Indonesia, Thailand, Vietnam, Pakistan, Egypt, Taiwan, Hong Kong, Russia, etc.
Also as an added service to you, our customers, to allow you to develop and perfect your understanding of balancing machinery, we run seminars. These seminars are run in order to get maximum performance of standard and lifetime out of your machines.
