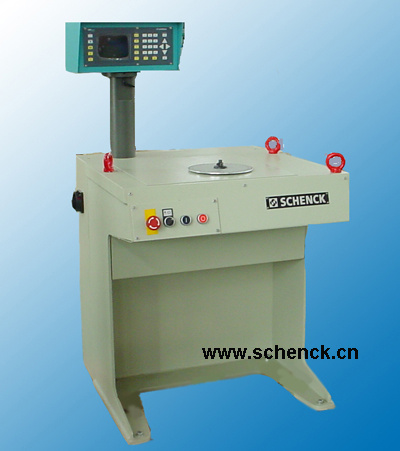

High accuracy soft bearing balancing machine
SCHENCK soft bearing construction
Advanced SCHENCK CAB700 measuring unit
One-plane and two-plane balancing
Electronic angle indexing
Product Specification
Range of application
Measurement of unbalance in disc-shaped rotors without their own shaft.
Design
SCHENCK special high accuracy construction with advanced SCHENCK CAB700 measuring unit, to meet high requirement of small rotors.
Electronic angle indexing to make the operator. S work more accurate and convenient.
|
Product parameters |
|
Technical data
|
|
RV1-3
|
RV2-3
|
Rotor weight(including tooling)
|
kg
|
max. 3
|
max. 3
|
Rotor diameter
|
mm
|
max. 250
|
max. 250
|
Measuring plane
|
|
one plane
|
one and two planes
|
Measuring uncertainty
|
gmm
|
0.2-0.5
|
0.3-1.0
|
|
As a balancing machine innovator and leader, Schenck RoTec has been engaged in research and application of balancing technologies since 1881. Over 125 years of experience have LED to Schenck becoming internationally recognized and present since its original founding in Darmstadt Germany.
Schenck Shanghai Machinery Corp. Ltd. (SSM ) is a subsidiary of Schenck RoTec in Shanghai. As one of SCHENCKs global general balance equipment manufacturing bases, we reach the same peaks of design and technological prowess that SCHENCK is famous for. In order to satisfy the increasing demand of advanced balance machines for clients in China, SCHENCK and SSM actively provide them with individual product solutions, new designs and dynamic balancing machines with key parts imported from Schenck Germany (such as: The measuring unit, the pick-UPS, the bearing rollers ext. )
SCHENCK can make your balancing job more effective, faster and more economic thanks to our over one hundred and twenty five years of global balancing experience. We currently manufacture horizontal and vertical balancing machines and semi-automatic and automatic balancing machines for several high demand industries. Including; The automobile industry, the electronics industry, the aviation and space industries and the turbo and general machinery industries. Our dynamic balancing machines are also batch exported to the parent company in Germany and fellow companies in; America, Japan, Brazil, Iran, Singapore, Malaysia, Indonesia, Thailand, Vietnam, Pakistan, Egypt, Taiwan, Hong Kong, Russia, etc.
Also as an added service to you, our customers, to allow you to develop and perfect your understanding of balancing machinery, we run seminars. These seminars are run in order to get maximum performance of standard and lifetime out of your machines.
