Product Specifications
| Prod Model: |
AB Comfort |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industry |
| Type: |
Elemental Analyzer |
Product Description
Horizontal balancing machine for Electric Armature
High measuring accuracy and efficiency
Automatic measuring run
Automatic indexing
Integral slot counter as option
CAB700 measuring instrument for dynamic balancing
Over slung or under slung belt drive optional
Ergonomic workplace design for standing or seated operator
Product Specification
Range of application
AB Comfort balancing machinery were developed in close cooperation with manufactures of electric armatures with the objective of designing a manually operated machine which is not only suited to operation in production environment, but also efficient, easy to operate and attractively priced.
AB Comfort, with its unique functions, was tailored to the requirements of electric motor manufactures for balancing electric armatures. With its horizontal, hard-bearing design the machine is suitable for rotors up to 310 mm in length weighing up to 5 kg.
Various drive and rotor mounting systems are available enabling the machine to be adapted easily to the properties of the rotor to be balanced by the operator. After mounting the rotor, all the operator needs to do is start the automatic measuring sequence. AB Comfort will then automatically measure the rotors unbalance, retain the measurement values and index the rotor to the exact position at which unbalance correction has to be performed.
Special features

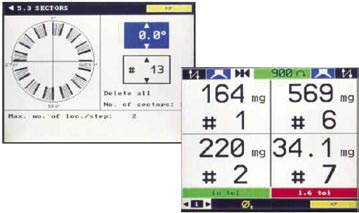

To optimize the balancing process, AB Comfort comes equipped with the CAB700 measuring instrumentation as part of the standard equipment, enabling highly precise balancing results to be achieved with only a few operating steps. To establish a phase and speed reference, the machine can be upgraded with an integral slot counter, providing more accurate measurement results compared to the conventional measurement by means of a photoelectric cell.
In addition the CAB700 includes a component correction function, enabling unbalance correction to be performed directly at the pole head or any other suitable balancing location. AB Comfort is an easy-to-operate, attractively priced and fast solution for balancing electric armatures.
Technical data at a glance
|
AB Comfort
|
Maximum rotor weight with roller bearing inserts
|
5 kg
|
Maximum rotor weight with V-blocks
|
2.5kg
|
Bearing center distance, max.
|
310mm
|
Bearing center distance (belt drive outside bearing pedestals)
|
Max. 15 mm
|
Bearing center distance (belt drive between bearing pedestals)
|
Min. 36 mm
|
Free rotor diameter above machine bed
|
300mm
|
Bearing journal diameter on roller carriages
|
5-22mm
|
Bearing journal diameter on V-blocks
|
2-22mm
|
Drive diameter of drive belt
|
20-120mm
|
Balancing speed
|
960/1440/2280 1/min
|
Minimum achievable residual unbalance per plane
|
0.2gmm
|
Unbalance reduction ratio
|
95% |
As a balancing machine innovator and leader, Schenck RoTec has been engaged in research and application of balancing technologies since 1881. Over 125 years of experience have LED to Schenck becoming internationally recognized and present since its original founding in Darmstadt Germany.
Schenck Shanghai Machinery Corp. Ltd. (SSM ) is a subsidiary of Schenck RoTec in Shanghai. As one of SCHENCKs global general balance equipment manufacturing bases, we reach the same peaks of design and technological prowess that SCHENCK is famous for. In order to satisfy the increasing demand of advanced balance machines for clients in China, SCHENCK and SSM actively provide them with individual product solutions, new designs and dynamic balancing machines with key parts imported from Schenck Germany (such as: The measuring unit, the pick-UPS, the bearing rollers ext. )
SCHENCK can make your balancing job more effective, faster and more economic thanks to our over one hundred and twenty five years of global balancing experience. We currently manufacture horizontal and vertical balancing machines and semi-automatic and automatic balancing machines for several high demand industries. Including; The automobile industry, the electronics industry, the aviation and space industries and the turbo and general machinery industries. Our dynamic balancing machines are also batch exported to the parent company in Germany and fellow companies in; America, Japan, Brazil, Iran, Singapore, Malaysia, Indonesia, Thailand, Vietnam, Pakistan, Egypt, Taiwan, Hong Kong, Russia, etc.
Also as an added service to you, our customers, to allow you to develop and perfect your understanding of balancing machinery, we run seminars. These seminars are run in order to get maximum performance of standard and lifetime out of your machines.
